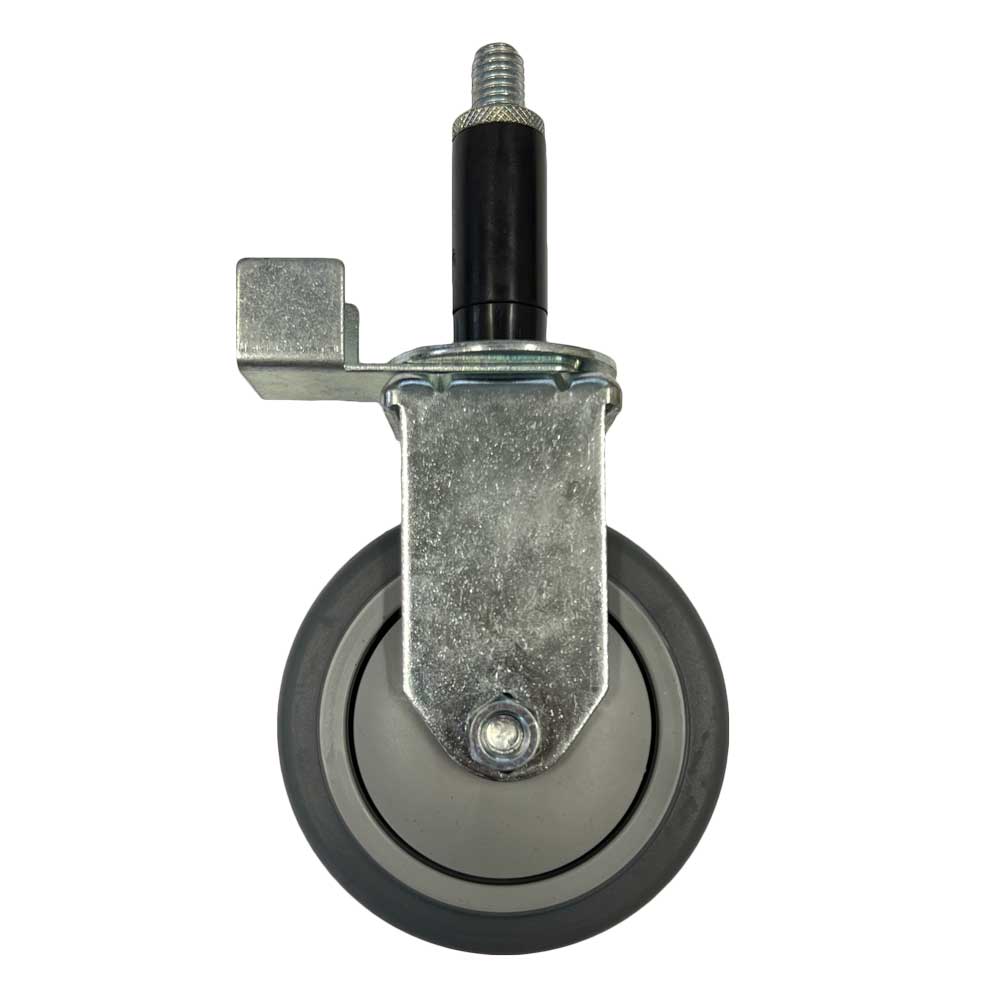

4" x 1.25" Creform Rigid Stem Caster with Thermo-Pro® Ball Bearing Wheel
Part #: 22TP472YY
Stem: 7/8" - .852-.919 x 2.75"
Wheel Diameter: 4.00"
Tread Width: 1.25"
Capacity: 250 lb
FREE SHIPPING on all orders over $250.00 in the contiguous U.S.
Specifications
| Caster Fastener | |
|---|---|
| Caster Type | |
| Stem Size | |
| Wheel Diameter | |
| Tread Width | |
| Wheel Name | |
| Wheel Core Material | |
| Wheel Tread Material | |
| Wheel Durometer | Shore A 75 (+/-5) |
| Wheel Bearing | |
| Wheel Color | |
| Non-marking Tread | |
| Overall Height | 5" |
| Load Capacity | 250 lb |
| Caster Brand |
Description
Our Creform® Stem Series offers several casters that mount directly to Creform® pipes.
This caster features a 4.00″ Thermo-Rubber wheel with sealed precision ball bearings.
The Thermo-Pro wheel is a non-marking grey thermal rubber bonded to a polyolefin core. Resistant to cleaning chemicals, acids, alcohol and water. Used in many hospitals, seafood plants and restaurants, normally where there is either food preperation or delivery. Also a favorite choice for industrial linen facilities.
Stem Drawing
Click on the image below to open the drawing file.
Different Stem Options
Casters with the same dimensions but different mounting stem.
