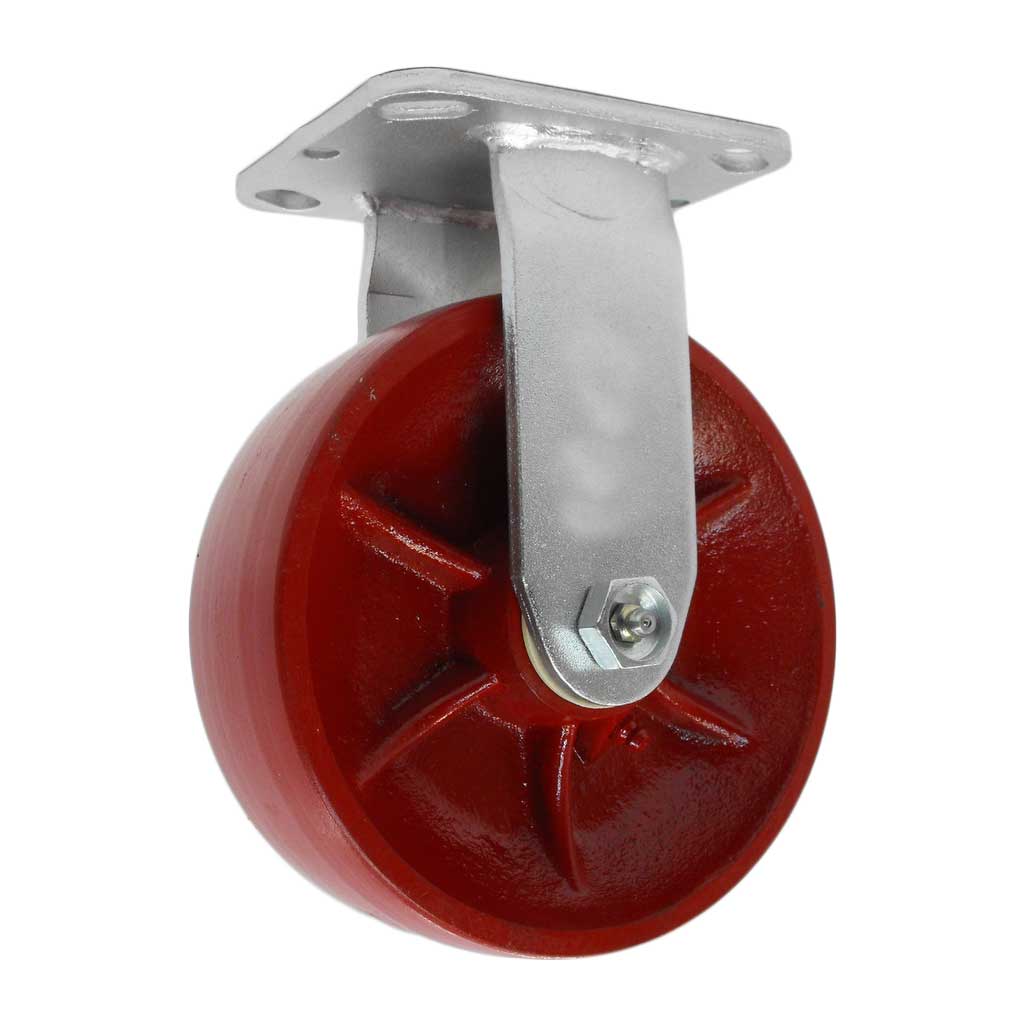

8" x 2" Rigid Plate Caster with Crowned Ductile Steel (CD) Roller Bearing Wheel
Part #: 28CD80JR0417YY
Top Plate: 4" x 4-1/2"
Wheel Diameter: 8.00"
Tread Width: 2.00"
Capacity: 1,250 lb
FREE SHIPPING on all orders over $250.00 in the contiguous U.S.
Specifications
| Caster Fastener | |
|---|---|
| Caster Type | |
| Top Plate Size | |
| Bolt Hole Pattern | |
| Wheel Diameter | |
| Tread Width | |
| Wheel Name | |
| Tread Profile | |
| Wheel Core Material | |
| Wheel Tread Material | |
| Wheel Hardness | 45,000 PSI |
| Wheel Bearing | |
| Wheel Color | |
| Non-marking Tread | |
| Overall Height | 9-1/2" |
| Load Capacity | 1,250 lb |
| Caster Brand |
Description
Crowned Ductile Steel (Energy Saver Ductile) wheel features a crowned tread that rolls and maneuvers better than flat tread wheels. Ductile steel is a composed of a combination of special alloys that give it higher weight capacities than cast iron; while being more economical than drop forged steel. Also referred to as malleable iron; material may flex rather than cracking or breaking when submitted to an extreme shock load. Features an extra thick walled, heavy-duty core, hub and tread face. Roller bearings are standard, with precision & tapered bearings as an option.
Idea for use on rough surfaces and has good rolling resistance under any condition.
The 27/28/DT/FT medium duty series is one of our most popular series of casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters with capacities up to 1,250 lb. These casters use a 2″ wide wheel as standard.
Top Plate Drawing
Click on the image below to open the drawing file.
Matching Casters
Casters that can be used together on the same application.
-

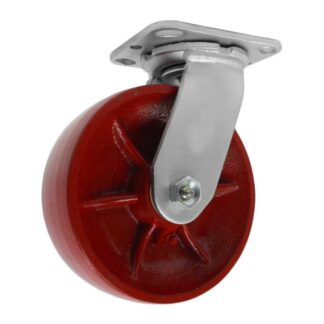

8″ x 2″ Swivel Plate Caster with Crowned Ductile Steel (CD) Roller Bearing Wheel
