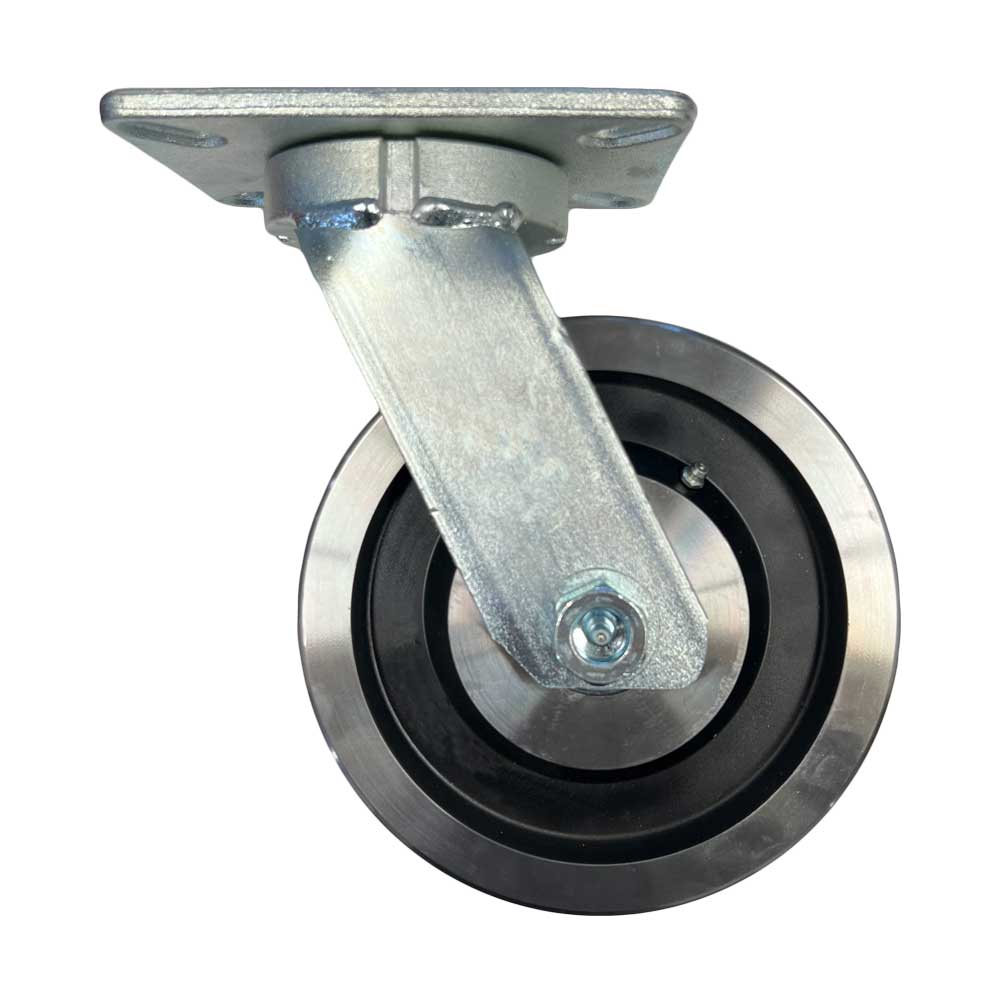

6" x 3" Swivel Plate Caster with Forged Steel (FS) Roller Bearing Wheel
Part #: E6FS60LS2425YY
Top Plate: 5-1/4" x 7-1/4"
Wheel Diameter: 6.00"
Tread Width: 3.00"
Capacity: 6,000 lb
FREE SHIPPING on all orders over $250.00 in the contiguous U.S.
Specifications
| Caster Fastener | |
|---|---|
| Caster Type | |
| Top Plate Size | |
| Bolt Hole Pattern | |
| Wheel Diameter | |
| Tread Width | |
| Wheel Name | |
| Wheel Core Material | |
| Wheel Tread Material | |
| Wheel Hardness | Rockwell 80 B |
| Wheel Bearing | |
| Wheel Color | |
| Non-marking Tread | |
| Overall Height | 8" |
| Load Capacity | 6,000 lb |
| Caster Brand |
Description
Our Forged Steel wheels are drop forged from ASTM1045 high carbon steel. The forging process results in a increased ductility and tensile strength by enhancing the metals grain structure. They feature a tensile strength of 60,000 PSI and a hardness of Rockwell 80 B. These wheels can withstand tempuratures up to 1,300 degrees fahrenheit.
The casters in our E6/62 Kingpinless Series are heavy duty and forged, with capacities up to 6,000 lb.The series offers matching swivel and rigid casters constructed with 5/16″ thick swivel head from hot forged ASTM1045 steel. The legs are 3/8″ thick and the axle used is 3/4″ thick making these casters hold up to the toughest of jobs. The swivel casters feature a 3′ precisely machined kingpinless raceway of 1/2″ ball bearings.
Top Plate Drawing
Click on the image below to open the drawing file.
