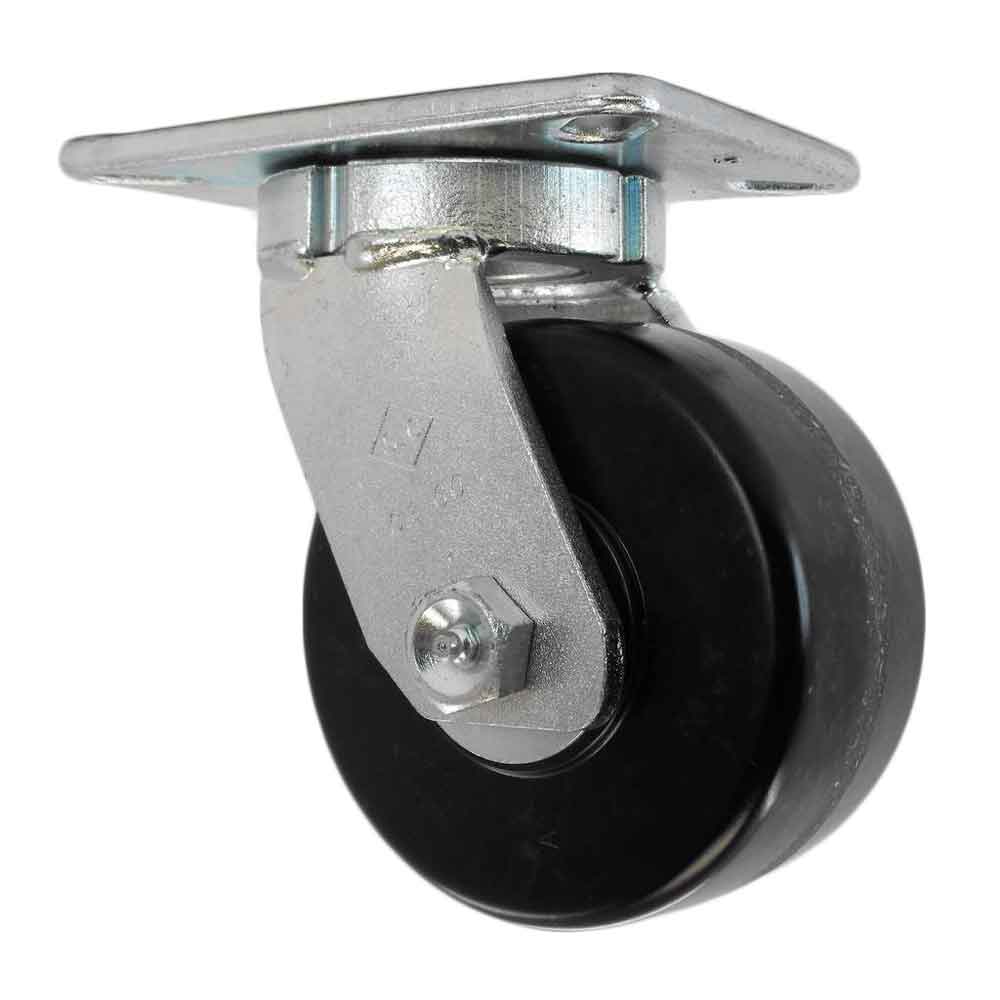

10" x 3" Swivel Plate Caster with Phenolic (PH) Roller Bearing Wheel
Part #: E6PH10LB2425YY
Top Plate: 5-1/4" x 7-1/4"
Wheel Diameter: 10.00"
Tread Width: 3.00"
Capacity: 2,900 lb
FREE SHIPPING on all orders over $250.00 in the contiguous U.S.
Specifications
| Caster Fastener | |
|---|---|
| Caster Type | |
| Top Plate Size | |
| Bolt Hole Pattern | |
| Wheel Diameter | |
| Tread Width | |
| Wheel Name | |
| Wheel Core Material | |
| Wheel Tread Material | |
| Wheel Durometer | Shore D 90 (+/-5) |
| Wheel Bearing | |
| Wheel Color | |
| Non-marking Tread | |
| Overall Height | 12-1/2" |
| Load Capacity | 2,900 lb |
| Caster Brand |
Description
Our Phenolic wheels are composed of phenolic resin mixed with macerated canvas. This mixture creates a high capacity and high impact resistant wheel. Phenolic wheels have decades of proven reliability in the industry. Hard tread rolls easily, provides good concrete floor protection and is quieter than steel wheels. Resistant to oil, grease and solvents. Non-metallic & non-sparking.
Very popular wheel for use in manufacturing, warehouses and bakeries.
The casters in our E6/62 Kingpinless Series are heavy duty and forged, with capacities up to 6,000 lb.The series offers matching swivel and rigid casters constructed with 5/16″ thick swivel head from hot forged ASTM1045 steel. The legs are 3/8″ thick and the axle used is 3/4″ thick making these casters hold up to the toughest of jobs. The swivel casters feature a 3′ precisely machined kingpinless raceway of 1/2″ ball bearings.
Top Plate Drawing
Click on the image below to open the drawing file.
