Caster Rigs
This guide explains caster rigs, including how they are constructed, how they function, and how to select the right configuration for your application. Learn about materials, load capacities, mounting styles, and key performance factors to ensure reliable and efficient mobility in your equipment.

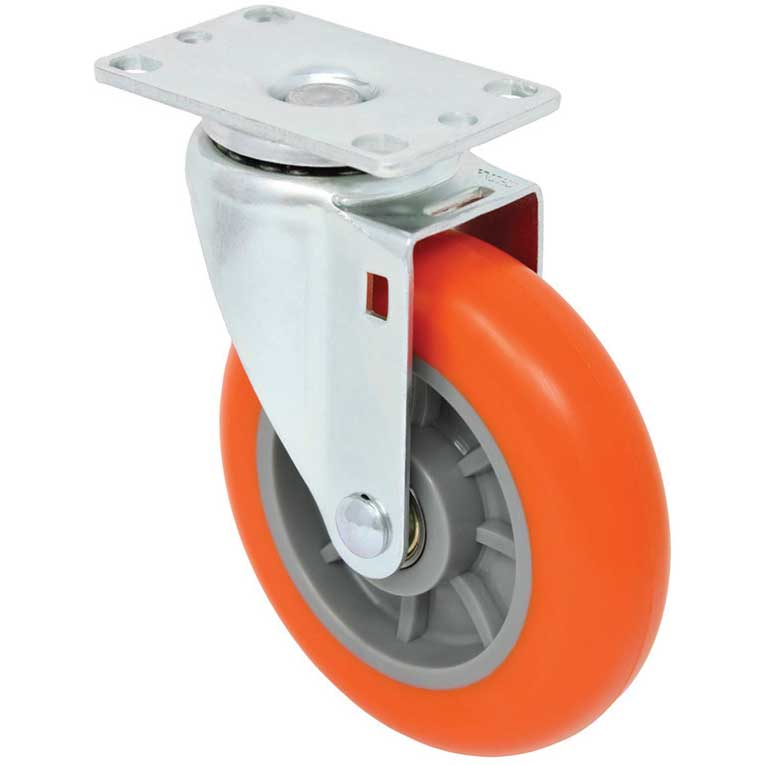

A top plate mount provides a secure, stable connection to equipment using a flat mounting surface with bolt holes. Ideal for applications requiring higher load capacity, durability, and consistent alignment.

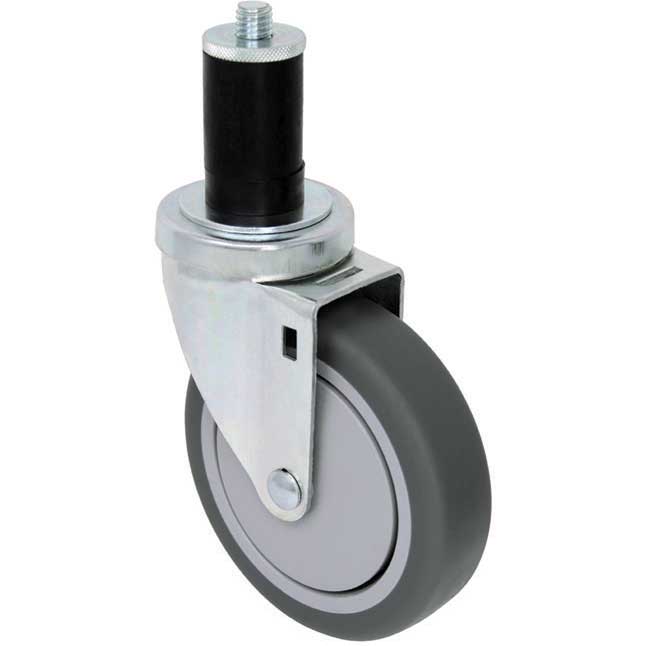

A stem mount provides a compact mounting solution that inserts directly into tubing or sockets, making it ideal for equipment with preexisting stem receivers or space-constrained applications.

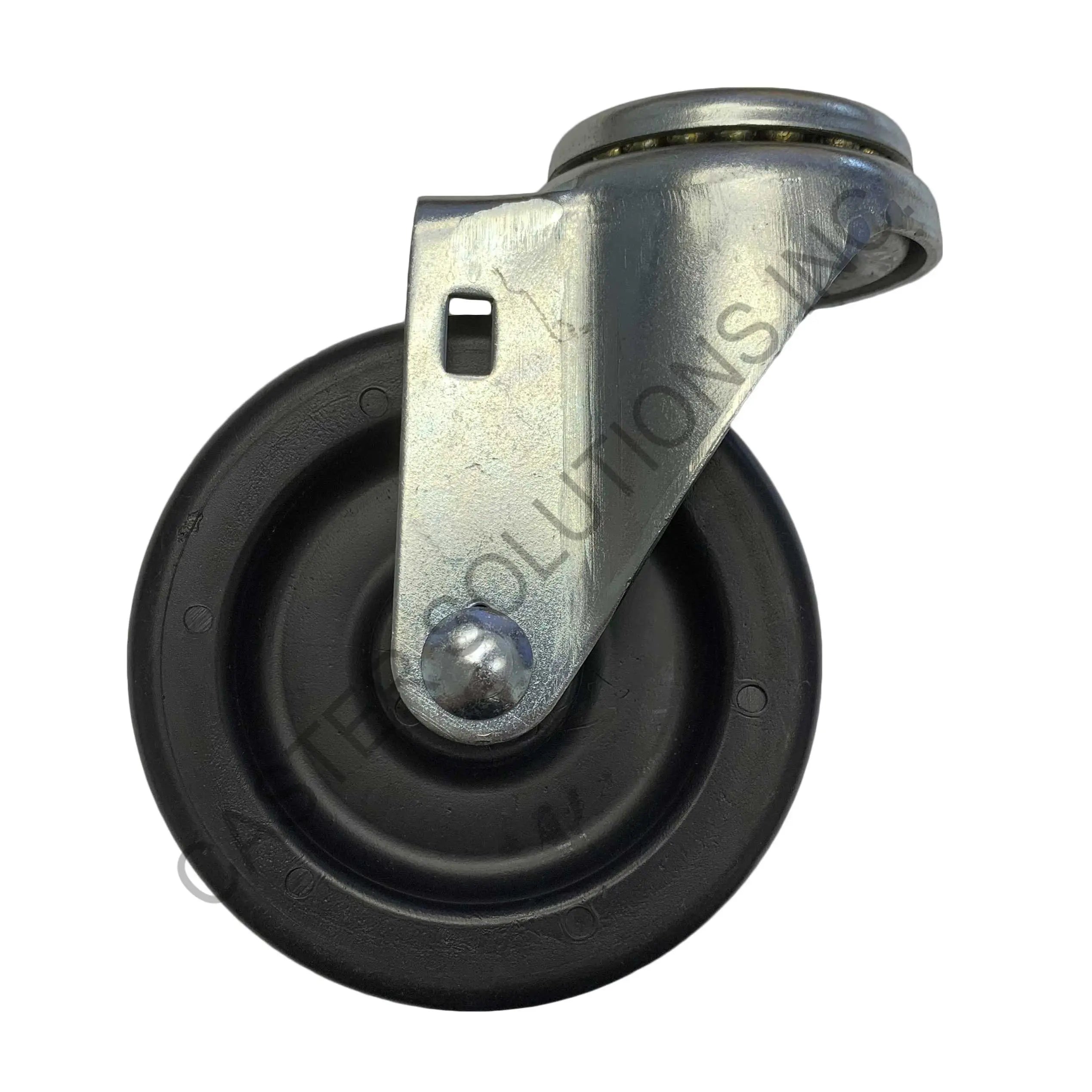

A hollow kingpin design allows for a bolt-through connection, making it ideal for applications where a custom or existing stem is required. This provides flexibility in mounting while maintaining reliable swivel performance.

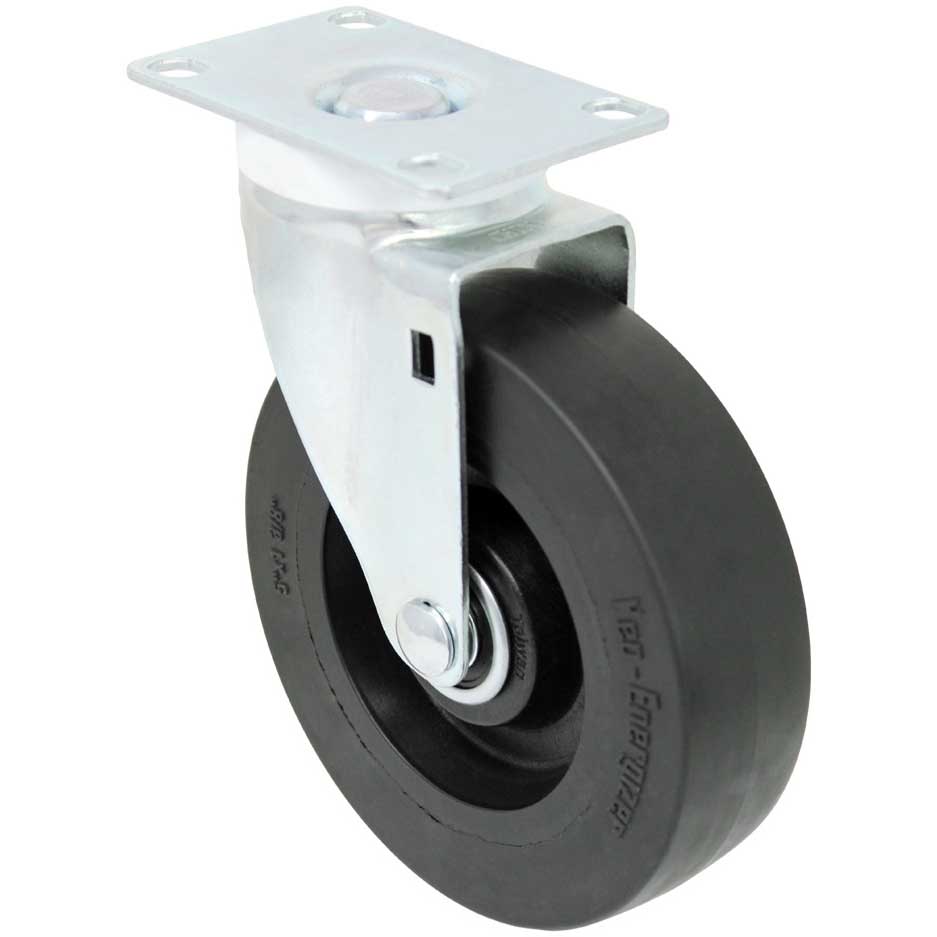

These casters have a 360-degree swiveling ability, allowing them to rotate in any direction. They are equipped with a swivel raceway, enabling smooth and effortless maneuverability. Swivel casters are ideal for situations requiring frequent changes in direction or tight turns, as they provide excellent mobility and maneuvering capabilities.

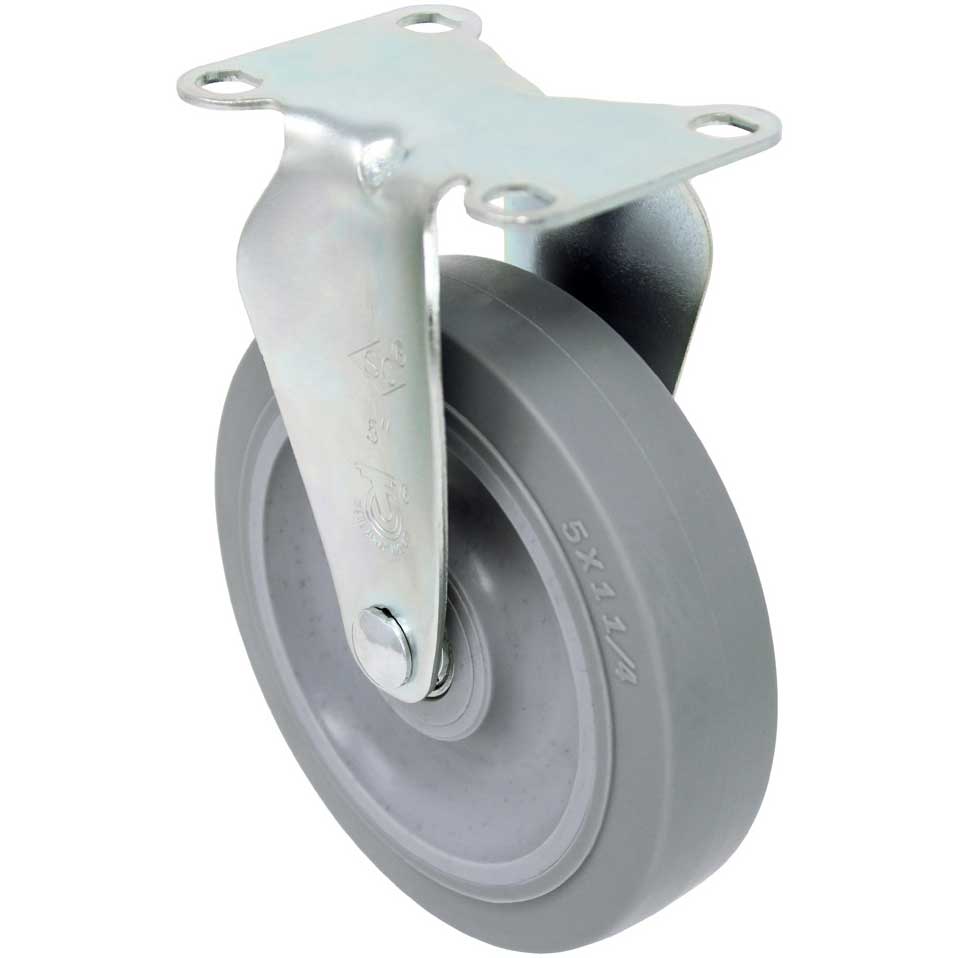

On the other hand, rigid casters are fixed-wheel mechanisms that only move in a straight line. They lack the swiveling capability of their counterparts and are designed for straightforward movements. Rigid casters provide stability and support, making them suitable for applications where consistent direction is needed, such as heavy-duty equipment or machinery.

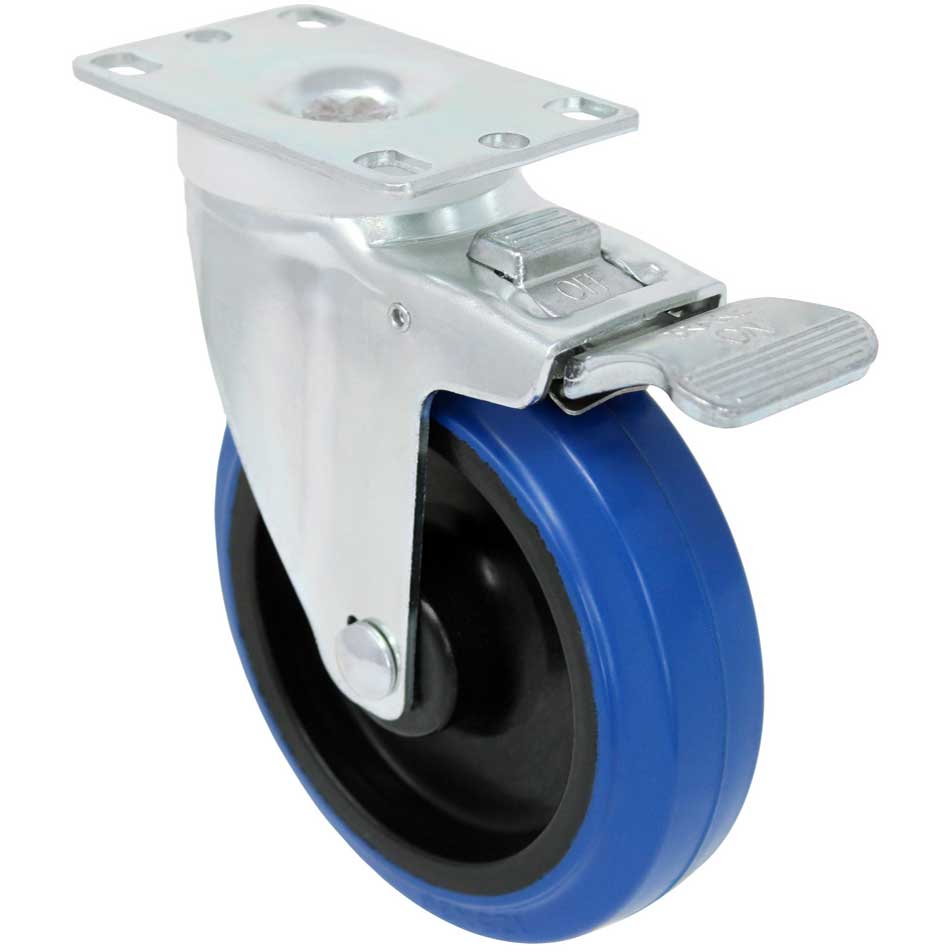

Total locking casters have the ability to swivel for easy movement when unlocked, but they can also be locked to restrict both swiveling and rolling simultaneously. Total locking casters provide stability when needed, preventing unwanted movement, and can be useful in applications where both mobility and immobilization are required, such as medical equipment or workstations that need to be securely held in place.

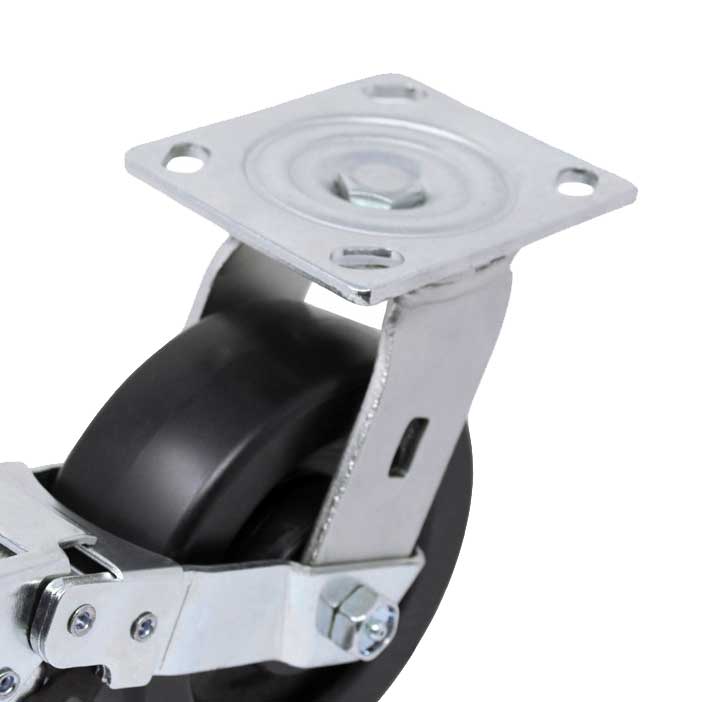

A kingpin raceway or caster is a type of swivel caster that incorporates a kingpin mechanism. The kingpin is a large, central pin that holds the caster’s swivel plate and wheel assembly together. It provides stability and strength to the caster, allowing it to handle heavy loads and withstand rough surfaces. Kingpin casters are commonly used in industrial settings.

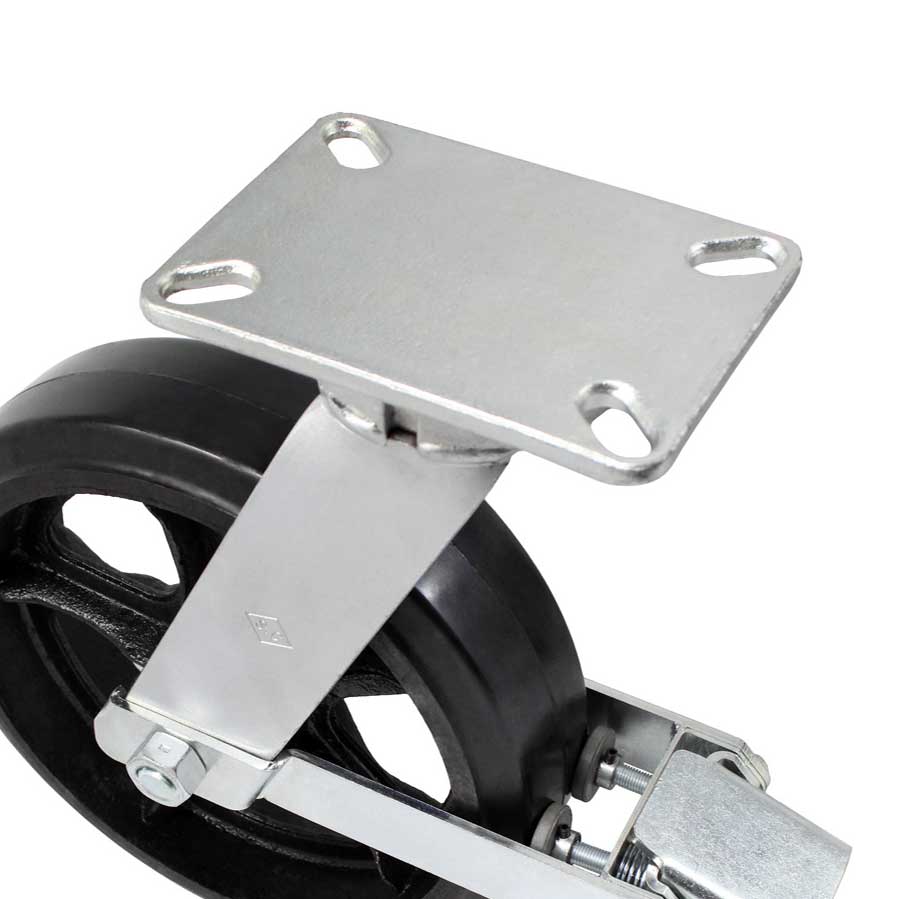

On the other hand, a kingpinless raceway or caster is a more advanced design that eliminates the traditional kingpin mechanism. Instead, it utilizes a raceway and ball bearings to enable smooth and reliable swiveling. Kingpinless casters offer enhanced maneuverability, reduced maintenance, and improved durability compared to their kingpin counterparts. They are popular in industries such as logistics, warehousing, and automotive manufacturing, where precision movement and high performance are required.
