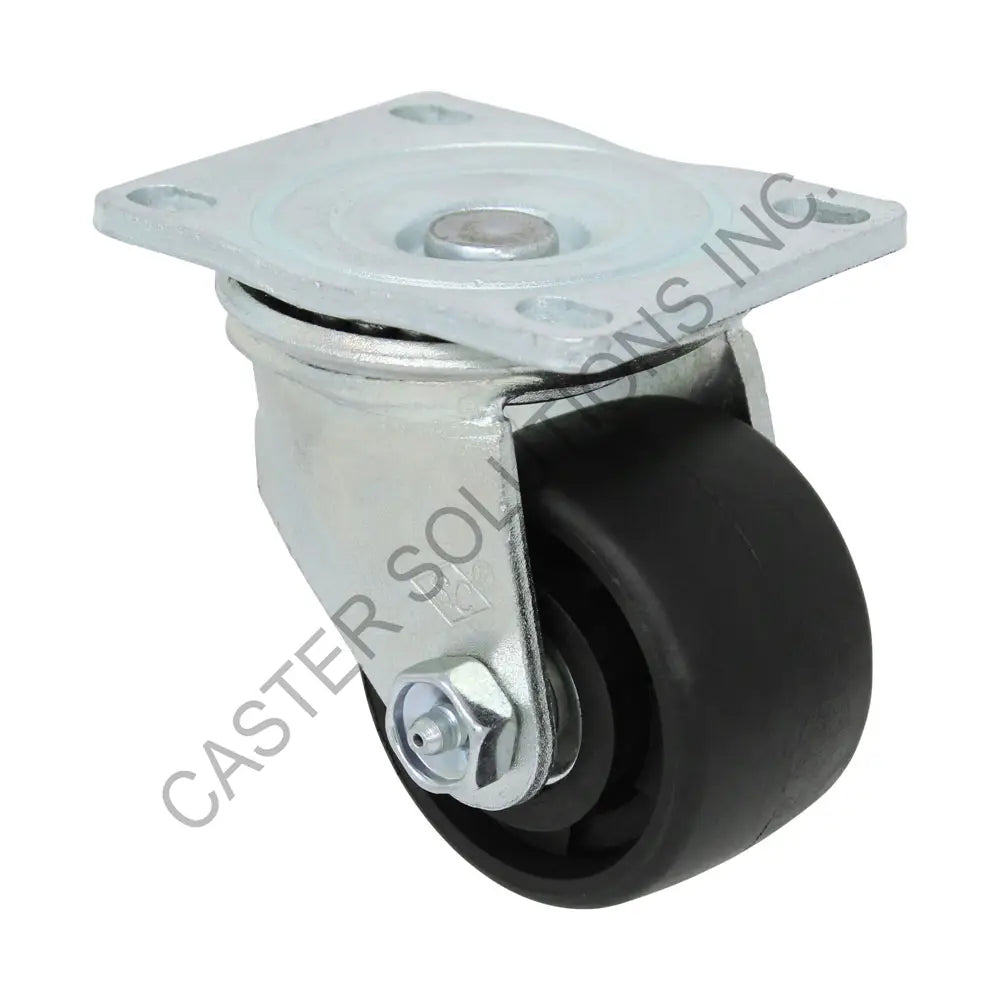

3" x 1.75" Swivel Plate Caster with MaxRok™ Wheel
Our MaxRok™ wheel is a ultra-strong injection molded glass-filled nylon wheel. Has the same weight capacity of steel, yet it's incredibly light-weight. Extreme impact strength, abrasion and compression resistance. Completely washable & steam cleanable. It's not effected by grease, oils, salt, brine, blood, as well as most chemicals and cleaning solutions.
The corrosion resistant material makes this the perfect wheel for outdoor applications. Commonly used in food processing plants and greenhouse operations.
Our 05/06 Series consists of matching low-profile swivel and rigid casters, available in both plate and stem mount options. Engineered for applications with strict overall height constraints, this series allows equipment to maintain a lower center of gravity without sacrificing load-carrying capability for its size. The compact design makes it ideal for use in tight-clearance environments where standard casters would increase overall height beyond acceptable limits.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 3.0" |
| Tread Width | 1.75" |
| Wheel Name | MaxRok™ |
| Wheel Tread Material | Glass-Filled Nylon |
| Wheel Core Material | Glass-Filled Nylon |
| Tread Profile | Crowned |
| Wheel Color | Black |
| Wheel Durometer | Shore D 85 (+/-5) |
| Bearing Type | Roller Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 4.15625" |
| Load Capacity | 1000 lb |
| Duty Rating | Light-Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
3" x 1.75" Swivel Plate Caster with MaxRok™ Wheel
05MA30IB0817YY
- 4" x 4-1/2" Plate
- Roller Bearing
- 1000 lb Cap.

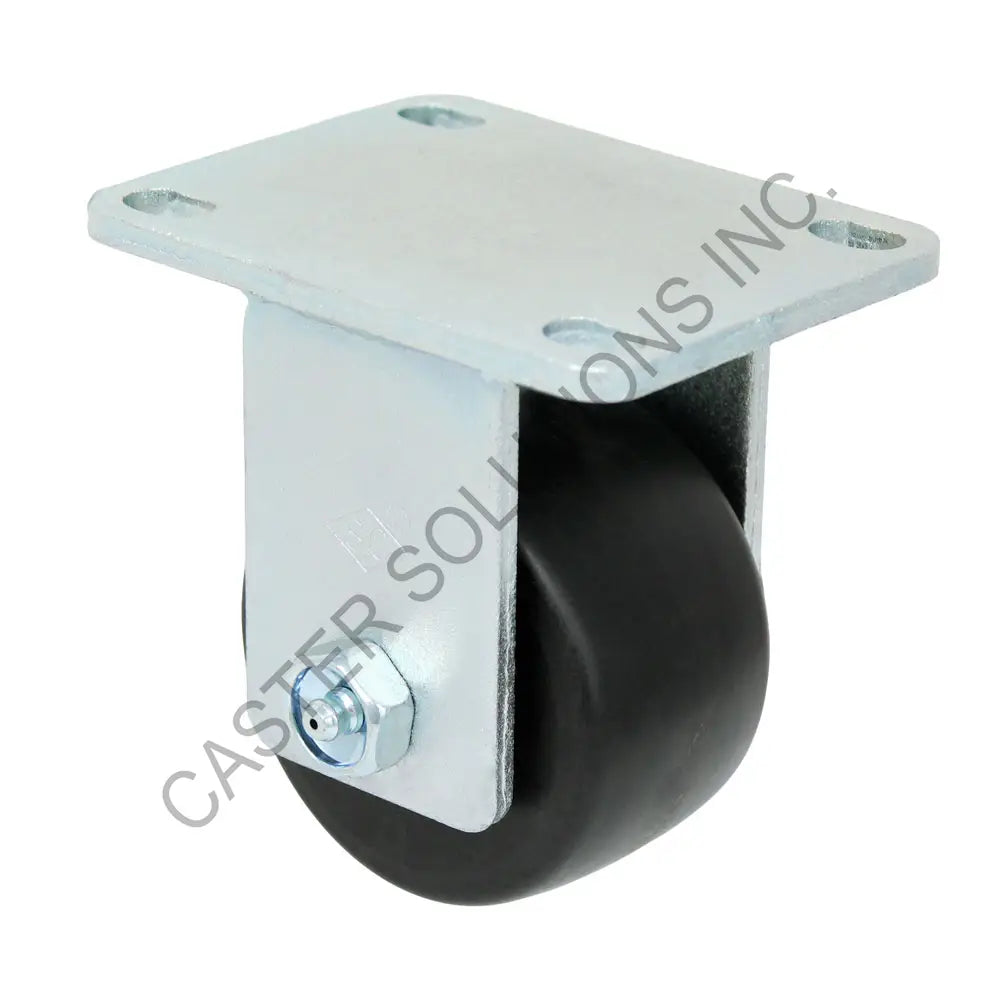

3" x 1.75" Rigid Plate Caster with MaxRok™ Wheel
