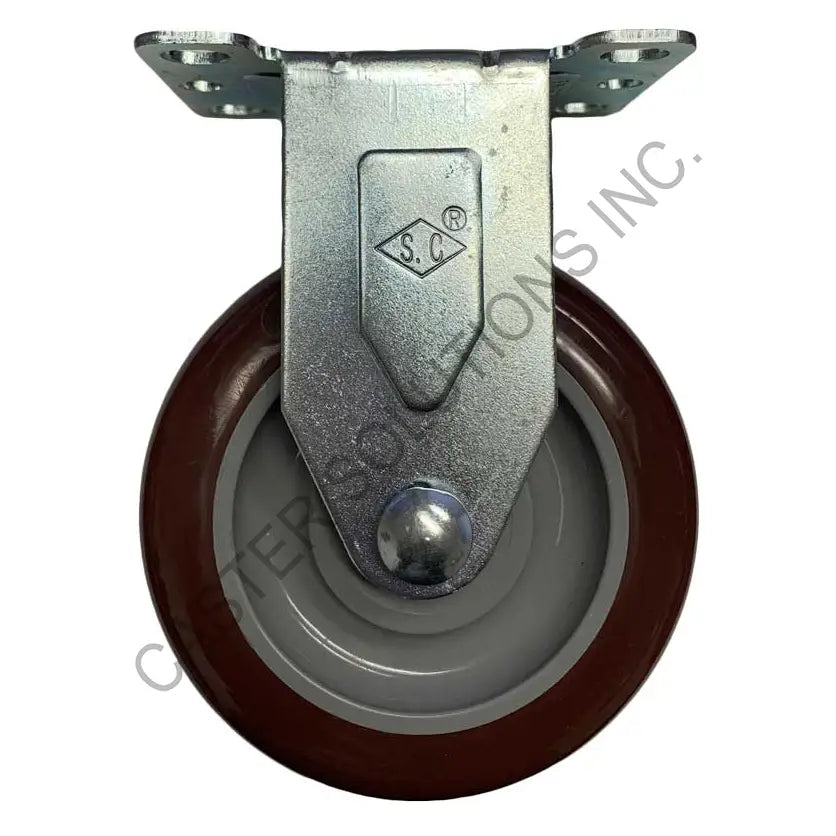

3" x 1.25" Rigid Plate Caster with Polymadic™ Wheel
The Polymadic wheel is high performance, UV resistant, slightly crowned polyurethane tread that is mechanically locked to the solid core. This design adds significant strength for loads subjected to shock impacts. The non-marking tread and sealed precision ball bearings makes this wheel very smooth rolling and quiet in operation. This wheel offers resistance to oil, grease, water and most solvents.
The 13/14 Series is arguably our most popular series of casters and in being so, offers the greatest value and availability. This series offers matching swivel and rigid casters.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" - 3" |
| Wheel Diameter | 3.0" |
| Tread Width | 1.25" |
| Wheel Name | Polymadic™ |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Polyolefin |
| Tread Profile | Flat |
| Wheel Color | Maroon |
| Wheel Durometer | Shore D 60 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 4.125" |
| Load Capacity | 300 lb |
| Duty Rating | Light-Medium Duty |
