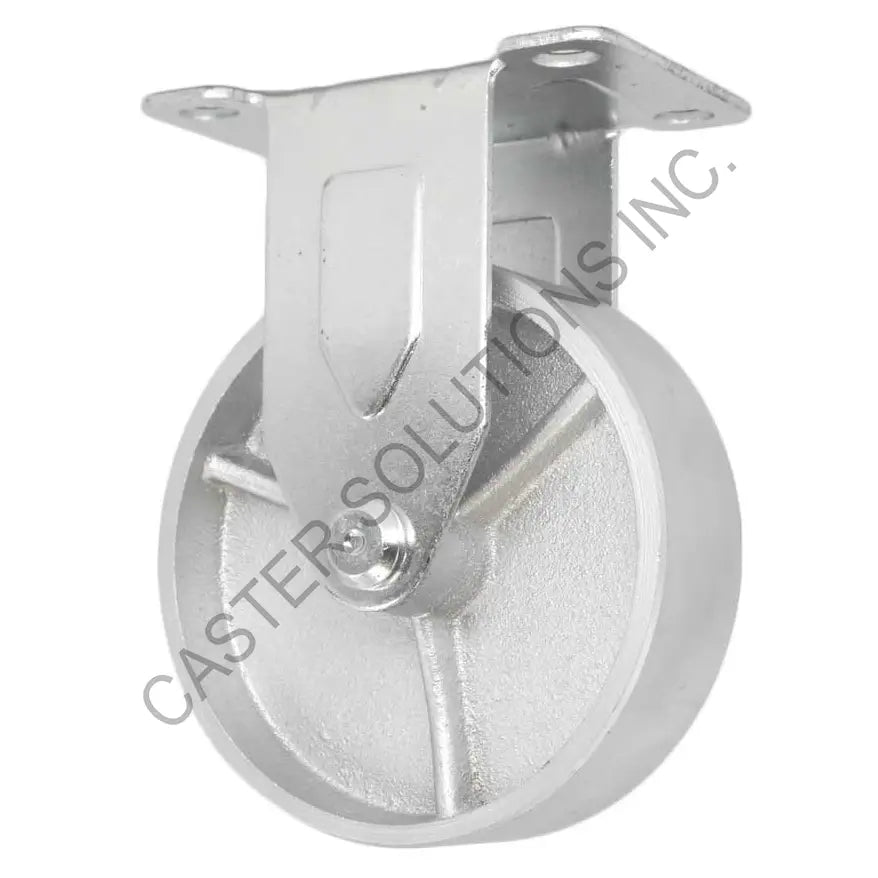

4" x 1.25" Rigid Plate Caster with Semi-Steel Wheel
Made from a mixture of steel and cast iron; this Semi-Steel wheel offers a strong, durable and cost-effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth and centrical ride; tread edge is machined round.
A good choice for heavy loads in manufacturing and warehousing; especially on rough concrete and other rough surfaces.
The 13/14 Series is arguably our most popular series of casters and in being so, offers the greatest value and availability. This series offers matching swivel and rigid casters.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" - 3" |
| Wheel Diameter | 4.0" |
| Tread Width | 1.25" |
| Wheel Name | Semi-Steel |
| Wheel Tread Material | Steel |
| Wheel Core Material | Steel |
| Tread Profile | Flat |
| Bearing Type | Plain Bore |
| Overall Height | 5.1875" |
| Load Capacity | 350 lb |
| Duty Rating | Light-Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
4" x 1.25" Swivel Plate Caster with Semi-Steel Wheel
13SS40GS8206YY
- 2-3/8" x 3-5/8" Plate
- Plain Bore
- 350 lb Cap.
4" x 1.25" Rigid Plate Caster with Semi-Steel Wheel
14SS40GS8206YY
- 2-3/8" x 3-5/8" Plate
- Plain Bore
- 350 lb Cap.
