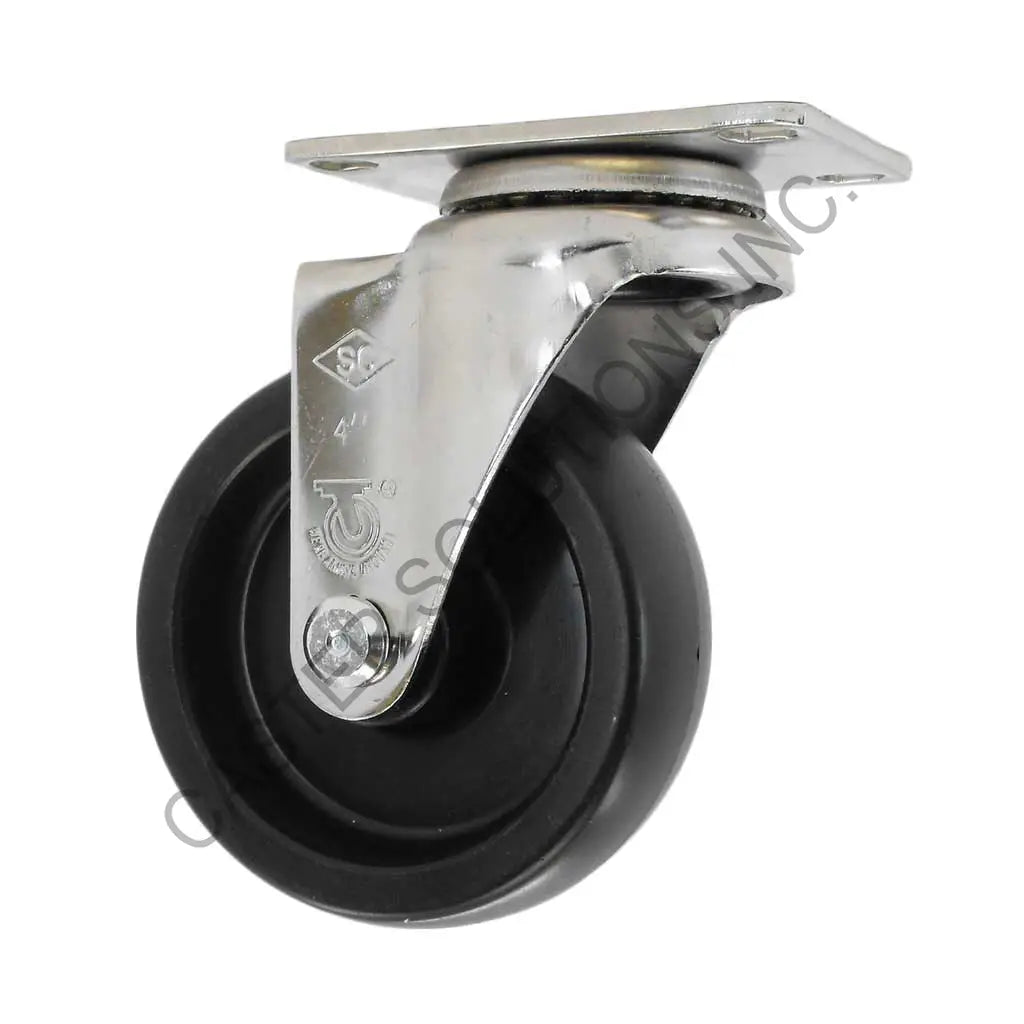

3" x 1.25" Stainless Swivel Plate Caster with Polyolefin Wheel
Our Polyolefin wheels are solid injection molded. High shock load, impact & abrasion resistance. Economical & lightweight with high weight capacities. 100% washable and impervious to water. Highly resistant to organic solvents, oil, grease, most chemicals, acids and cleaning solutions as well. Both white and black materials are non-marking.
Wide range of applications including bakeries, meat processing/packing plants, dairies, food processing plants, laundries and supermarkets.
The 15/16 series is a stainless steel alternative to our 13/14 series. The casters in our 15/16 series are constructed of S304 stainless steel. These casters are NSF listed and ROHS compliant.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" - 3" |
| Wheel Diameter | 3.0" |
| Tread Width | 1.25" |
| Wheel Name | Polyolefin |
| Wheel Tread Material | Polyolefin |
| Wheel Core Material | Polyolefin |
| Tread Profile | Round |
| Wheel Color | Black |
| Wheel Durometer | Shore D 70 ( /-5) |
| Bearing Type | Plain Bore |
| Non-Marking Tread | Yes |
| Overall Height | 4.125" |
| Load Capacity | 300 lb |
| Duty Rating | Light-Medium Duty |
