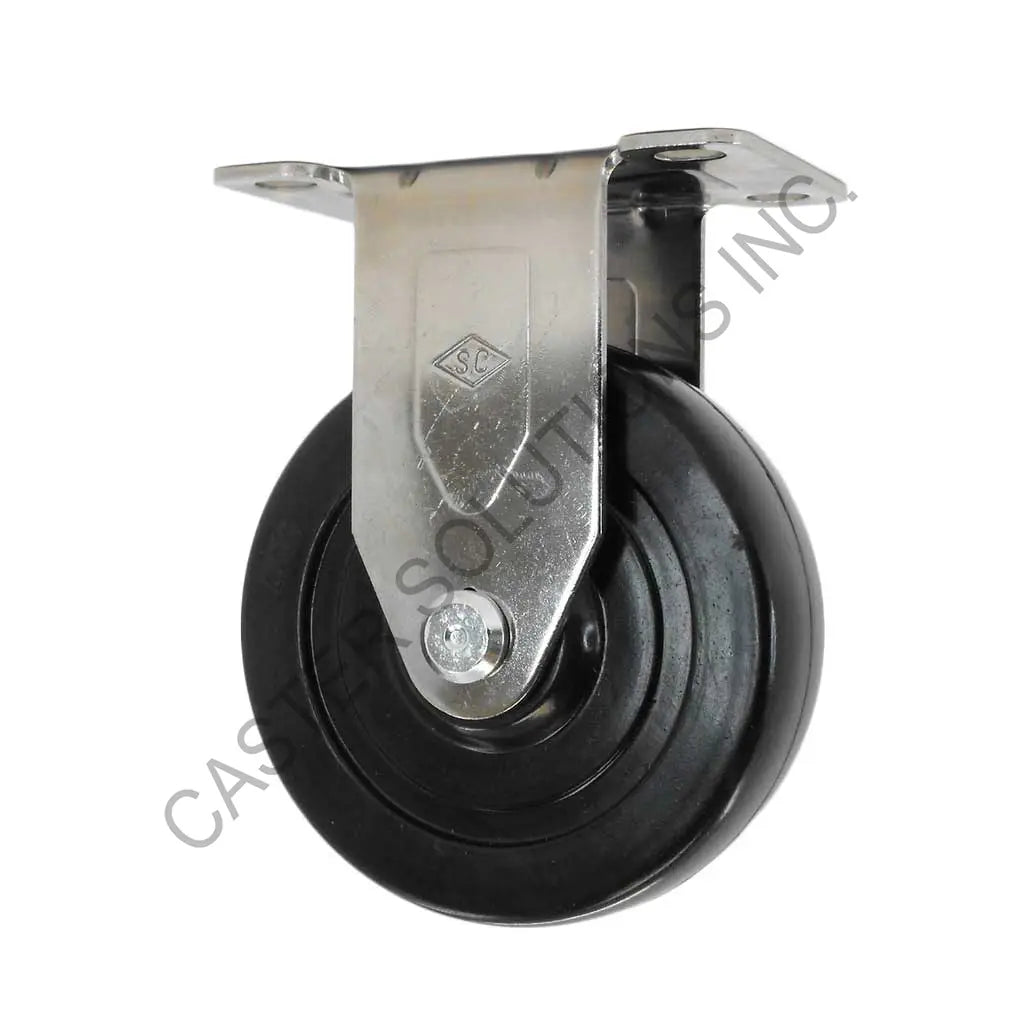

4" x 1.25" Stainless Rigid Plate Caster with Hard Rubber Wheel
Solid hard rubber tread & core offers high impact strength. An economic wheel, that is easy rolling. Nylon bearing sleeve molded in to the wheel core offers improved rollability.
The 15/16 series is a stainless steel alternative to our 13/14 series. The casters in our 15/16 series are constructed of S304 stainless steel. These casters are NSF listed and ROHS compliant.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" - 3" |
| Wheel Diameter | 4.0" |
| Tread Width | 1.25" |
| Wheel Name | Hard Rubber |
| Wheel Tread Material | Rubber |
| Wheel Core Material | Rubber |
| Tread Profile | Flat |
| Wheel Color | Black |
| Wheel Durometer | Shore D 55 ( /-5) |
| Bearing Type | Plain Bore |
| Overall Height | 5.1875" |
| Load Capacity | 350 lb |
| Duty Rating | Light-Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.

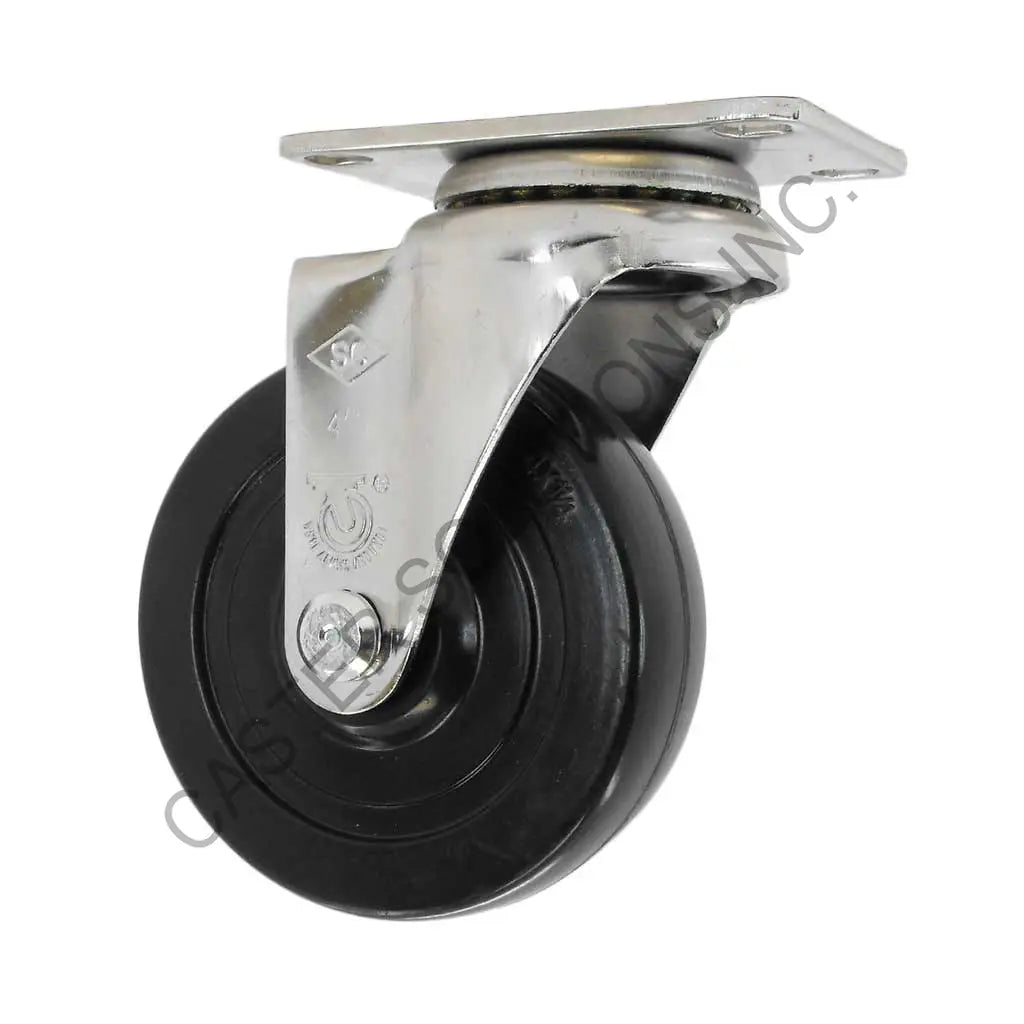

4" x 1.25" Stainless Swivel Plate Caster with Hard Rubber Wheel
