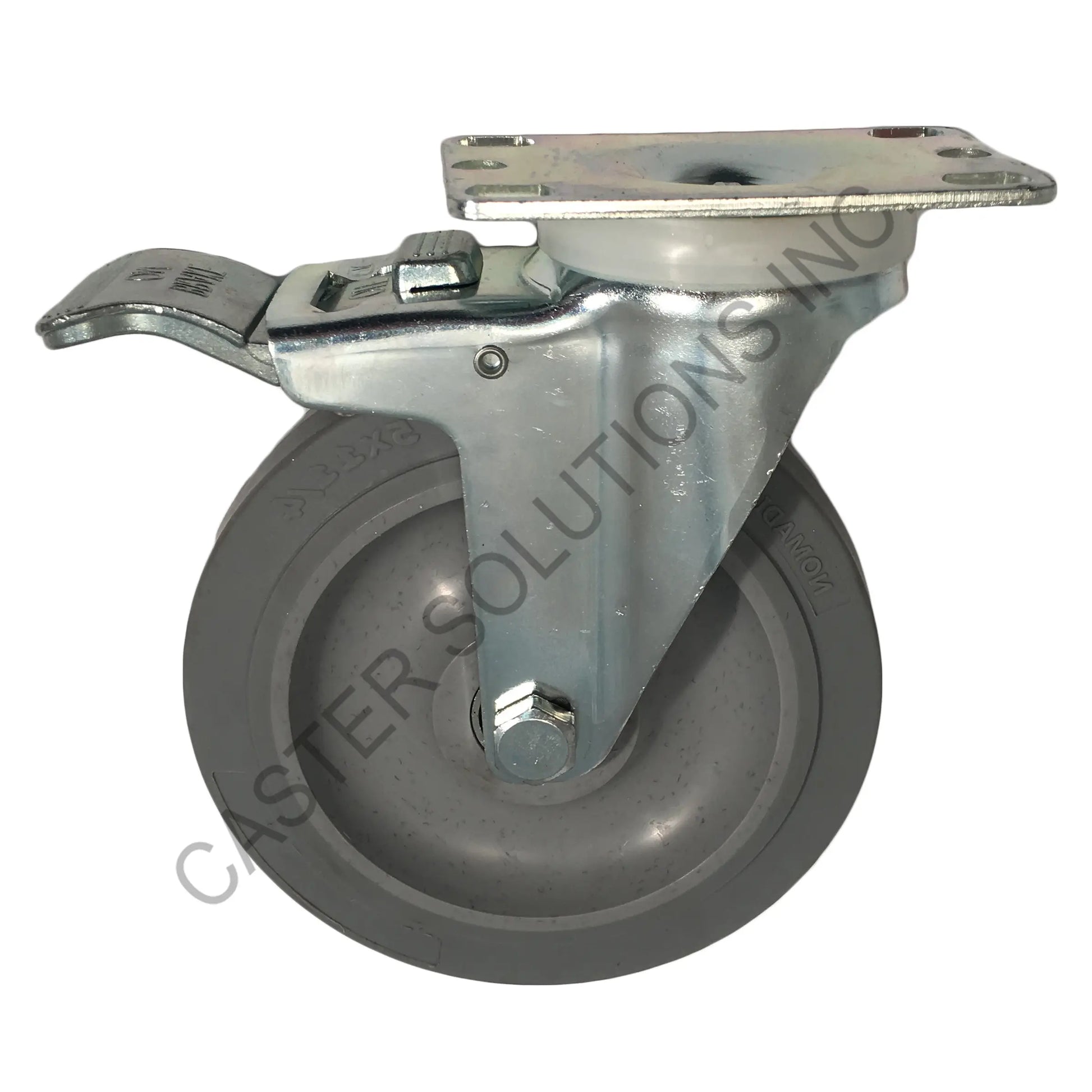

4" x 1.25" Total-locking Plate Caster with Nomadic™ Wheel
The Nomadic wheel is a high grade thermo-elastomer tread bonded to a polyolefin core. A super smooth rolling and quiet operation, including use on tile floors. Non-marking and resistant to cleaning chemicals, acid, alcohols, water and steam. Rejects floor debris, even metal shavings. Sealed precision ball bearing as standard.
Used in many hospitals, restaurants and where there is food prep or delivery. A favorite choice for industrial linen facilities.
The 17/18/19 Series offers matching total-locking, swivel and rigid casters. These are light-medium duty casters.
Specifications
| Caster Type | Total-locking |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" - 3" |
| Wheel Diameter | 4.0" |
| Tread Width | 1.25" |
| Wheel Name | Nomadic™ |
| Wheel Tread Material | Thermoplastic |
| Wheel Core Material | Polyolefin |
| Tread Profile | Crowned |
| Wheel Color | Gray |
| Wheel Durometer | Shore A 65 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 5.25" |
| Load Capacity | 300 lb |
| Duty Rating | Light-Medium Duty |
