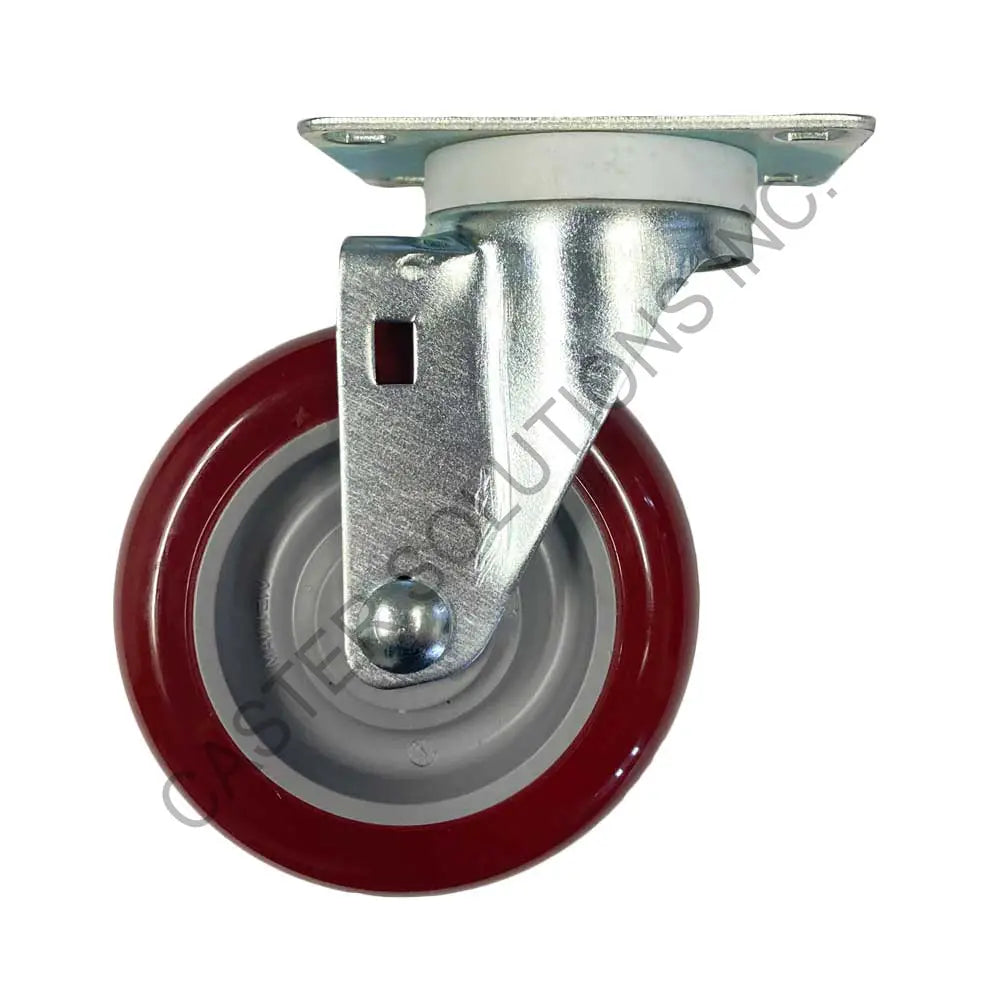

4" x 1.25" Swivel Plate Caster with Polymadic™ Wheel
The Polymadic wheel is high performance, UV resistant, slightly crowned polyurethane tread that is mechanically locked to the solid core. This design adds significant strength for loads subjected to shock impacts. The non-marking tread and sealed precision ball bearings makes this wheel very smooth rolling and quiet in operation. This wheel offers resistance to oil, grease, water and most solvents.
The 17/18/19 Series offers matching total-locking, swivel and rigid casters. These are light-medium duty casters.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" - 3" |
| Wheel Diameter | 4.0" |
| Tread Width | 1.25" |
| Wheel Name | Polymadic™ |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Polyolefin |
| Tread Profile | Round |
| Wheel Color | Maroon |
| Wheel Durometer | Shore D 60 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 5.25" |
| Load Capacity | 350 lb |
| Duty Rating | Light-Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
4" x 1.25" Swivel Plate Caster with Polymadic™ Wheel
19PM40GM4306YY
- 2-3/8" x 3-5/8" Plate
- Sealed Precision Ball Bearing
- 350 lb Cap.
4" x 1.25" Rigid Plate Caster with Polymadic™ Wheel
18PM40GM4306YY
- 2-3/8" x 3-5/8" Plate
- Sealed Precision Ball Bearing
- 350 lb Cap.
4" x 1.25" Total-locking Plate Caster with Polymadic™ Wheel
17PM40GM4306YY
- 2-3/8" x 3-5/8" Plate
- Sealed Precision Ball Bearing
- 350 lb Cap.
