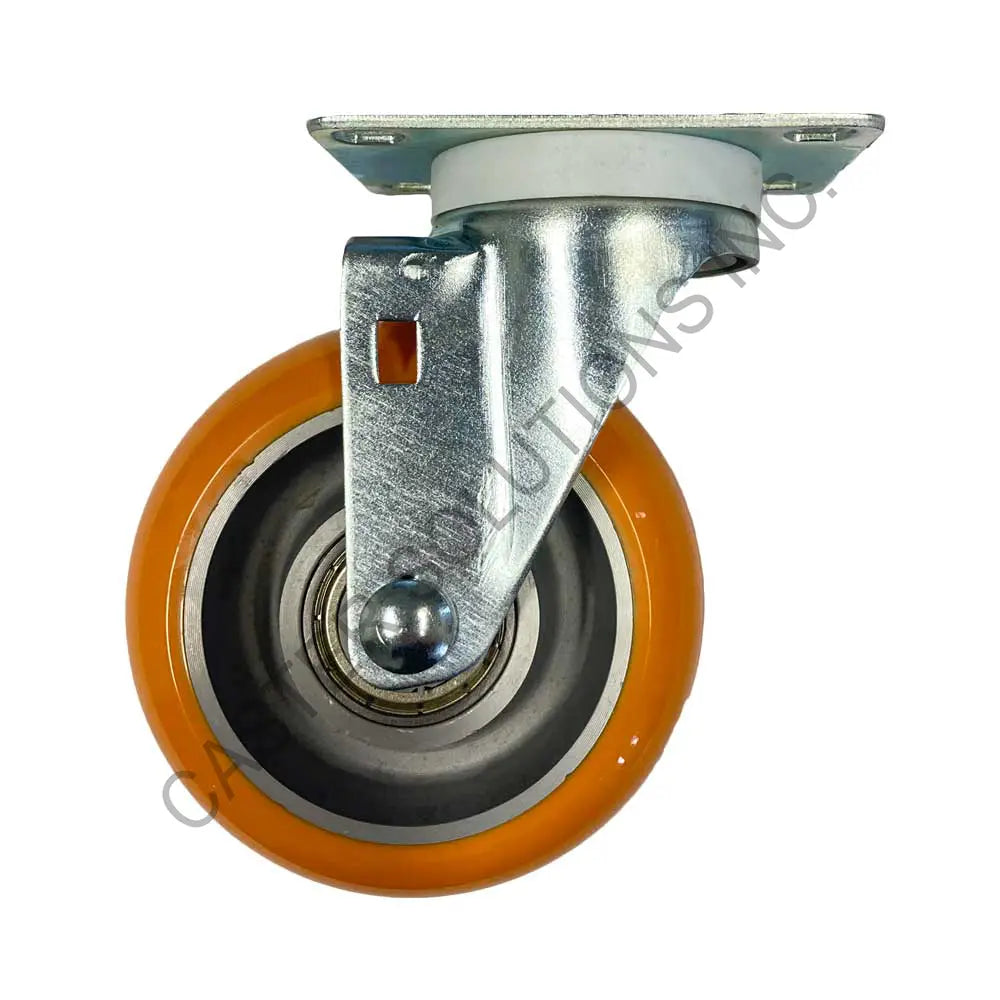

4" x 1.25" Swivel Plate Caster with UltraFlex™ Wheel
Our ergonomically designed Super Elastomer, UltraFlex™ wheel is comprised of high-grade Polyurethane 85A. Shown to significantly reduce initial push/pull forces, rolling and swiveling resistance. The crowned treads are non-marking, super smooth rolling and operate quietly. The unique tread repels foreign objects and debris. They come standard with large sealed precision ball bearings and are maintenance free for the life of the wheel.
Ideal for tow line applications where there are frequent stops, starts and turns. Used in many large manufacturing plants like GM, Ford and Terex.
The 17/18/19 Series offers matching total-locking, swivel and rigid casters. These are light-medium duty casters.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" - 3" |
| Wheel Diameter | 4.0" |
| Tread Width | 1.25" |
| Wheel Name | UltraFlex™ |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Tread Profile | Round |
| Wheel Color | Orange |
| Wheel Durometer | Shore D 80 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 5.1875" |
| Load Capacity | 350 lb |
| Duty Rating | Light-Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
4" x 1.25" Swivel Plate Caster with UltraFlex™ Wheel
19UX40GO6206YY
- 2-3/8" x 3-5/8" Plate
- Sealed Precision Ball Bearing
- 350 lb Cap.
4" x 1.25" Rigid Plate Caster with UltraFlex™ Wheel
18UX40GO6206YY
- 2-3/8" x 3-5/8" Plate
- Sealed Precision Ball Bearing
- 350 lb Cap.
4" x 1.25" Total-locking Plate Caster with UltraFlex™ Wheel
17UX40GO6206YY
- 2-3/8" x 3-5/8" Plate
- Sealed Precision Ball Bearing
- 350 lb Cap.
