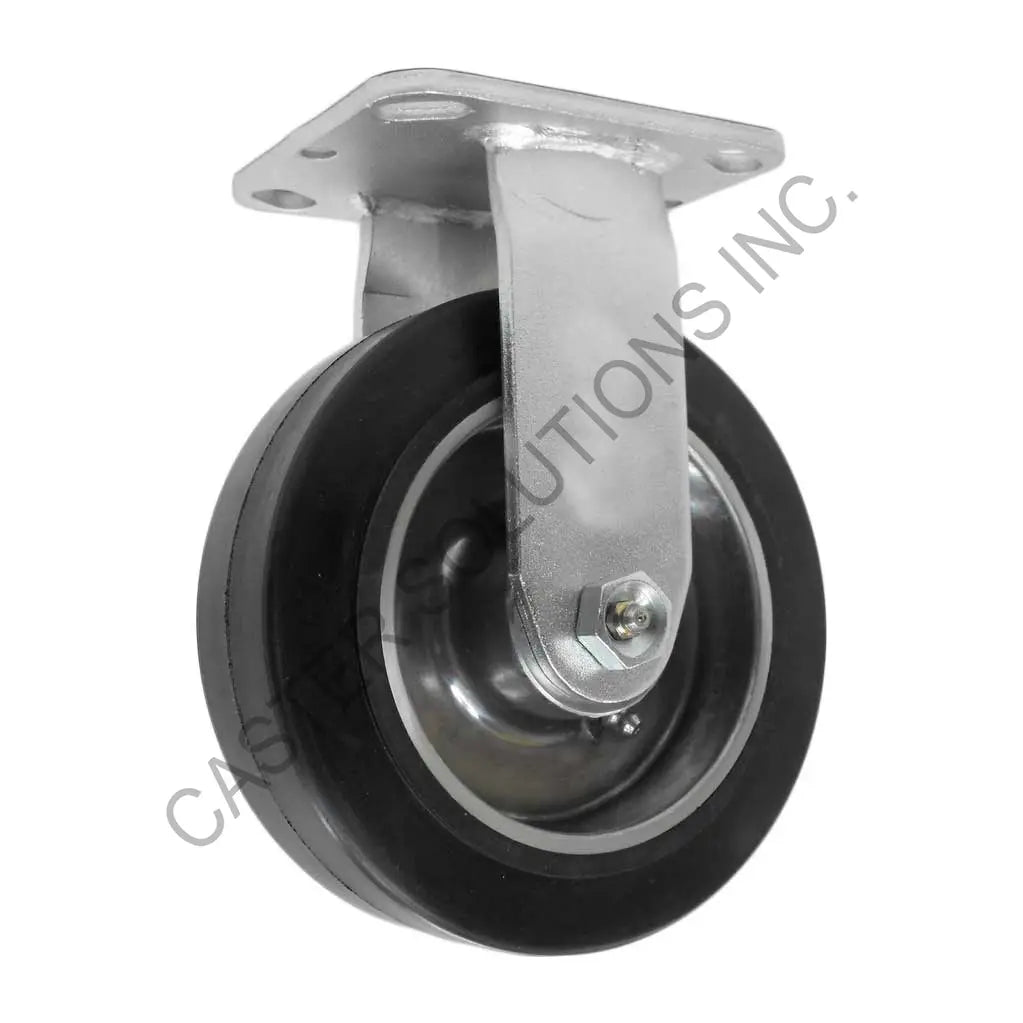

4" x 2" Rigid Plate Caster with Rubber on Aluminum Wheel
The Rubber on Aluminum wheel has a rubber tread vulcanized to heavy-duty aluminum core. Offers a shock absorbing semi-cushioned ride with floor protection and a quiet rolling operation. Rolls well over small debris, rough floors, cracks, floor joints, other common obstacles. Economically priced cushion wheel.
Works well in outdoor environments and is corrosion resistant due to its aluminum core. The black rubber tread may leave floor marks; if non-marking wheels are required we suggest using another wheel.
Ideal for platform and lumber carts. Widely used on commercial dumpsters.
The 27/28/DT/FT medium duty series is one of our most popular series of casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters with capacities up to 1,250 lb. These casters use a 2" wide wheel as standard.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 4.0" |
| Tread Width | 2.0" |
| Wheel Name | Rubber on Aluminum |
| Wheel Tread Material | Rubber |
| Wheel Core Material | Aluminum |
| Tread Profile | Flat |
| Wheel Color | Black |
| Bearing Type | Precision Ball Bearing |
| Overall Height | 5.625" |
| Load Capacity | 400 lb |
| Duty Rating | Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
4" x 2" Swivel Plate Caster with Rubber on Aluminum Wheel
27RA40JB6017YY
- 4" x 4-1/2" Plate
- Precision Ball Bearing
- 400 lb Cap.
4" x 2" Rigid Plate Caster with Rubber on Aluminum Wheel
28RA40JB6017YY
- 4" x 4-1/2" Plate
- Precision Ball Bearing
- 400 lb Cap.
4" x 2" Total-locking Plate Caster with Rubber on Aluminum Wheel
DTRA40JB6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 400 lb Cap.
4" x 2" Total-locking Plate Caster with Rubber on Aluminum Wheel
FTRA40JB6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 400 lb Cap.
