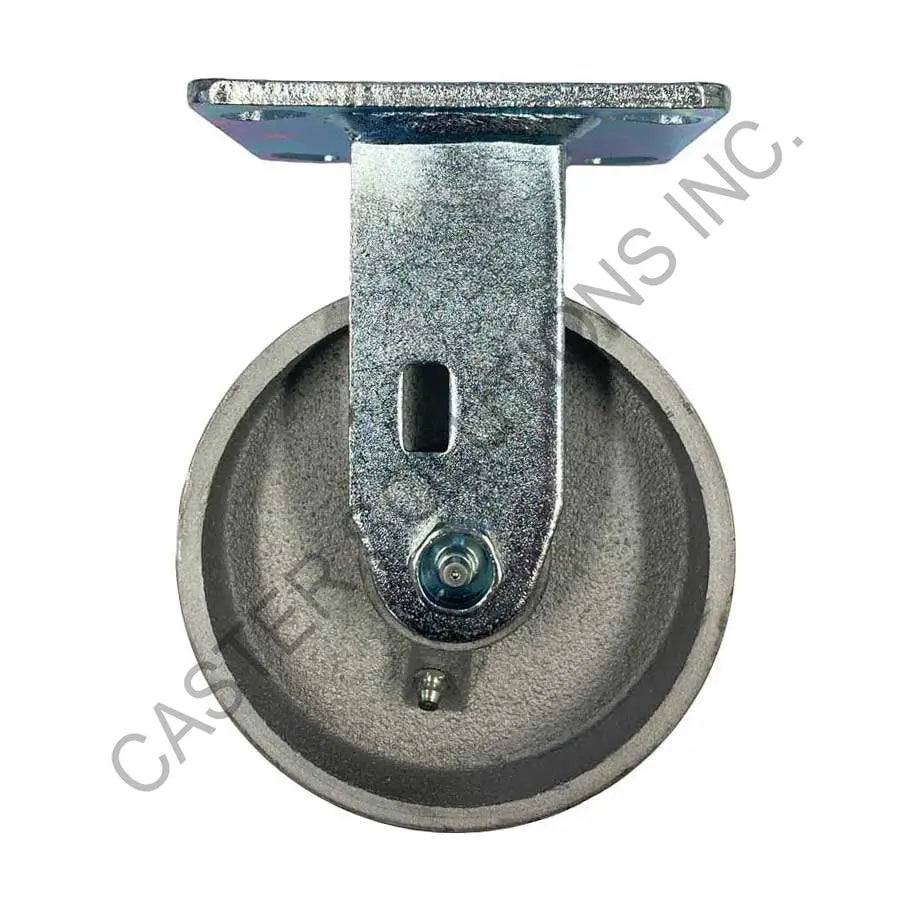

4" x 2" Rigid Plate Caster with Semi-Steel Wheel
Made from a mixture of steel and cast iron; this Semi-Steel wheel offers a strong, durable and cost-effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth and centrical ride; tread edge is machined round.
A good choice for heavy loads in manufacturing and warehousing; especially on rough concrete and other rough surfaces.
The 27/28/DT/FT medium duty series is one of our most popular series of casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters with capacities up to 1,250 lb. These casters use a 2" wide wheel as standard.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 4.0" |
| Tread Width | 2.0" |
| Wheel Name | Semi-Steel |
| Wheel Tread Material | Steel |
| Wheel Core Material | Steel |
| Tread Profile | Flat |
| Wheel Color | Gray |
| Wheel Durometer | Brinell 145 |
| Bearing Type | Roller Bearing |
| Overall Height | 5.625" |
| Load Capacity | 700 lb |
| Duty Rating | Medium Duty |
