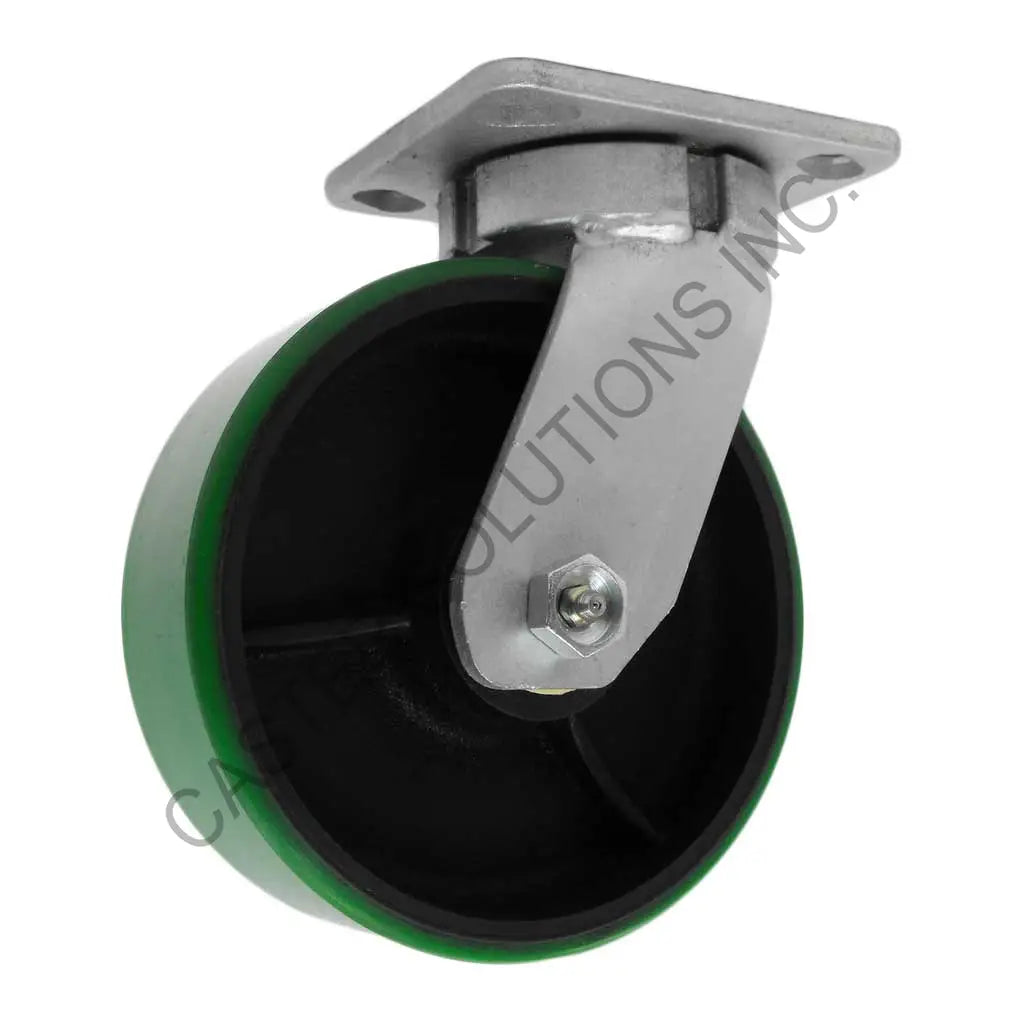

5.00" x 2.00" Swivel Plate Caster with Polyon™ Wheel
Our Polyon wheel is comprised of a polyurethane tread bonded to a solid cast-iron core. It offers a high capacity while also providing floor protection with its non-marking tread. It is resistant to most solvents, oil, grease, annd water.
Great for automotive plants, towlines applications and general warehouse carts.
The 41/42 Series is the economy-priced alternative to our 45/46 Kingpinless Series, offering the same matching swivel and rigid caster configurations at a lower price point. Rated for medium-heavy duty use with capacities up to 1,500 lb, the 41/42 Series is an excellent cost-effective choice for demanding industrial applications where the full capacity of the 45/46 is not required.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 5.0" |
| Tread Width | 2.0" |
| Wheel Name | Polyon™ |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Cast Iron |
| Tread Profile | Flat |
| Wheel Color | Green |
| Wheel Durometer | Shore A 95 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 6.5" |
| Load Capacity | 1100 lb |
| Duty Rating | Medium-Heavy Duty |
