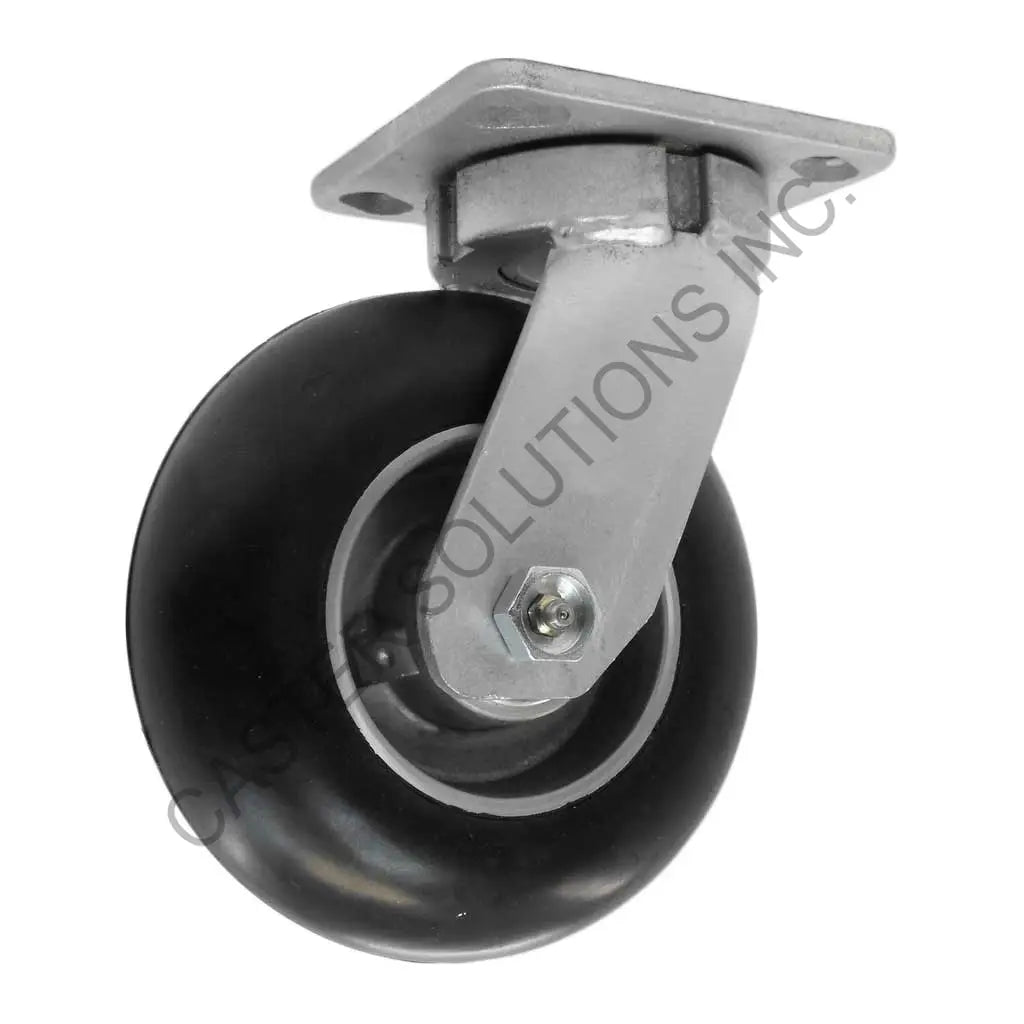

8" x 2" Swivel Plate Caster with Dura-Cushion™ Wheel
Balloon Cushioned wheels have a rounded rubber treaded molded to an aluminum core. The rounded tread minimizes friction and enables the wheel to turn easily. This wheel offers the best shock absorbing, cushioned ride available of rubber wheels. It rolls easily over debris and small obstructions, such as electrical cords. This caster wheel also has superior floor protection and is ultra-quiet rolling. The down side is this wheel has lower capacities than other rubber wheels. For higher capacity wheels with similar characteristic, check out our thermoplastic rubber wheels.
We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.
The 45/46 medium-heavy duty series is one of our most popular series of casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters with capacities up to 2,500 lb. These casters use a 2" wide wheel as standard.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 8.0" |
| Tread Width | 2.0" |
| Wheel Name | Dura-Cushion™ |
| Wheel Tread Material | Rubber |
| Wheel Core Material | Aluminum |
| Tread Profile | Round |
| Wheel Color | Black |
| Wheel Durometer | Shore A 60 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Overall Height | 9.5" |
| Load Capacity | 450 lb |
| Duty Rating | Medium-Heavy Duty |
