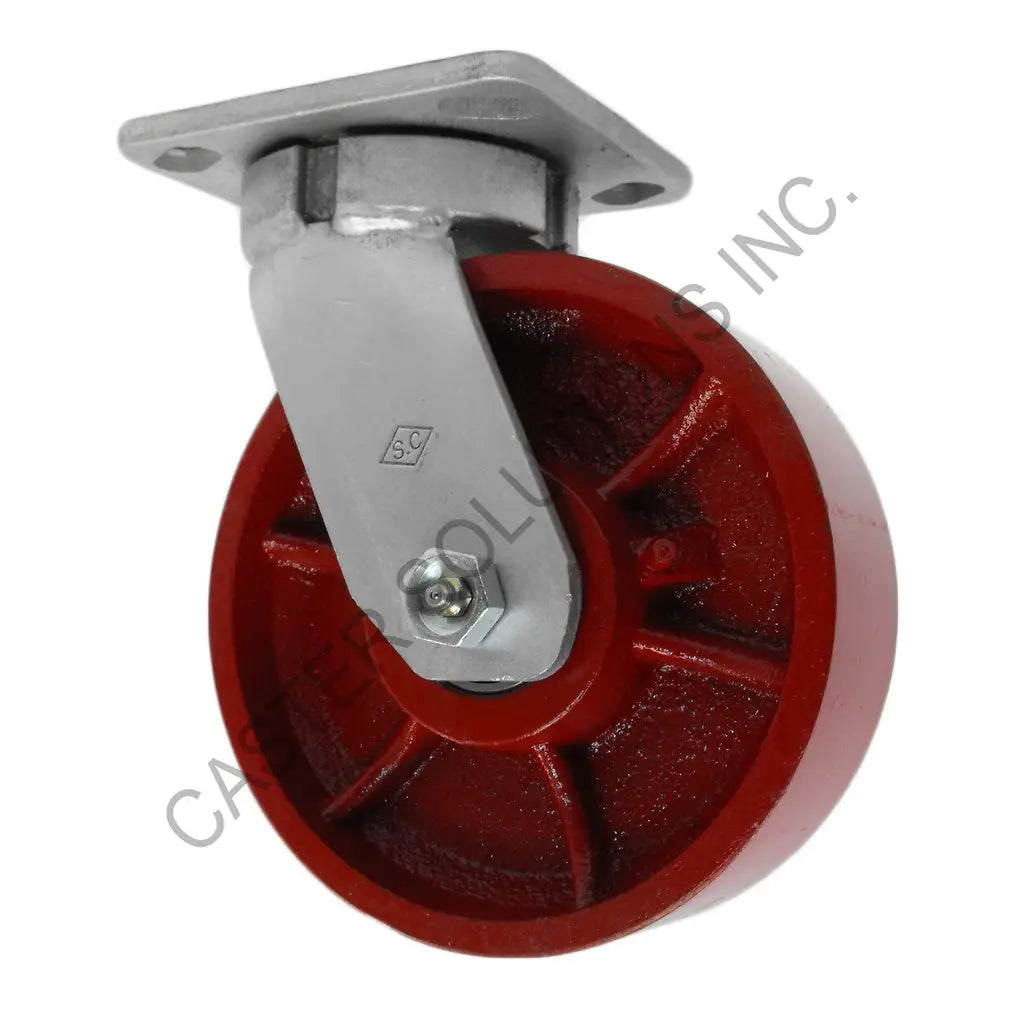

8" x 2" Swivel Plate Caster with Ductile Steel Wheel
Ductile steel is a composed of a combination of special alloys that give it higher weight capacities than cast iron; while being more economical than drop forged steel. Also referred to as malleable iron; material may flex rather than cracking or breaking when submitted to an extreme shock load. Features an extra thick walled, heavy-duty core, hub and tread face. Roller bearings are standard, with precision & tapered bearings as an option.
Idea for use on rough surfaces and has good rolling resistance under any condition.
The casters in our 45/46 Kingpinless Series are ranked for medium heavy duty used, with capacities up to 2,500 lb.The series offers matching swivel and rigid casters constructed with 1/4″ thick top plates from hot forged ASTM1045 steel. The legs are are also formed with 1/4″ thick steel.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 8.0" |
| Tread Width | 2.0" |
| Wheel Name | Ductile Steel |
| Wheel Tread Material | Steel |
| Wheel Core Material | Steel |
| Tread Profile | Flat |
| Bearing Type | Roller Bearing |
| Overall Height | 9.5" |
| Load Capacity | 2000 lb |
| Duty Rating | Medium-Heavy Duty |
