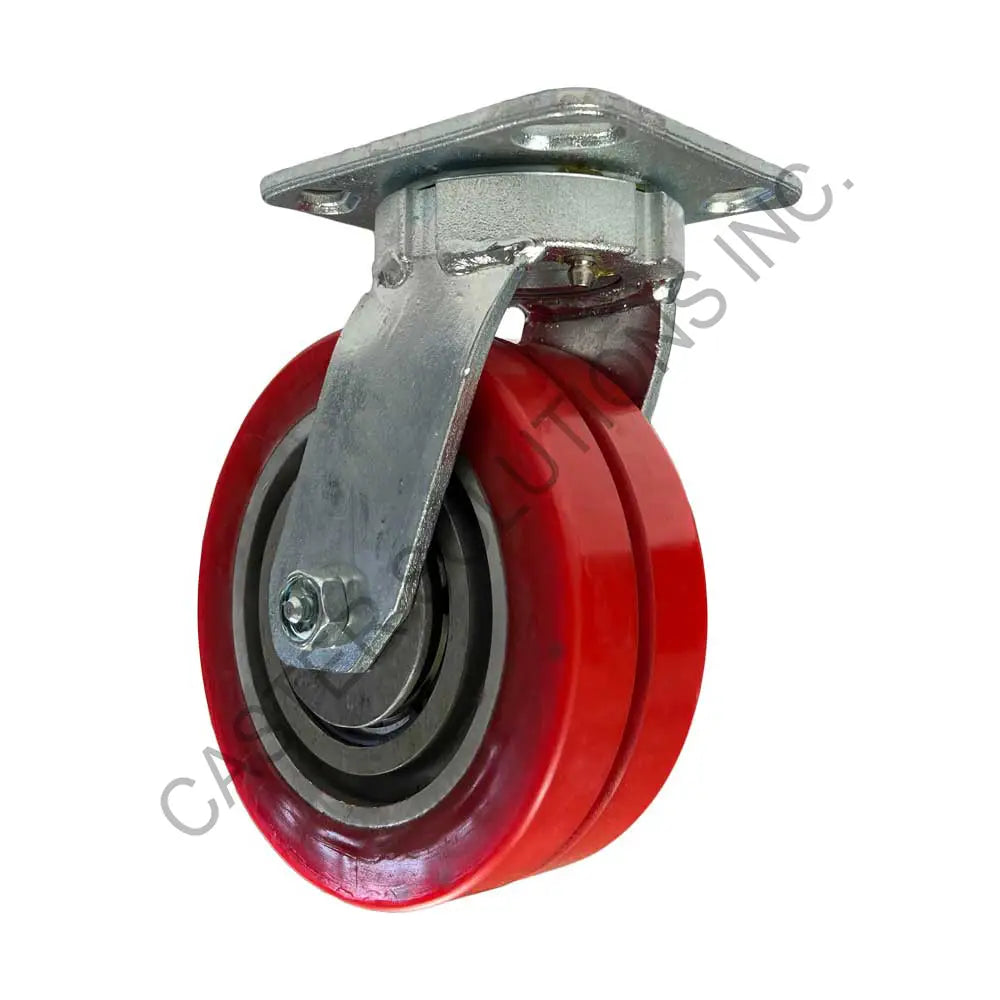

8" x 2" Swivel Plate Caster with Dual Ergo Wheel
Our Dual Polyurethane on Aluminum wheels were designed to replace tradional single wheels for better maneuvering while not widening the footprint and swivel radius. These dual wheels alone have shown a minimum 35-50% push/pull force reduction. As well as proven to reduce rolling resistance and helps with the swiveling action. Each wheel has 2 independent rolling wheels and are maintenance free for the life of the wheel. They feature large sealed precision ball bearings and a non-marking tread.
Great for manufacturing plants, tow lines and where stringent push/pull forces are required. Commonly used at airline manufacturers for working platforms next to the airplane on the assembly line.
The 45/46 medium-heavy duty series is one of our most popular series of casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters with capacities up to 2,500 lb. These casters use a 2" wide wheel as standard.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 8.0" |
| Tread Width | 2.0" |
| Wheel Name | Dual Ergo |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Tread Profile | Round |
| Wheel Color | Red |
| Wheel Durometer | Shore A 80-85 |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 9.5" |
| Load Capacity | 1100 lb |
| Duty Rating | Medium-Heavy Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
8" x 2" Swivel Plate Caster with Dual Ergo Wheel
45DW80JRT317YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 1100 lb Cap.
8" x 2" Rigid Plate Caster with Dual Ergo Wheel
46DW80JRT317YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 1100 lb Cap.
