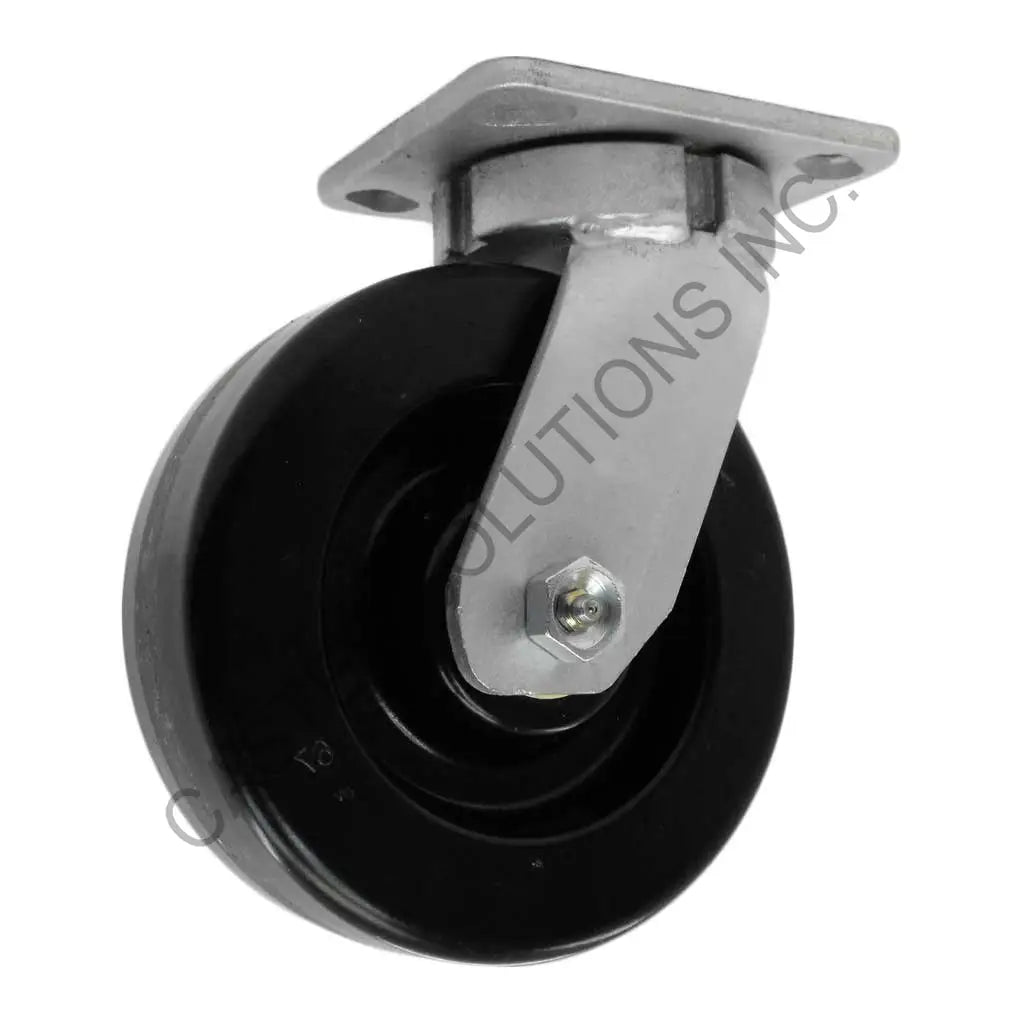

8" x 2" Swivel Plate Caster with Phenolic Wheel
Our Phenolic wheels are composed of Phenolic mixed with macerated canvas. This mixture creates a high capacity and high impact resistant wheel. Phenolic wheels have decades of proven reliability in the industry. Hard tread rolls easily, provides good concrete floor protection and is quieter than steel wheels. Resistant to oil, grease and solvents. Non-metallic & non-sparking.
Very popular wheel for use in manufacturing, warehouses and bakeries.
The 45/46 medium-heavy duty series is one of our most popular series of casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters with capacities up to 2,500 lb. These casters use a 2" wide wheel as standard.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 8.0" |
| Tread Width | 2.0" |
| Wheel Name | Phenolic |
| Wheel Tread Material | Phenolic |
| Wheel Core Material | Phenolic |
| Tread Profile | Flat |
| Wheel Color | Black |
| Wheel Durometer | Shore D 90 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Overall Height | 9.5" |
| Load Capacity | 1400 lb |
| Duty Rating | Medium-Heavy Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
8" x 2" Swivel Plate Caster with Phenolic Wheel
45PH80JB6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 1400 lb Cap.
8" x 2" Rigid Plate Caster with Phenolic Wheel
46PH80JB6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 1400 lb Cap.
