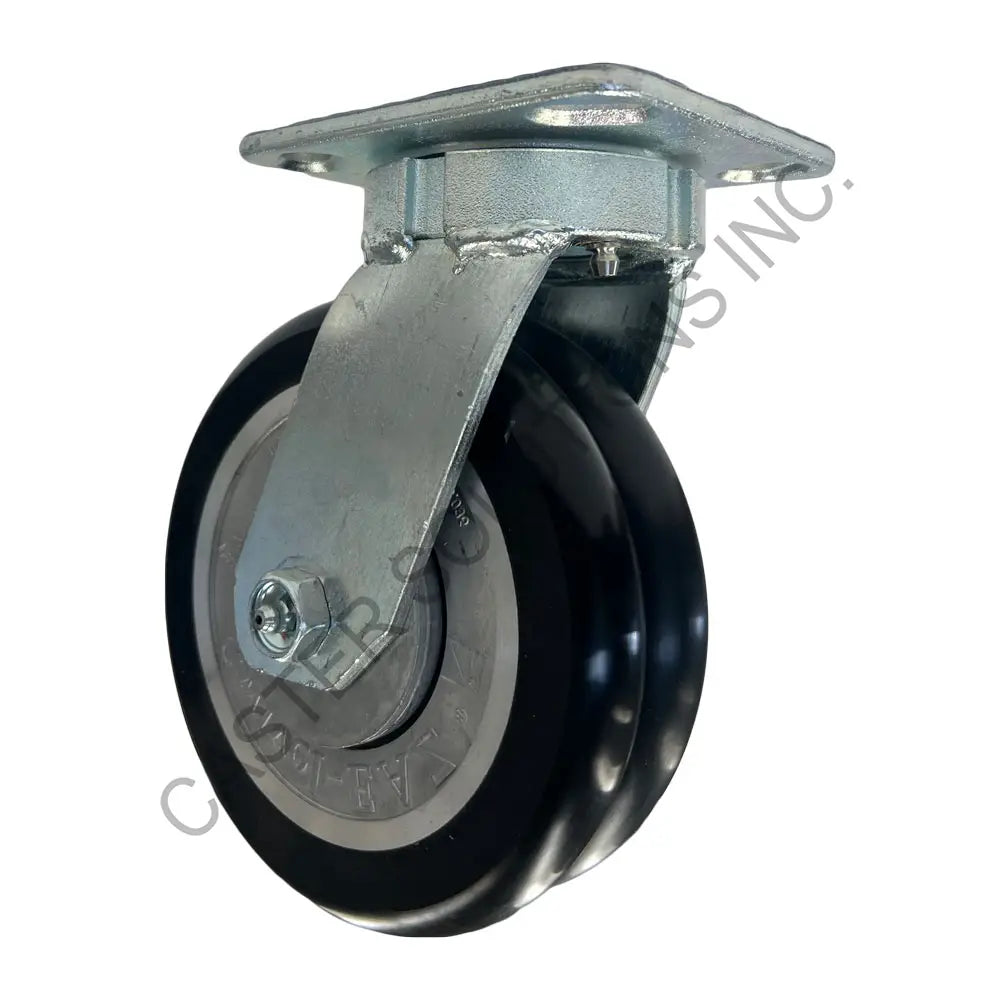

8" x 2" Swivel Plate Caster with Swivel-EAZ® Wheel
With 10 years in service the Swivel-EAZ dual wheels alone have shown a minimum 35-50% push/pull force reduction. As well as proven to reduce rolling resistance and helps with the swiveling action. Each wheel has 2 independent rolling wheels and are maintenance free for the life of the wheel. They feature large sealed precision ball bearings and a non-marking tread.
Great for manufacturing plants, tow lines and where stringent push/pull forces are required. Commonly used at airline manufacturers for working platforms next to the airplane on the assembly line.
The 47/48 Series offers matching swivel and rigid casters rated for medium-heavy duty use with capacities up to 2,000 lb. Constructed with 1/4″ thick top plates from hot forged ASTM1045 steel with legs also formed from 1/4″ thick steel.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" Slotted to 3-3/8" x 5-1/4" |
| Wheel Diameter | 8.0" |
| Tread Width | 2.0" |
| Wheel Name | Swivel-EAZ® |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Tread Profile | Round |
| Wheel Color | Black |
| Wheel Durometer | Shore D 75 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 10.12" |
| Load Capacity | 2000 lb |
| Duty Rating | Medium-Heavy Duty |
