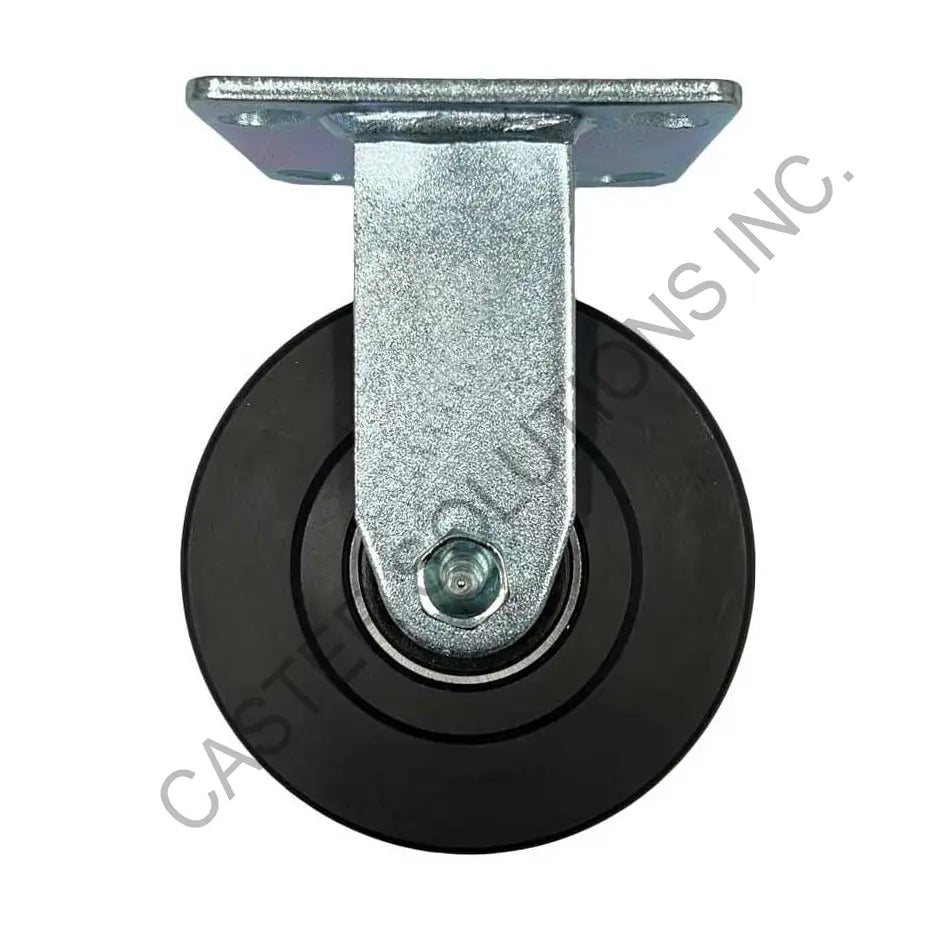

8" x 2" Rigid Plate Caster with IronMan™ Wheel
Regular price
$175.59
Sale price
Regular price
Shipping calculated at checkout.
The Ironman wheel is an exclusive compression molded compound, providing maximum strength and load capacity in a non-metal material. It can easily handle sharp temperature changes, and the sturdy design is ideal for power towing applications.
The 47/48 Series offers matching swivel and rigid casters rated for medium-heavy duty use with capacities up to 2,000 lb. Constructed with 1/4″ thick top plates from hot forged ASTM1045 steel with legs also formed from 1/4″ thick steel.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" Slotted to 3-3/8" x 5-1/4" |
| Wheel Diameter | 8.0" |
| Tread Width | 2.0" |
| Wheel Name | IronMan™ |
| Wheel Tread Material | Polymer |
| Wheel Core Material | Polymer |
| Tread Profile | Flat |
| Wheel Color | Black |
| Wheel Durometer | Shore D 78-82 |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 10.12" |
| Load Capacity | 2000 lb |
| Duty Rating | Medium-Heavy Duty |
