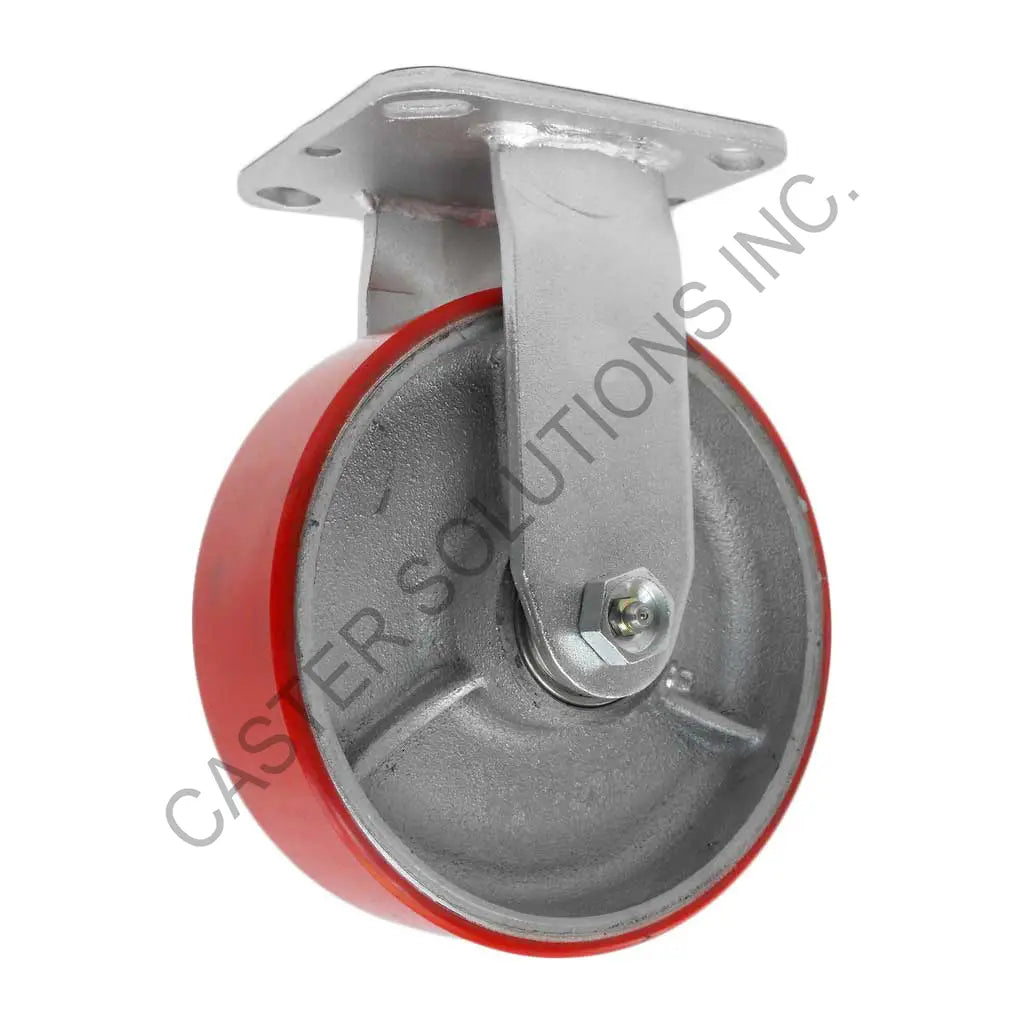

6" x 2" Rigid Plate Caster with Polyon™ Wheel
Our Polyon wheel is comprised of a polyurethane tread bonded to a solid cast-iron core. It offers a high capacity while also providing floor protection with its non-marking tread. It is resistant to most solvents, oil, grease, annd water.
Great for automotive plants, towlines applications and general warehouse carts.
The 47/48 Series offers matching swivel and rigid casters rated for medium-heavy duty use with capacities up to 2,000 lb. Constructed with 1/4″ thick top plates from hot forged ASTM1045 steel with legs also formed from 1/4″ thick steel.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" Slotted to 3-3/8" x 5-1/4" |
| Wheel Diameter | 6.0" |
| Tread Width | 2.0" |
| Wheel Name | Polyon™ |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Cast Iron |
| Tread Profile | Flat |
| Wheel Color | Red |
| Wheel Durometer | Shore A 95 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 7.5" |
| Load Capacity | 2000 lb |
| Duty Rating | Medium-Heavy Duty |
