10" x 3" Swivel Plate Caster with Semi-Steel Wheel
Made from a mixture of steel and cast iron; this Semi-Steel wheel offers a strong, durable and cost-effective solution for heavy loads. Hard tread rolls easily and offers high abrasion resistance. Tread face is precisely machined for a smooth and centrical ride; tread edge is machined round.
A good choice for heavy loads in manufacturing and warehousing; especially on rough concrete and other rough surfaces.
The casters in our 55/56 Series are heavy duty and forged, with capacities up to 3,500 lb. The series offers matching swivel and rigid casters constructed with 3/8" thick swivel head from hot forged ASTM1045 steel. The legs are 3/8" thick and the axle used is 3/4" thick making these casters hold up to the toughest of jobs. The swivel casters feature a integrally forged 1" diameter kingpin, main load ball bearings that are 1/2" in diameter, as well as tapered thrust bearings.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" Slotted to 4-1/8" x 6-1/8" |
| Wheel Diameter | 10.0" |
| Tread Width | 3.0" |
| Wheel Name | Semi-Steel |
| Wheel Tread Material | Steel |
| Wheel Core Material | Steel |
| Tread Profile | Flat |
| Bearing Type | Roller Bearing |
| Overall Height | 12.5" |
| Load Capacity | 2500 lb |
| Duty Rating | Heavy Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.

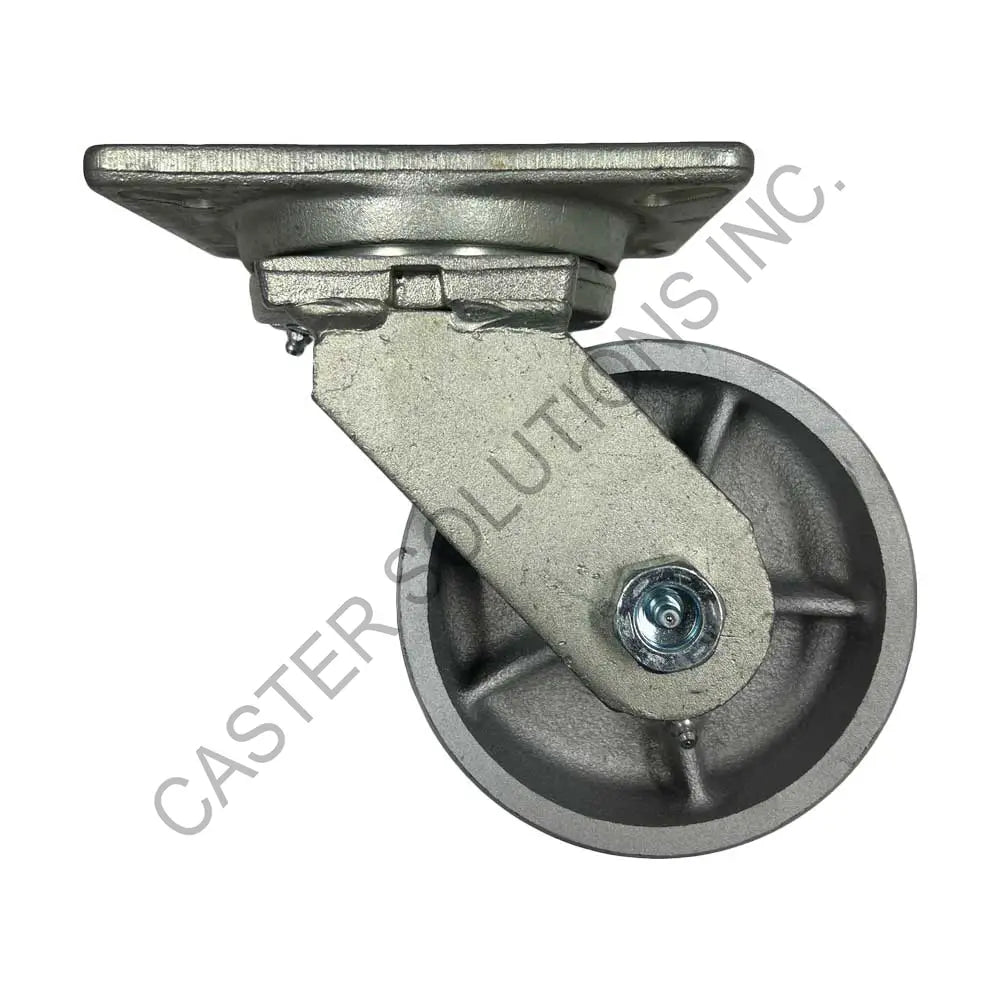

10" x 3" Swivel Plate Caster with Semi-Steel Wheel
55SS10LS2425YY
- 5-1/4" x 7-1/4" Plate
- Roller Bearing
- 2500 lb Cap.

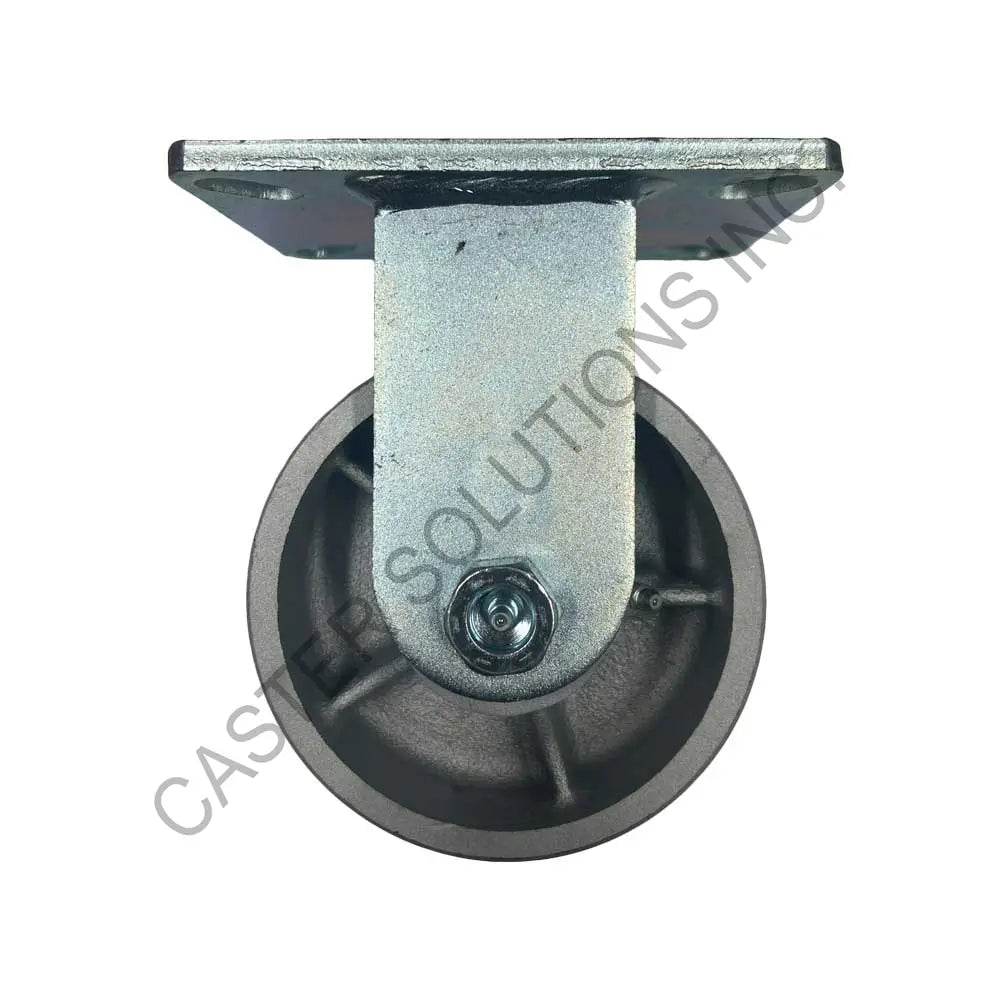

10" x 3" Rigid Plate Caster with Semi-Steel Wheel
56SS10LS2425YY
- 5-1/4" x 7-1/4" Plate
- Roller Bearing
- 2500 lb Cap.
