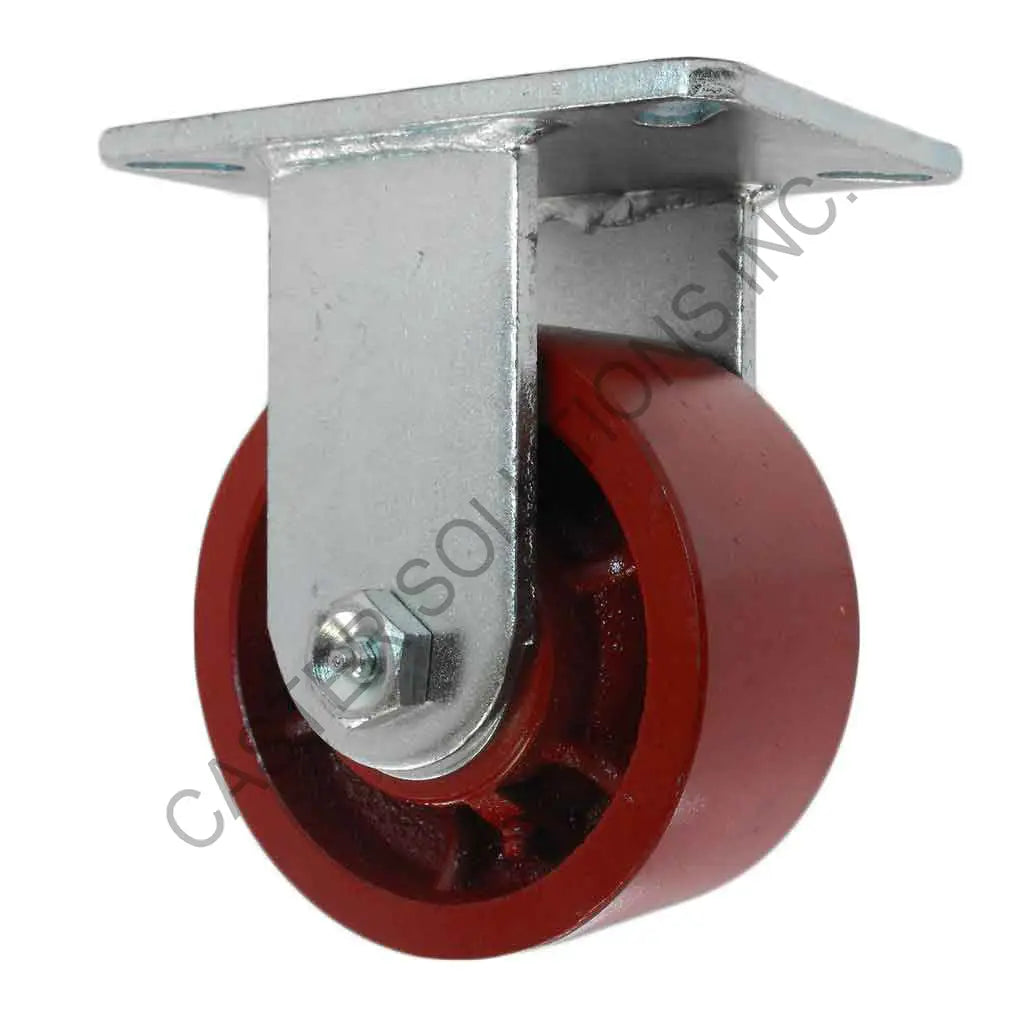

10" x 3" Rigid Plate Caster with Ductile Steel Wheel
Ductile steel is a composed of a combination of special alloys that give it higher weight capacities than cast iron; while being more economical than drop forged steel. Also referred to as malleable iron; material may flex rather than cracking or breaking when submitted to an extreme shock load. Features an extra thick walled, heavy-duty core, hub and tread face. Roller bearings are standard, with precision & tapered bearings as an option.
Idea for use on rough surfaces and has good rolling resistance under any condition.
The casters in our 55/56 Series are heavy duty and forged, with capacities up to 3,500 lb. The series offers matching swivel and rigid casters constructed with 3/8" thick swivel head from hot forged ASTM1045 steel. The legs are 3/8" thick and the axle used is 3/4" thick making these casters hold up to the toughest of jobs. The swivel casters feature a integrally forged 1" diameter kingpin, main load ball bearings that are 1/2" in diameter, as well as tapered thrust bearings.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" Slotted to 4-1/8" x 6-1/8" |
| Wheel Diameter | 10.0" |
| Tread Width | 3.0" |
| Wheel Name | Ductile Steel |
| Wheel Tread Material | Steel |
| Wheel Core Material | Steel |
| Tread Profile | Flat |
| Bearing Type | Roller Bearing |
| Overall Height | 12.5" |
| Load Capacity | 3500 lb |
| Duty Rating | Heavy Duty |
