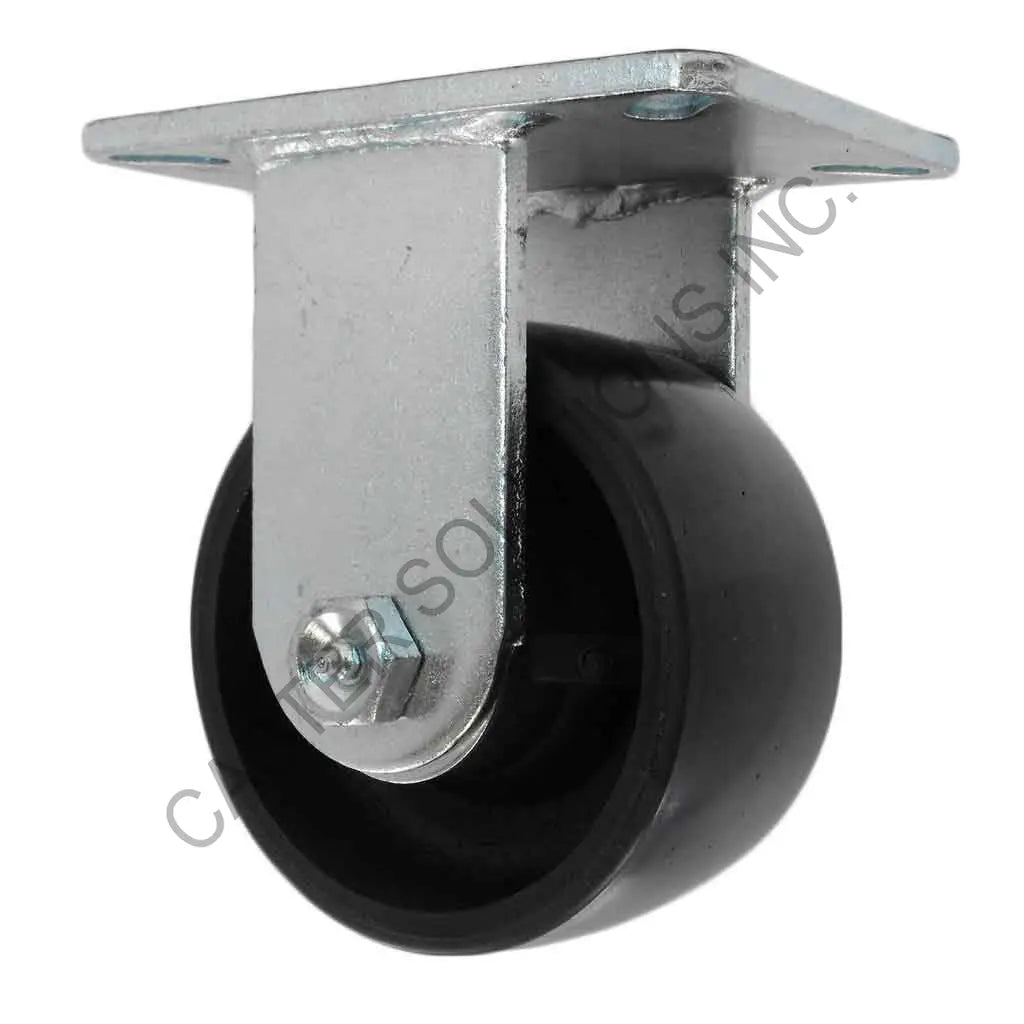

8" x 3" Rigid Plate Caster with Energy Saver Polyon Wheel
Our Energy Saver Polyon wheel is a crowned polyurethane tread bonded to a heavy-duty solid cast iron core. Offering high capacities and floor protection. These wheels are more ergonomic when compared to traditional Poly-On-Iron wheels.
The casters in our 55/56 Series are heavy duty and forged, with capacities up to 3,500 lb. The series offers matching swivel and rigid casters constructed with 3/8" thick swivel head from hot forged ASTM1045 steel. The legs are 3/8" thick and the axle used is 3/4" thick making these casters hold up to the toughest of jobs. The swivel casters feature a integrally forged 1" diameter kingpin, main load ball bearings that are 1/2" in diameter, as well as tapered thrust bearings.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" Slotted to 4-1/8" x 6-1/8" |
| Wheel Diameter | 8.0" |
| Tread Width | 3.0" |
| Wheel Name | Energy Saver Polyon |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Cast Iron |
| Tread Profile | Crowned |
| Wheel Color | Red |
| Wheel Durometer | Shore A 95 ( /-5) |
| Bearing Type | Roller Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 10.5" |
| Load Capacity | 2400 lb |
| Duty Rating | Heavy Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.

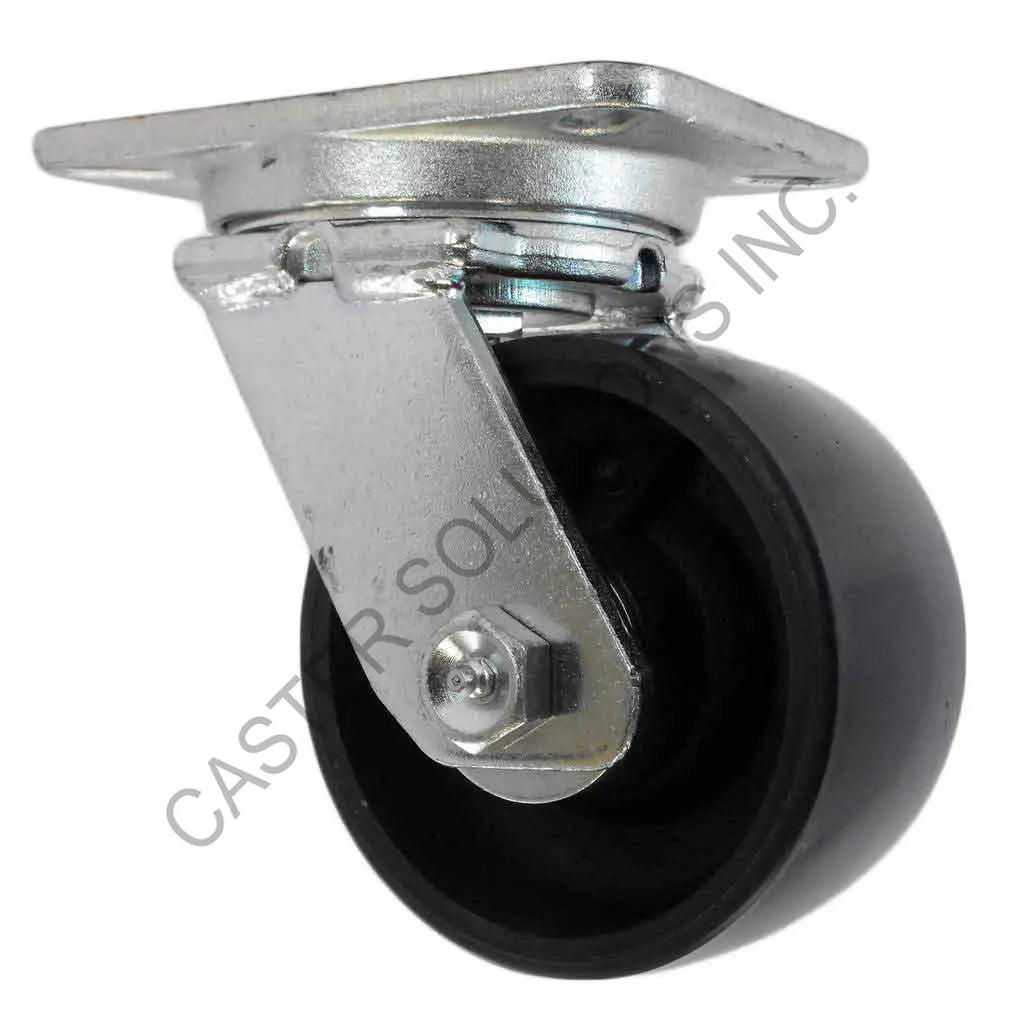

8" x 3" Swivel Plate Caster with Energy Saver Polyon Wheel
