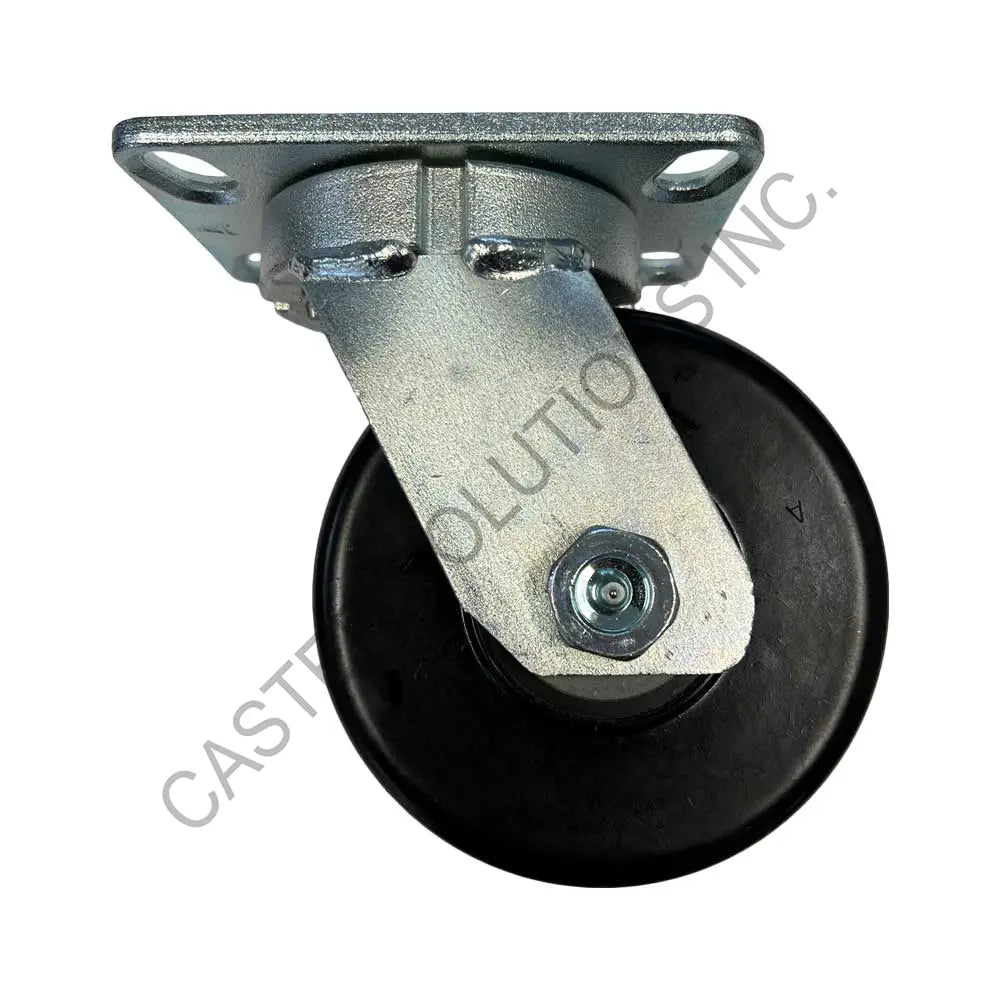

10" x 3" Swivel Plate Caster with Phenolic Wheel
Our Phenolic wheels are composed of Phenolic mixed with macerated canvas. This mixture creates a high capacity and high impact resistant wheel. Phenolic wheels have decades of proven reliability in the industry. Hard tread rolls easily, provides good concrete floor protection and is quieter than steel wheels. Resistant to oil, grease and solvents. Non-metallic & non-sparking.
Very popular wheel for use in manufacturing, warehouses and bakeries.
The casters in our 57/58 Kingpinless Series are heavy duty and forged, with capacities up to 6,000 lb.The series offers matching swivel and rigid casters constructed with 5/16" thick top plates from hot forged ASTM1045 steel. The legs are 3/8" thick and the axle used is 3/4" thick making these casters hold up to the toughest of jobs. The swivel casters feature a 3' precisely machined kingpinless raceway of 1/2" ball bearings.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" Slotted to 3-3/8" x 5-1/4" |
| Wheel Diameter | 10.0" |
| Tread Width | 3.0" |
| Wheel Name | Phenolic |
| Wheel Tread Material | Phenolic |
| Wheel Core Material | Phenolic |
| Tread Profile | Flat |
| Wheel Color | Black |
| Wheel Durometer | Shore D 90 ( /-5) |
| Bearing Type | Roller Bearing |
| Overall Height | 11.5" |
| Load Capacity | 2900 lb |
| Duty Rating | Heavy Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
10" x 3" Swivel Plate Caster with Phenolic Wheel
57PH10LB2419YY
- 4-1/2" x 6-1/4" Plate
- Roller Bearing
- 2900 lb Cap.

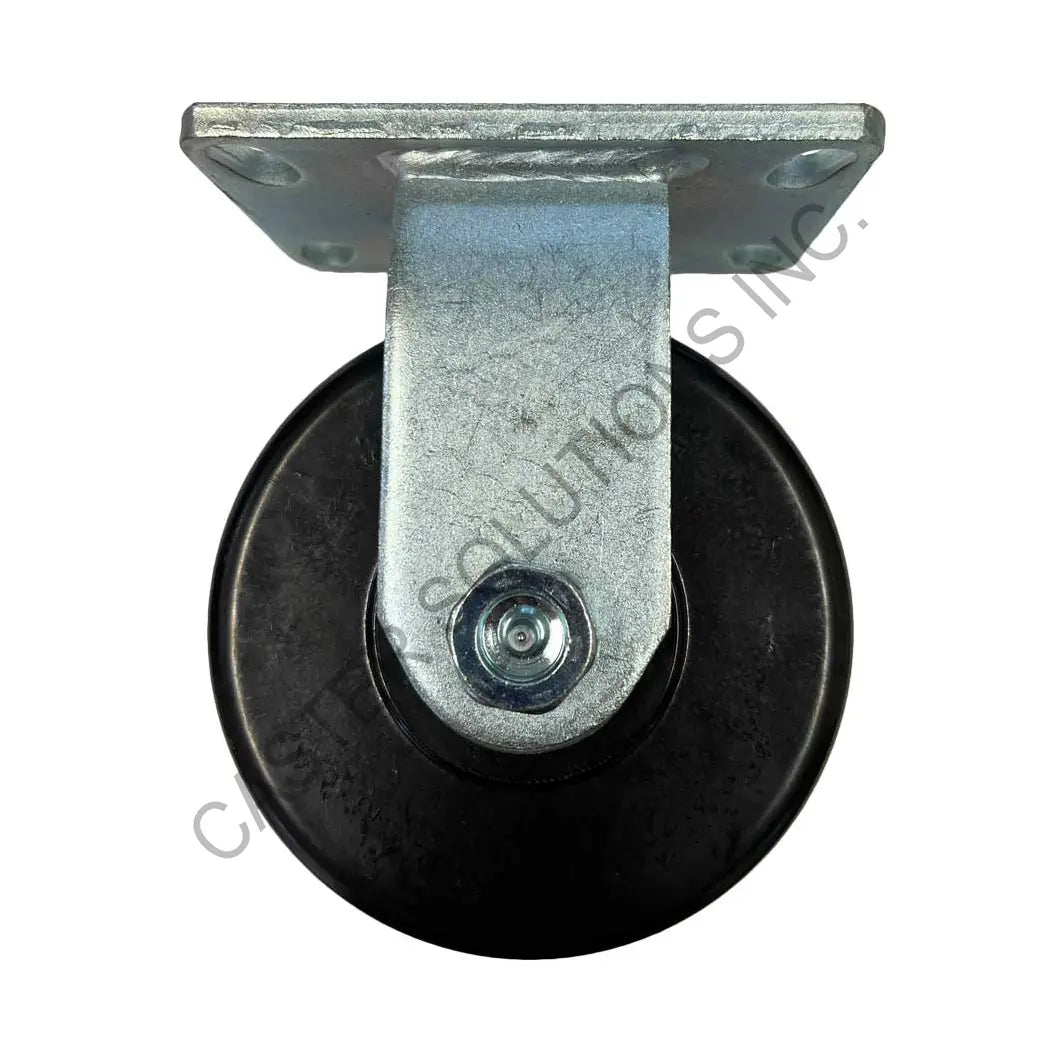

10" x 3" Rigid Plate Caster with Phenolic Wheel
