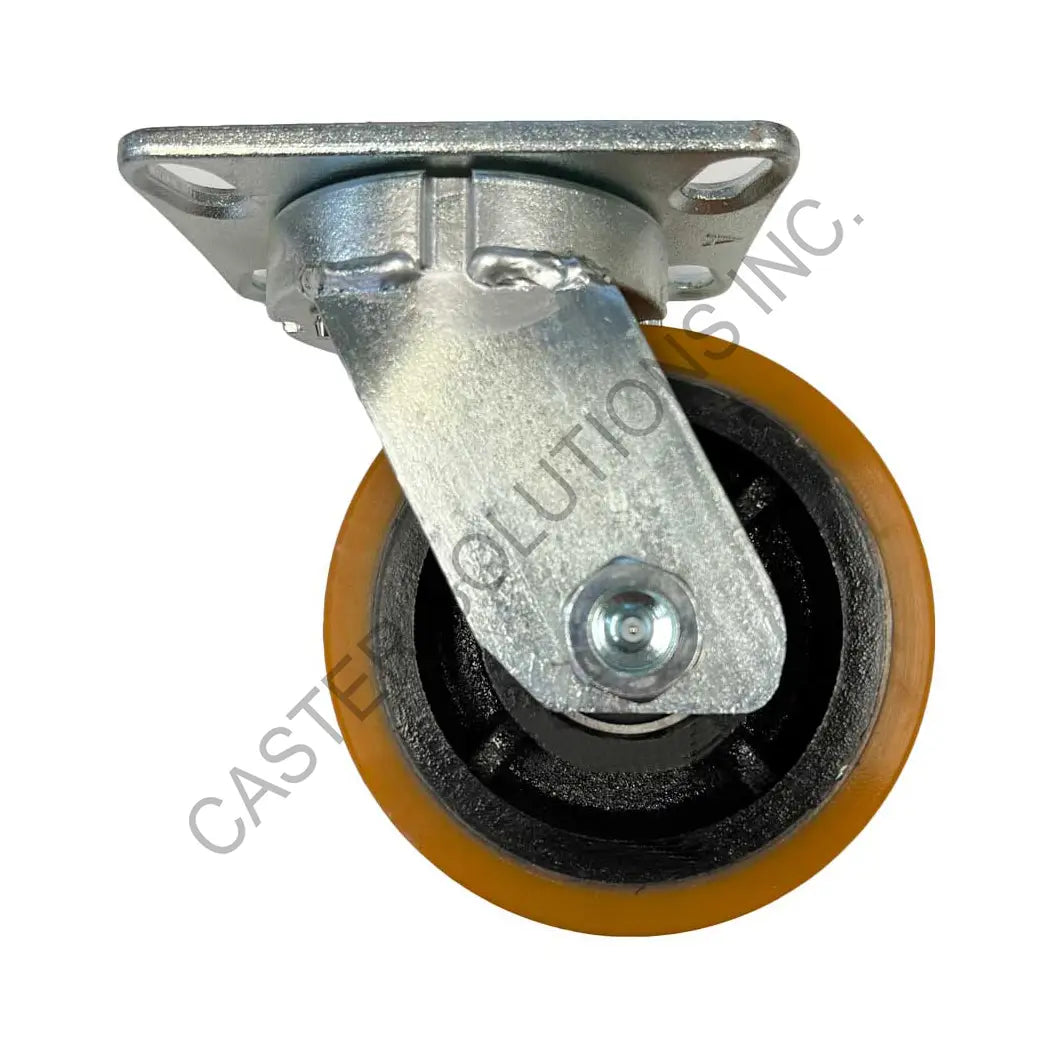

12" x 3" Swivel Plate Caster with Titan™ Polymer Wheel
The Titan MegaPoly wheel uses a thick premium polyurethane tread bonded to a cast iron core. This wheel has a signifacntly higher load capacity and life span compared to its competitors due to its construction which slows down and disspates the internal heat that builds up while in use.
This wheel exceeds in tow appplications.
The casters in our 57/58 Kingpinless Series are heavy duty and forged, with capacities up to 6,000 lb.The series offers matching swivel and rigid casters constructed with 5/16" thick top plates from hot forged ASTM1045 steel. The legs are 3/8" thick and the axle used is 3/4" thick making these casters hold up to the toughest of jobs. The swivel casters feature a 3' precisely machined kingpinless raceway of 1/2" ball bearings.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" Slotted to 3-3/8" x 5-1/4" |
| Wheel Diameter | 12.0" |
| Tread Width | 3.0" |
| Wheel Name | Titan™ Polymer |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Cast Iron |
| Tread Profile | Flat |
| Wheel Color | Yellow |
| Wheel Durometer | Shore A 95 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 13.5" |
| Load Capacity | 6500 lb |
| Duty Rating | Heavy Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
12" x 3" Swivel Plate Caster with Titan™ Polymer Wheel
57PX12LO5P19YY
- 4-1/2" x 6-1/4" Plate
- Sealed Precision Ball Bearing
- 6500 lb Cap.

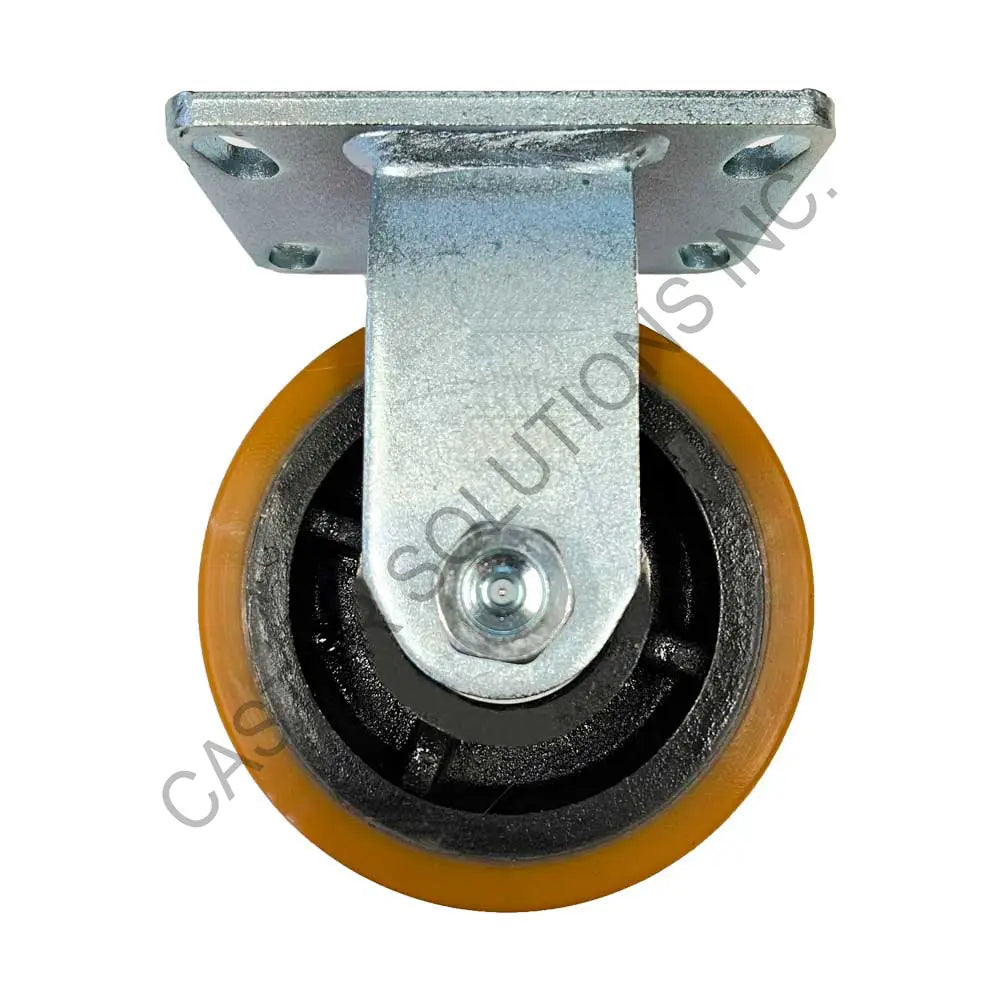

12" x 3" Rigid Plate Caster with Titan™ Polymer Wheel
58PX12LO5P19YY
- 4-1/2" x 6-1/4" Plate
- Sealed Precision Ball Bearing
- 6500 lb Cap.
