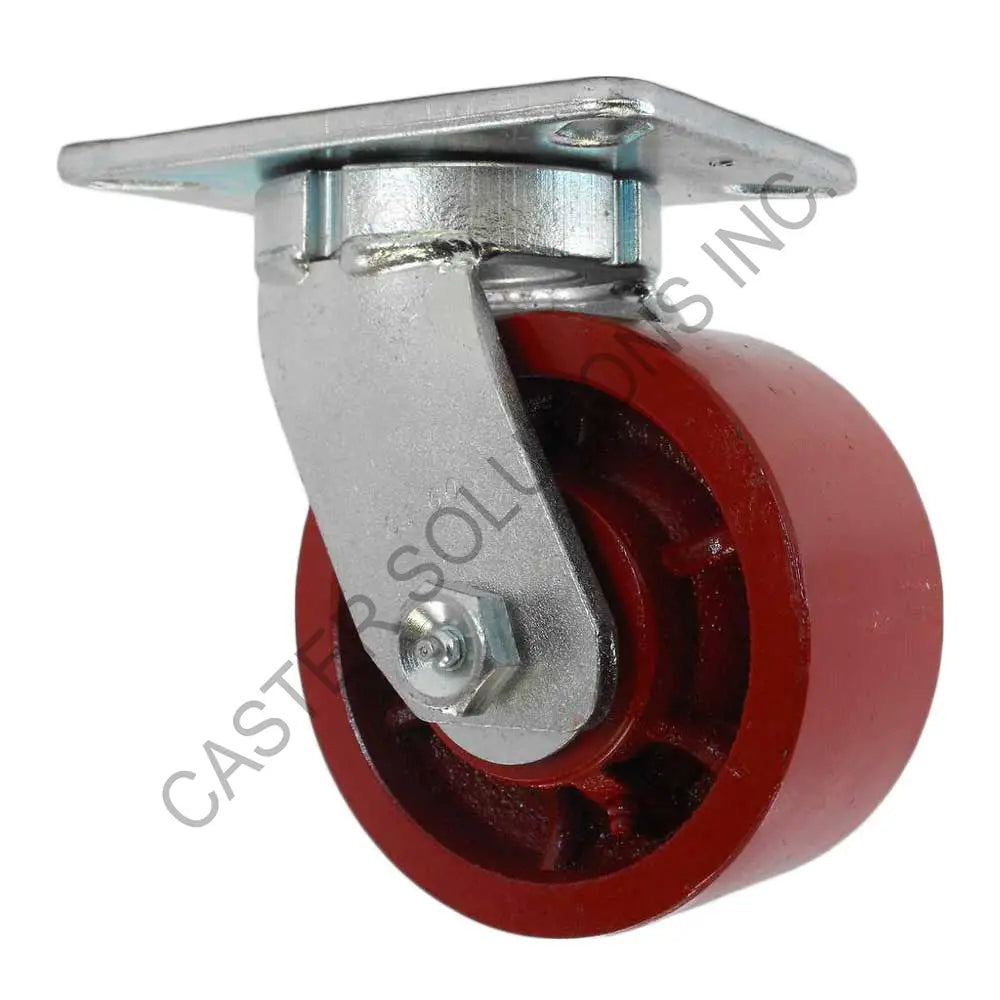

10" x 3" Swivel Plate Caster with Ductile Steel Wheel
Ductile steel is a composed of a combination of special alloys that give it higher weight capacities than cast iron; while being more economical than drop forged steel. Also referred to as malleable iron; material may flex rather than cracking or breaking when submitted to an extreme shock load. Features an extra thick walled, heavy-duty core, hub and tread face. Roller bearings are standard, with precision & tapered bearings as an option.
Idea for use on rough surfaces and has good rolling resistance under any condition.
The casters in our 61/62 Kingpinless Series are heavy duty and forged, with capacities up to 7,000 lb.The series offers matching swivel and rigid casters constructed with 5/16" thick swivel head from hot forged ASTM1045 steel. The legs are 3/8" thick and the axle used is 3/4" thick making these casters hold up to the toughest of jobs. The swivel casters feature a 3' precisely machined kingpinless raceway of 1/2" ball bearings.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" Slotted to 4-1/8" x 6-1/8" |
| Wheel Diameter | 10.0" |
| Tread Width | 3.0" |
| Wheel Name | Ductile Steel |
| Wheel Tread Material | Steel |
| Wheel Core Material | Steel |
| Tread Profile | Flat |
| Bearing Type | Roller Bearing |
| Overall Height | 12.5" |
| Load Capacity | 6000 lb |
| Duty Rating | Heavy Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
10" x 3" Swivel Plate Caster with Ductile Steel Wheel
61DS10LR2425YY
- 5-1/4" x 7-1/4" Plate
- Roller Bearing
- 6000 lb Cap.

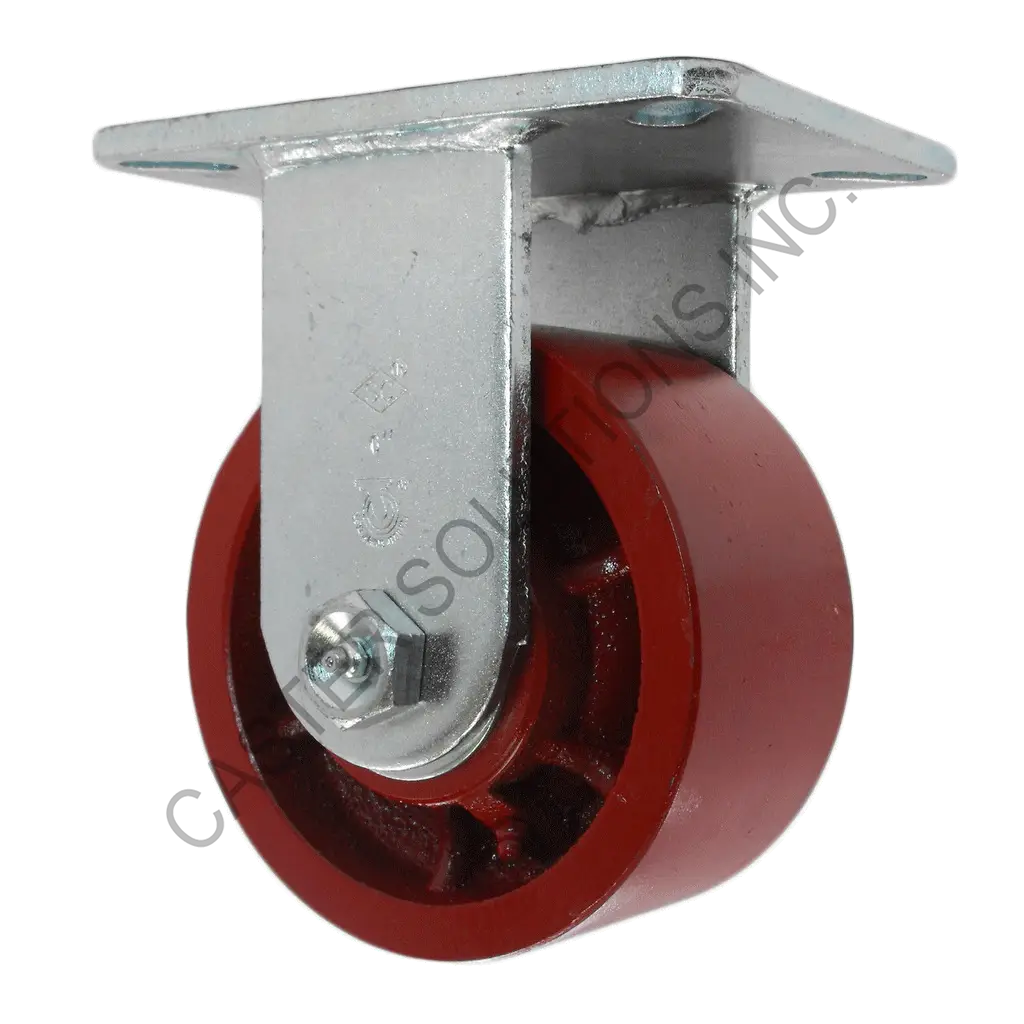

10" x 3" Rigid Plate Caster with Ductile Steel Wheel
62DS10LR2425YY
- 5-1/4" x 7-1/4" Plate
- Roller Bearing
- 6000 lb Cap.
