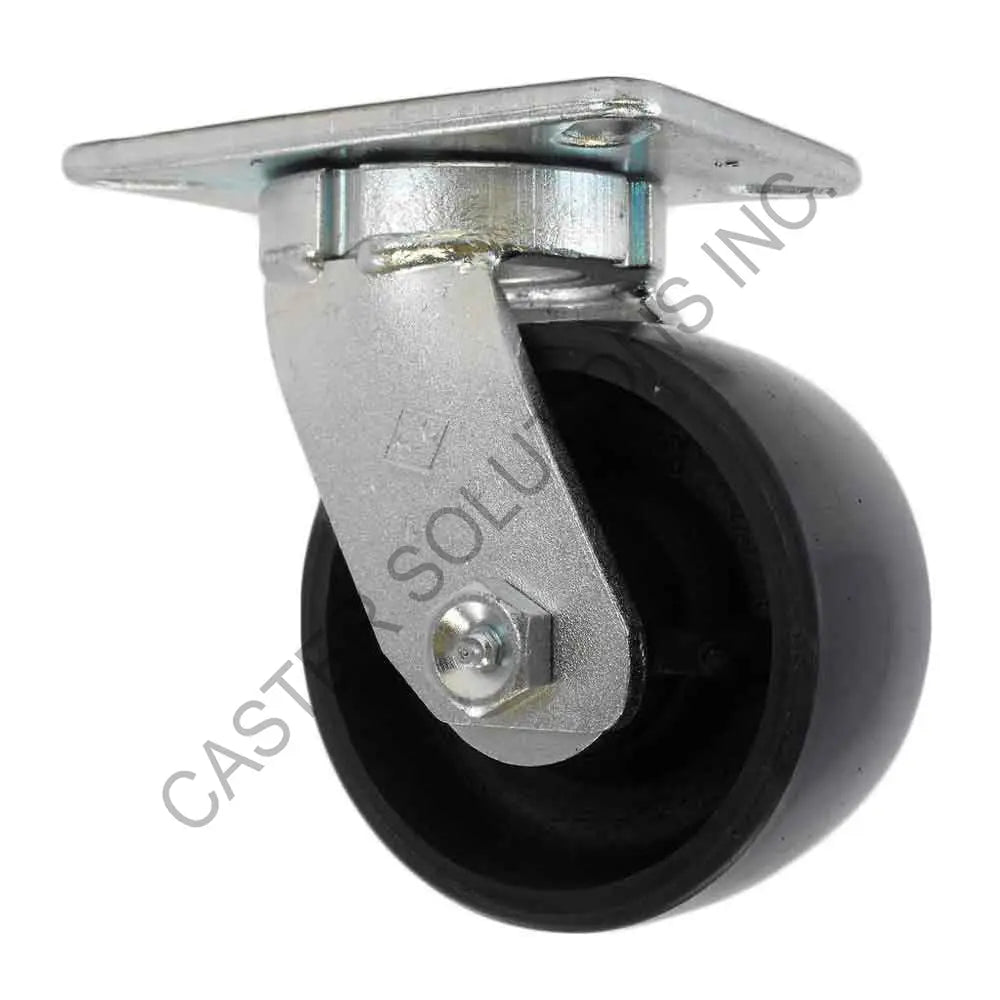

10" x 3" Swivel Plate Caster with Energy Saver Polyon Wheel
Our Energy Saver Polyon wheel is a crowned polyurethane tread bonded to a heavy-duty solid cast iron core. Offering high capacities and floor protection. These wheels are more ergonomic when compared to traditional Poly-On-Iron wheels.
The casters in our 61/62 Kingpinless Series are heavy duty and forged, with capacities up to 7,000 lb.The series offers matching swivel and rigid casters constructed with 5/16" thick swivel head from hot forged ASTM1045 steel. The legs are 3/8" thick and the axle used is 3/4" thick making these casters hold up to the toughest of jobs. The swivel casters feature a 3' precisely machined kingpinless raceway of 1/2" ball bearings.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" Slotted to 4-1/8" x 6-1/8" |
| Wheel Diameter | 10.0" |
| Tread Width | 3.0" |
| Wheel Name | Energy Saver Polyon |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Cast Iron |
| Tread Profile | Crowned |
| Wheel Color | Blue |
| Wheel Durometer | Shore A 95 ( /-5) |
| Bearing Type | Roller Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 12.5" |
| Load Capacity | 3000 lb |
| Duty Rating | Heavy Duty |
