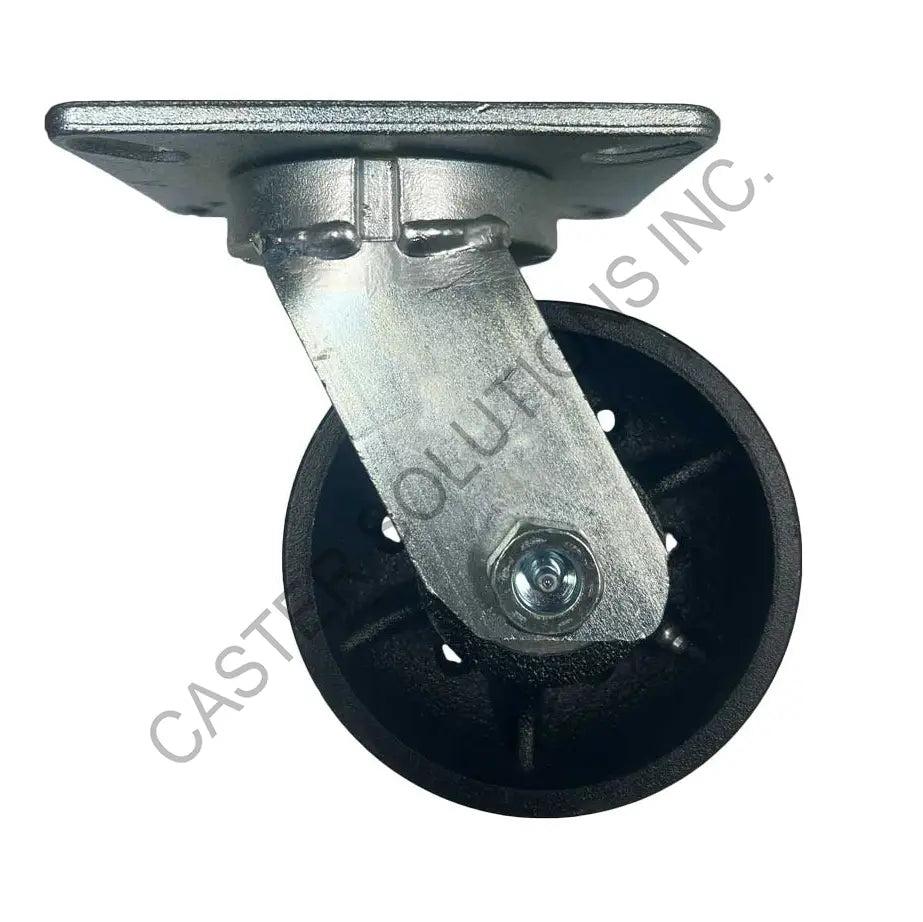

10" x 3" Swivel Plate Caster with Cast Iron V-Groove Wheel
Made specifically for use on inverted angle iron track; although they can also be used on flat surfaces. Each wheel has a precisely machined 90° V-groove with a relief groove which enables load equalization. This V-Groove wheel is composed of Cast Iron. It has tensile strength of 30,000 PSI and a temperature range of -45 Degrees Fahrenheit to 600 Degrees.
Excellent for heavy-duty guided industrial applications, assembly lines, paint lines, gates and where precise alignment is necessary.
The casters in our 61/62 Kingpinless Series are heavy duty and forged, with capacities up to 7,000 lb.The series offers matching swivel and rigid casters constructed with 5/16" thick swivel head from hot forged ASTM1045 steel. The legs are 3/8" thick and the axle used is 3/4" thick making these casters hold up to the toughest of jobs. The swivel casters feature a 3' precisely machined kingpinless raceway of 1/2" ball bearings.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" Slotted to 4-1/8" x 6-1/8" |
| Wheel Diameter | 10.0" |
| Tread Width | 3.0" |
| Wheel Name | Cast Iron V-Groove |
| Wheel Tread Material | Cast Iron |
| Wheel Core Material | Cast Iron |
| Tread Profile | Flat |
| Bearing Type | Roller Bearing |
| Overall Height | 12.5" |
| Load Capacity | 3500 lb |
| Duty Rating | Heavy Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
10" x 3" Swivel Plate Caster with Cast Iron V-Groove Wheel
61VG10LT2425YY
- 5-1/4" x 7-1/4" Plate
- Roller Bearing
- 3500 lb Cap.

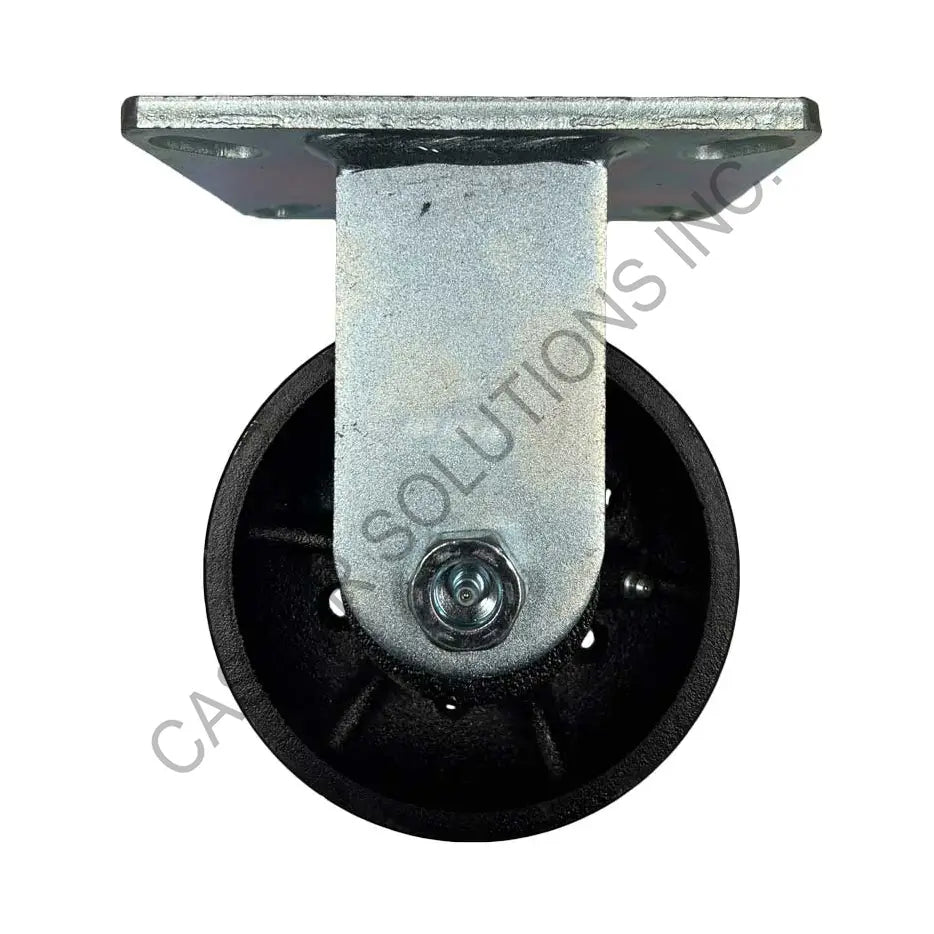

10" x 3" Rigid Plate Caster with Cast Iron V-Groove Wheel
