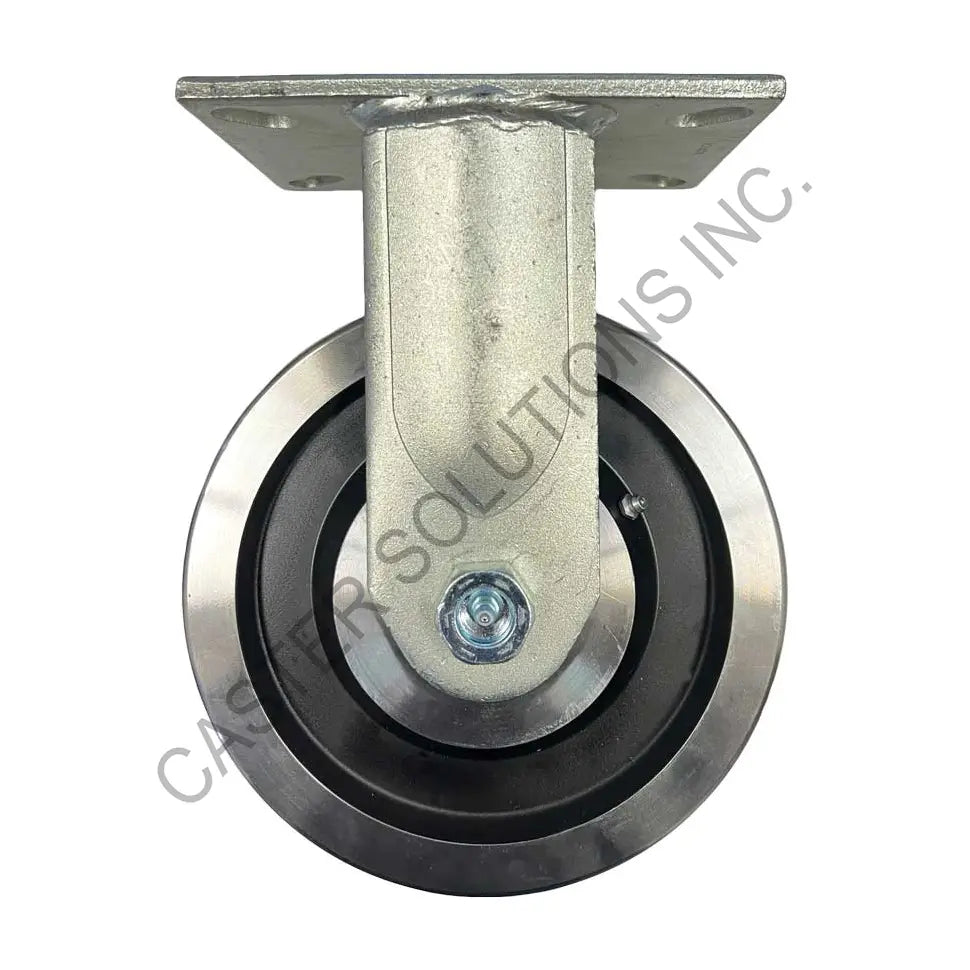

10" x 3" Rigid Plate Caster with Forged Steel Wheel
Our Forged Steel wheels are drop forged from ASTM1045 high carbon steel. The forging process results in a increased ductility and tensile strength by enhancing the metals grain structure. They feature a tensile strength of 60,000 PSI and a hardness of Rockwell 80 B. These wheels can withstand tempuratures up to 1,300 degrees fahrenheit.
The casters in our 61/62 Kingpinless Series are heavy duty and forged, with capacities up to 7,000 lb.The series offers matching swivel and rigid casters constructed with 5/16" thick swivel head from hot forged ASTM1045 steel. The legs are 3/8" thick and the axle used is 3/4" thick making these casters hold up to the toughest of jobs. The swivel casters feature a 3' precisely machined kingpinless raceway of 1/2" ball bearings.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 5-1/4" x 7-1/4" |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" Slotted to 4-1/8" x 6-1/8" |
| Wheel Diameter | 10.0" |
| Tread Width | 3.0" |
| Wheel Name | Forged Steel |
| Wheel Tread Material | Steel |
| Wheel Core Material | Steel |
| Tread Profile | Flat |
| Bearing Type | Roller Bearing |
| Overall Height | 12.5" |
| Load Capacity | 6000 lb |
| Duty Rating | Heavy Duty |
