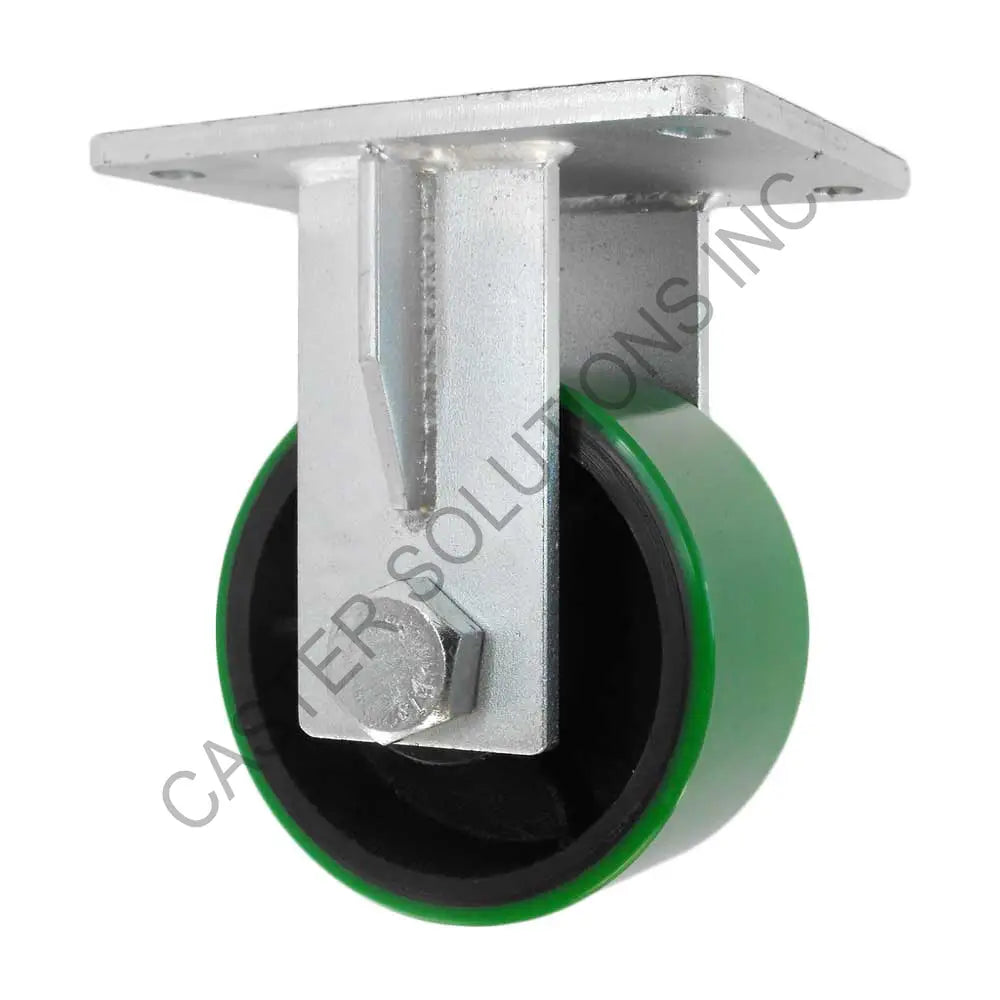

6" x 3" Rigid Plate Caster with Polyon™ Wheel
Our Polyon wheel is comprised of a polyurethane tread bonded to a solid cast-iron core. It offers a high capacity while also providing floor protection with its non-marking tread. It is resistant to most solvents, oil, grease, annd water.
Great for automotive plants, towlines applications and general warehouse carts.
The casters in our 63/34 Kingpinless Series are ranked for extreme heavy duty use, with capacities up to 20,000 lb.The series offers matching swivel and rigid casters constructed with thick top plates from hot forged ASTM1045 steel. The legs are 3/8" thick and the axle used is a 1" thick Grade 5 bolt making these casters hold up to the toughest of jobs. The swivel casters feature a forged 1/2" thick swivel head and a 4-1/2" precisely machined kingpinless raceway of 5/8" hardened ball bearings.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 6-1/4" x 7-1/2" |
| Bolt Hole Pattern | 4-1/2" x 6" Slotted to 4-1/8" x 6-1/8" |
| Wheel Diameter | 6.0" |
| Tread Width | 3.0" |
| Wheel Name | Polyon™ |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Cast Iron |
| Tread Profile | Flat |
| Wheel Color | Green |
| Wheel Durometer | Shore A 95 ( /-5) |
| Bearing Type | Roller Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 8.5" |
| Load Capacity | 2000 lb |
| Duty Rating | Extreme Duty |
