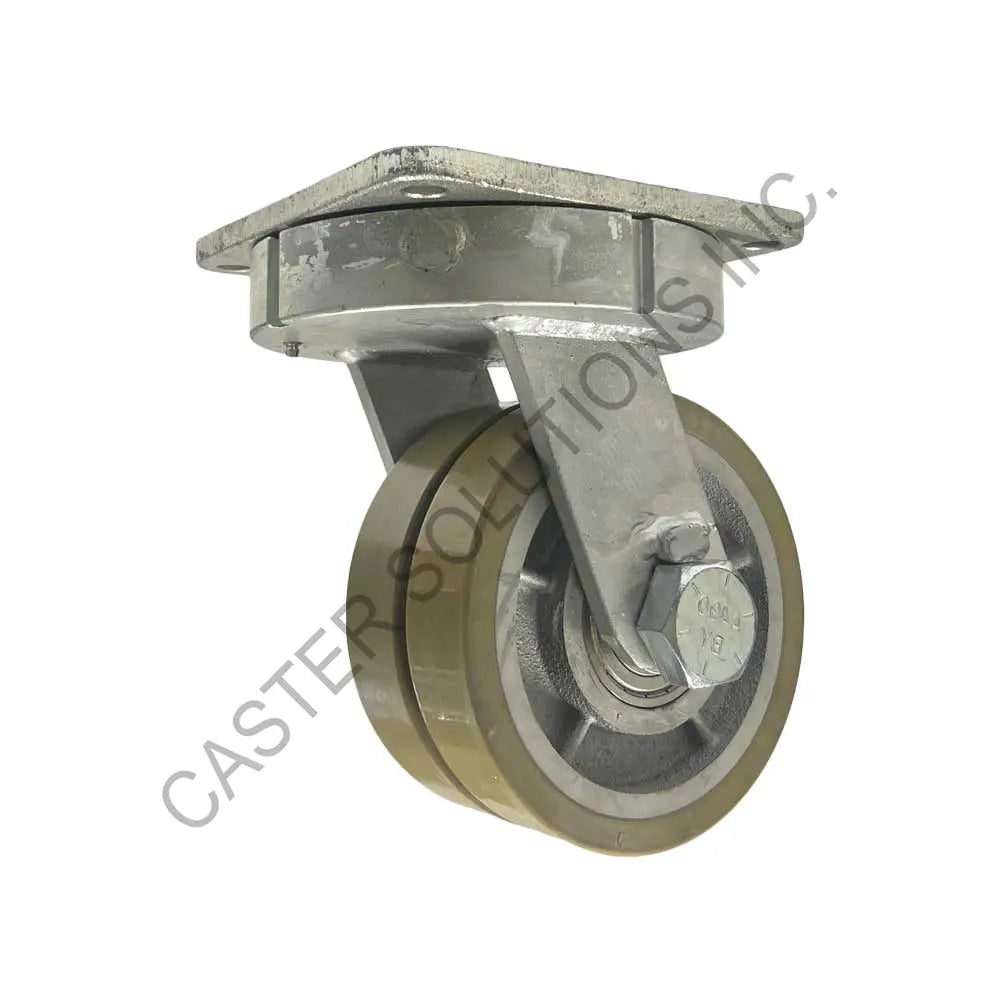

10" x 4" Swivel Plate Caster with Dual Ergo Wheel

Our Dual-Ergo wheels were designed to replace tradional single wheels for better maneuvering while not widening the footprint and swivel radius. These dual wheels alone have shown a minimum 35-50% push/pull force reduction. As well as proven to reduce rolling resistance and helps with the swiveling action. Each wheel has 2 independent rolling wheels and are maintenance free for the life of the wheel. They feature large sealed precision ball bearings and a non-marking tread.

Great for manufacturing plants, tow lines and where stringent push/pull forces are required. Commonly used at airline manufacturers for working platforms next to the airplane on the assembly line.

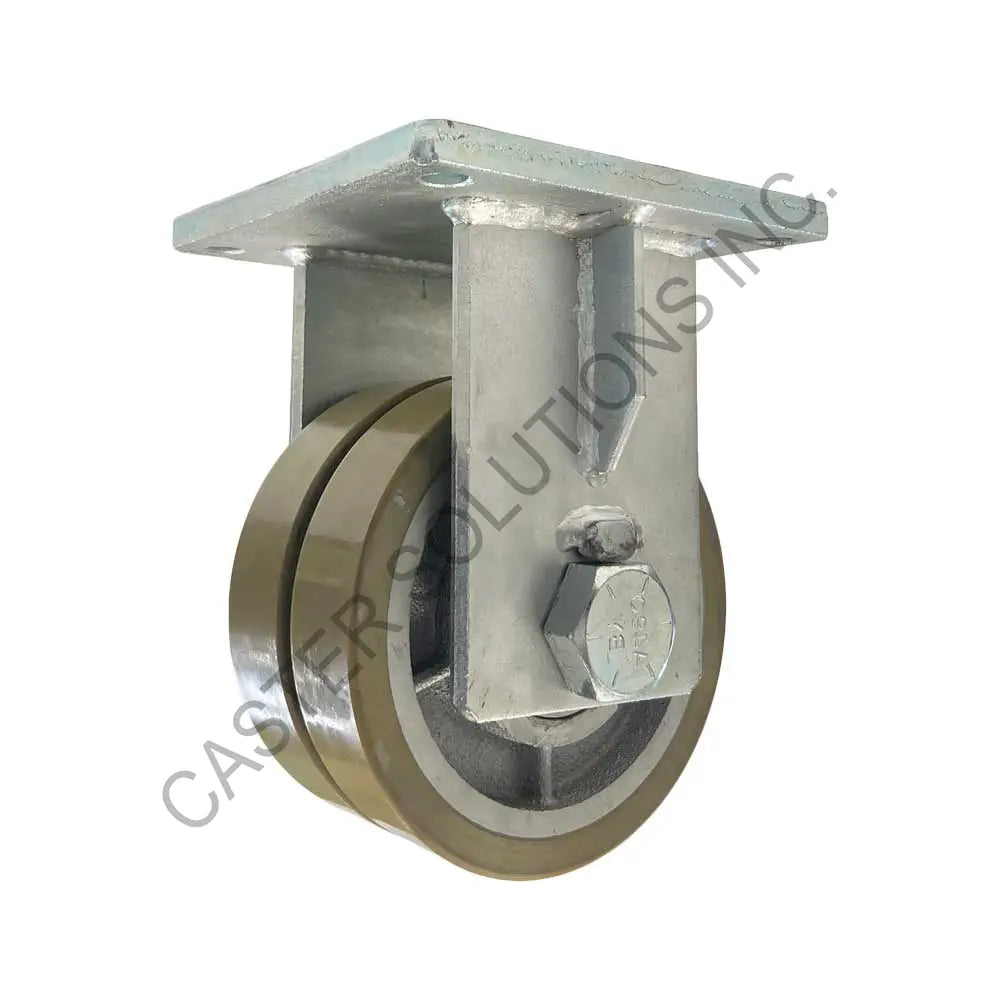

The 65/66 Series offers matching extreme duty swivel and rigid kingpinless casters with capacities up to 40,000 lb. Constructed from hot forged ASTM1045 steel with 1/2″ thick double-welded legs and a 1-1/4″ Grade 8 axle bolt. Features a forged 5/8″ thick swivel head with a 7″ precisely machined kingpinless raceway using 3/4″ hardened ball bearings. The swivel casters feature a forged 5/8" thick swivel head and a 7" precisely machined kingpinless raceway of 3/4" hardened ball bearings.
