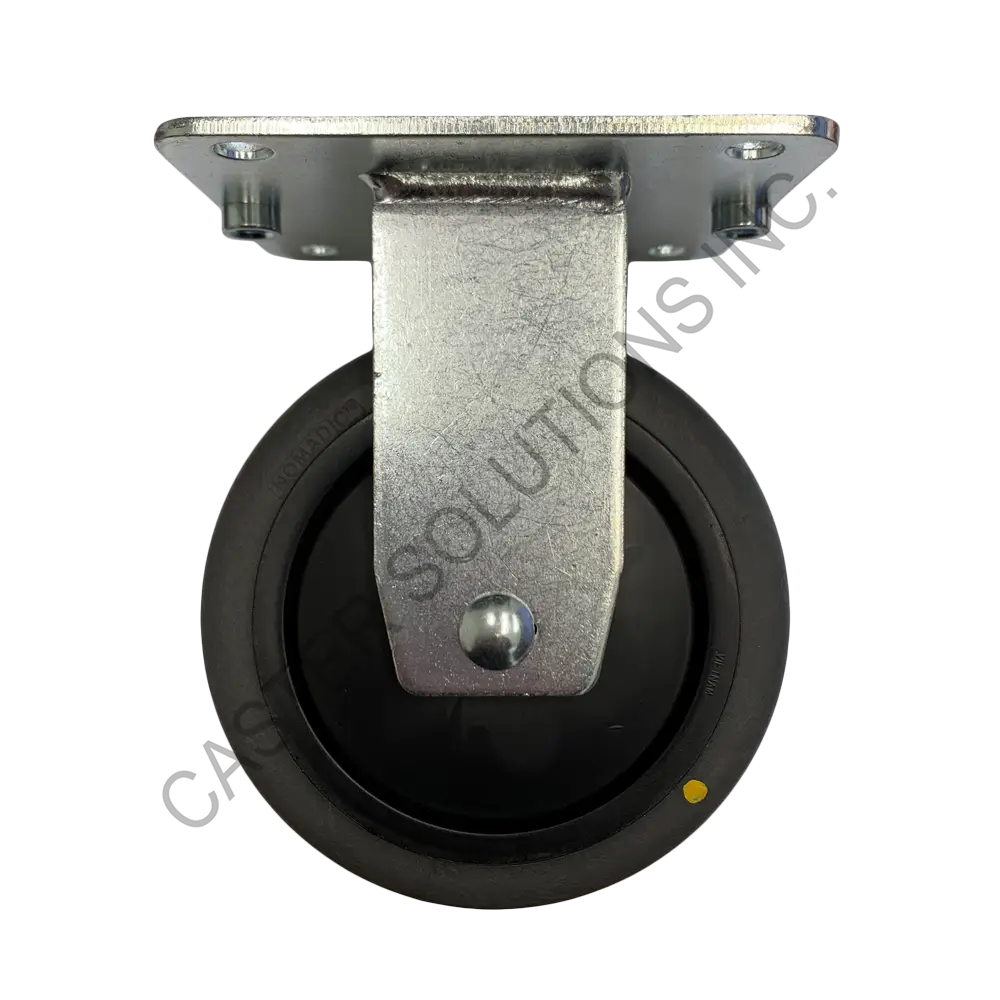

5" x 1.25" Creform Rigid Plate Caster with Conductive Thermoplastic Rubber Wheel
The Conductive Thermoplastic Rubber wheel is compounded with a special metal fiber to ensure sufficient conductivity through the line of it. These wheels are tested and approved by Federal Specifications FFC 88C, as well as rigorously tested to exceed Federal ESD Standard.
Our Creform® Series offers specialty casters designed to mount directly to Creform® pipe and structure systems. Plate-mount variants bolt directly to structures using metric mating reinforcement metal straps, while stem-mount variants insert directly into Creform® pipe. Ideal for cart systems, workstation flow racks, and material handling applications built with Creform® modular tubing.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 98mm x 102mm |
| Bolt Hole Pattern | 80mm x 90mm |
| Wheel Diameter | 5.0" |
| Tread Width | 1.25" |
| Wheel Name | Conductive Thermoplastic Rubber |
| Wheel Tread Material | Thermoplastic |
| Wheel Core Material | Polyolefin |
| Tread Profile | Round |
| Wheel Color | Gray |
| Wheel Durometer | Shore A 95 (+/-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 6.0" |
| Load Capacity | 350 lb |
| Duty Rating | Light-Medium Duty |
