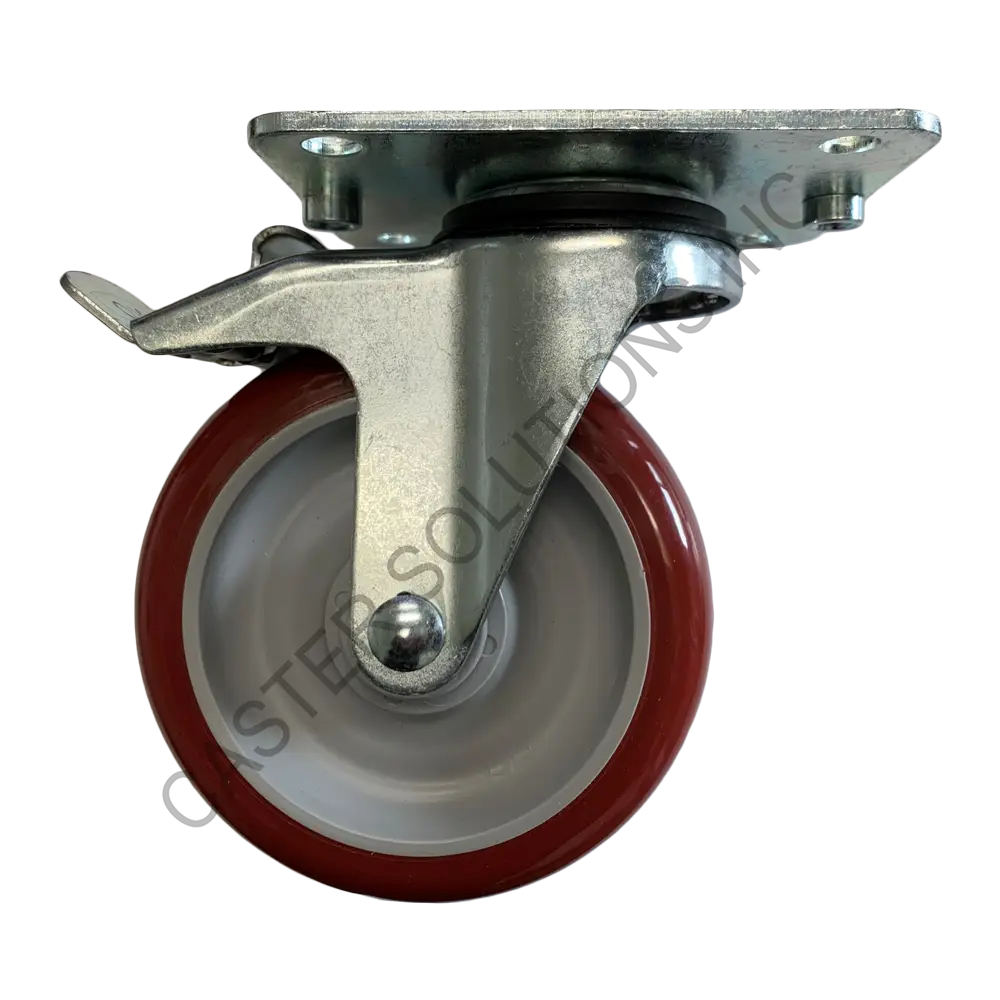

5" x 1.25" Creform Total-locking Plate Caster with Polymadic™ Wheel
Regular price
$20.62
Sale price
Regular price
Shipping calculated at checkout.
The Polymadic™ wheel is comprised of a high performance UV resistant polyurethane tread mechanically locked to a polyolefin core.
Our Creform® Series offers specialty casters designed to mount directly to Creform® pipe and structure systems. Plate-mount variants bolt directly to structures using metric mating reinforcement metal straps, while stem-mount variants insert directly into Creform® pipe. Ideal for cart systems, workstation flow racks, and material handling applications built with Creform® modular tubing.
Specifications
| Caster Type | Total-locking |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 98mm x 102mm |
| Bolt Hole Pattern | 80mm x 90mm |
| Wheel Diameter | 5.0" |
| Tread Width | 1.25" |
| Wheel Name | Polymadic™ |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Polyolefin |
| Tread Profile | Round |
| Wheel Color | Maroon |
| Wheel Durometer | Shore D 60 (+/-5) |
| Bearing Type | Annular Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 6.0" |
| Load Capacity | 350 lb |
| Duty Rating | Light-Medium Duty |
