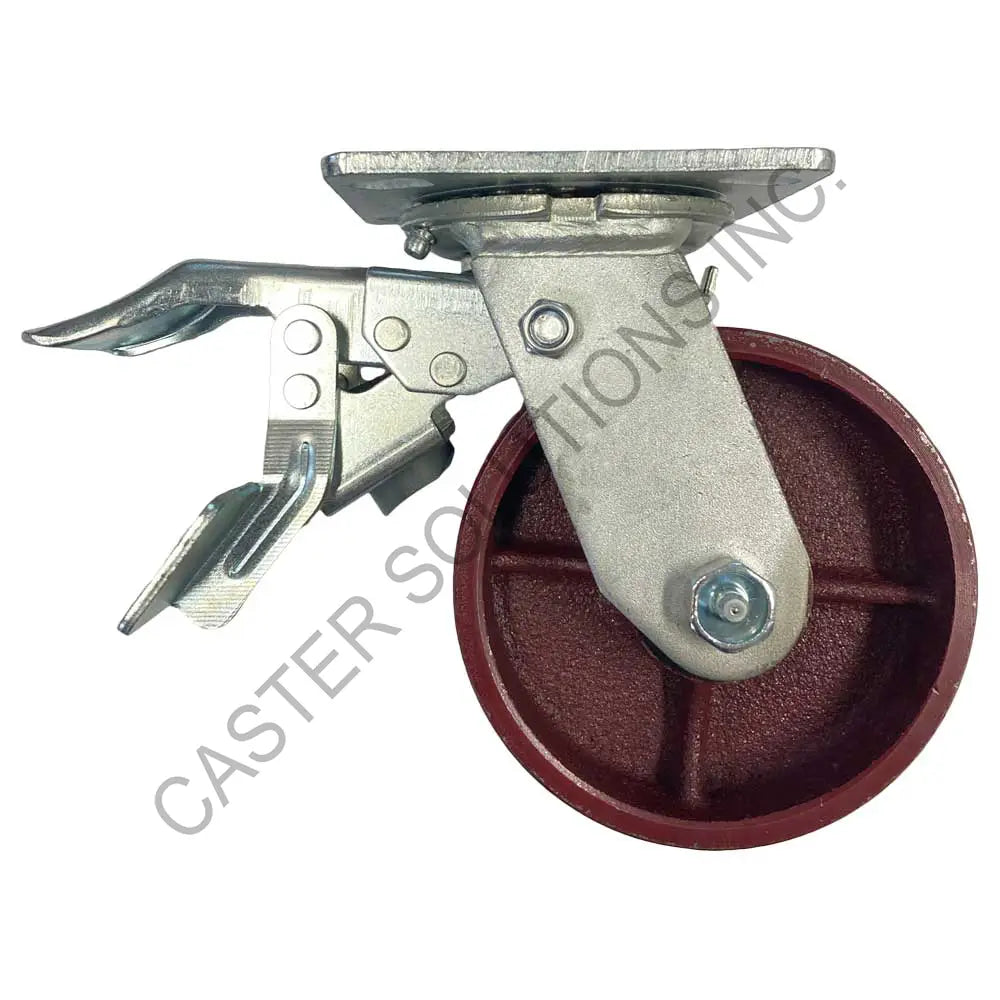

4" x 2" Total-locking Plate Caster with Ductile Steel Wheel
Ductile steel is a composed of a combination of special alloys that give it higher weight capacities than cast iron; while being more economical than drop forged steel. Also referred to as malleable iron; material may flex rather than cracking or breaking when submitted to an extreme shock load. Features an extra thick walled, heavy-duty core, hub and tread face. Roller bearings are standard, with precision & tapered bearings as an option.
Idea for use on rough surfaces and has good rolling resistance under any condition.
The 27/28/DT/FT medium duty series is one of our most popular series of casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters with capacities up to 1,250 lb. These casters use a 2" wide wheel as standard.
Specifications
| Caster Type | Total-locking |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 4.0" |
| Tread Width | 2.0" |
| Wheel Name | Ductile Steel |
| Wheel Tread Material | Steel |
| Wheel Core Material | Steel |
| Tread Profile | Flat |
| Wheel Color | Red |
| Wheel Durometer | 45,000 PSI |
| Bearing Type | Roller Bearing |
| Overall Height | 5.625" |
| Load Capacity | 1250 lb |
| Duty Rating | Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
4" x 2" Swivel Plate Caster with Ductile Steel Wheel
27DS40JR0417YY
- 4" x 4-1/2" Plate
- Roller Bearing
- 1250 lb Cap.
4" x 2" Rigid Plate Caster with Ductile Steel Wheel
28DS40JR0417YY
- 4" x 4-1/2" Plate
- Roller Bearing
- 1250 lb Cap.
4" x 2" Total-locking Plate Caster with Ductile Steel Wheel
DTDS40JR0417YY
- 4" x 4-1/2" Plate
- Roller Bearing
- 1250 lb Cap.
4" x 2" Total-locking Plate Caster with Ductile Steel Wheel
FTDS40JR0417YY
- 4" x 4-1/2" Plate
- Roller Bearing
- 1250 lb Cap.
