5" x 2" Total-locking Plate Caster with Ergolastomer™ Wheel
Our Ergolastomer wheel is a solid cast polyurethane-elastomer tread which is mechanically locked to a Glass-Filled Nylon core. This caster is very strong and durable with high impact and abrasion resistance. Its sealed precision ball bearings and crowned tread significantly helps reduce rolling resistance, swiveling action and push/pull forces required to move. These wheels are maintenance free and non-marking with virutally no tread wear.
The 27/28/DT/FT medium duty series is one of our most popular series of casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters with capacities up to 1,250 lb. These casters use a 2" wide wheel as standard.
Specifications
| Caster Type | Total-locking |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 5.0" |
| Tread Width | 2.0" |
| Wheel Name | Ergolastomer™ |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Polyurethane |
| Tread Profile | Round |
| Wheel Color | Gray |
| Wheel Durometer | Shore D 65 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 6.5" |
| Load Capacity | 1250 lb |
| Duty Rating | Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
5" x 2" Swivel Plate Caster with Ergolastomer™ Wheel
27HU50JI6417YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 1250 lb Cap.

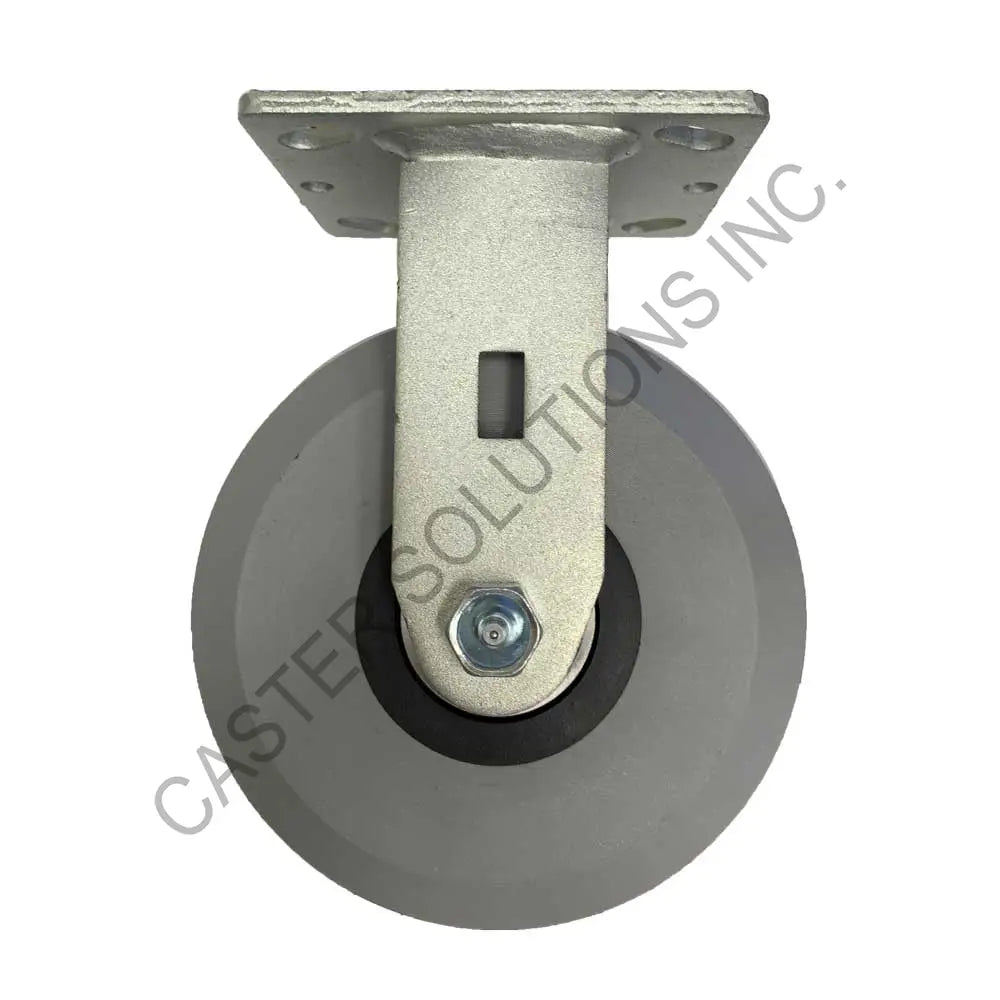

5" x 2" Rigid Plate Caster with Ergolastomer™ Wheel
28HU50JI6417YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 1250 lb Cap.
5" x 2" Total-locking Plate Caster with Ergolastomer™ Wheel
DTHU50JI6417YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 1250 lb Cap.
5" x 2" Total-locking Plate Caster with Ergolastomer™ Wheel
FTHU50JI6417YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 1250 lb Cap.
