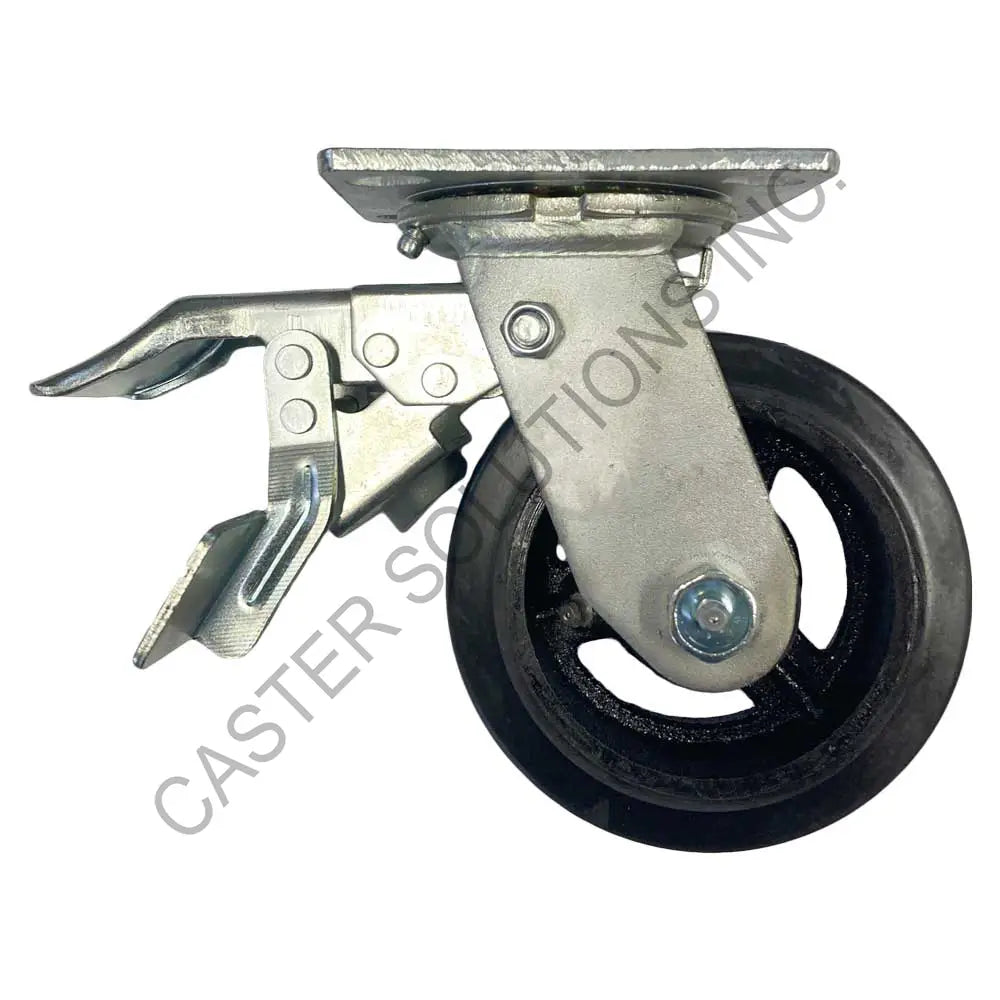

4" x 2" Total-locking Plate Caster with Mold-On Rubber Wheel
The Mold-on Rubber wheel has a rubber tread vulcanized to heavy-duty cast iron core. Offers a shock absorbing semi-cushioned ride with floor protection and a quiet rolling operation. Rolls well over small debris, rough floors, cracks, floor joints, other common obstacles. Economically priced cushion wheel.
The black rubber tread may leave floor marks; if non-marking wheels are required we suggest using another wheel. Works well in outdoor environments; however, cast iron core can rust; if this is an issue, look at using aluminum or plastic core wheels.
Ideal for platform and lumber carts. Widely used on commercial dumpsters.
The 27/28/DT/FT medium duty series is one of our most popular series of casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters with capacities up to 1,250 lb. These casters use a 2" wide wheel as standard.
Specifications
| Caster Type | Total-locking |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 4.0" |
| Tread Width | 2.0" |
| Wheel Name | Mold-On Rubber |
| Wheel Tread Material | Rubber |
| Wheel Core Material | Cast Iron |
| Tread Profile | Round |
| Wheel Color | Black |
| Wheel Durometer | Shore A 80 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Overall Height | 5.625" |
| Load Capacity | 400 lb |
| Duty Rating | Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
4" x 2" Swivel Plate Caster with Mold-On Rubber Wheel
27RS40JB6017YY
- 4" x 4-1/2" Plate
- Precision Ball Bearing
- 400 lb Cap.
4" x 2" Rigid Plate Caster with Mold-On Rubber Wheel
28RS40JB6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 400 lb Cap.
4" x 2" Total-locking Plate Caster with Mold-On Rubber Wheel
DTRS40JB6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 400 lb Cap.
4" x 2" Total-locking Plate Caster with Mold-On Rubber Wheel
FTRS40JB6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 400 lb Cap.
