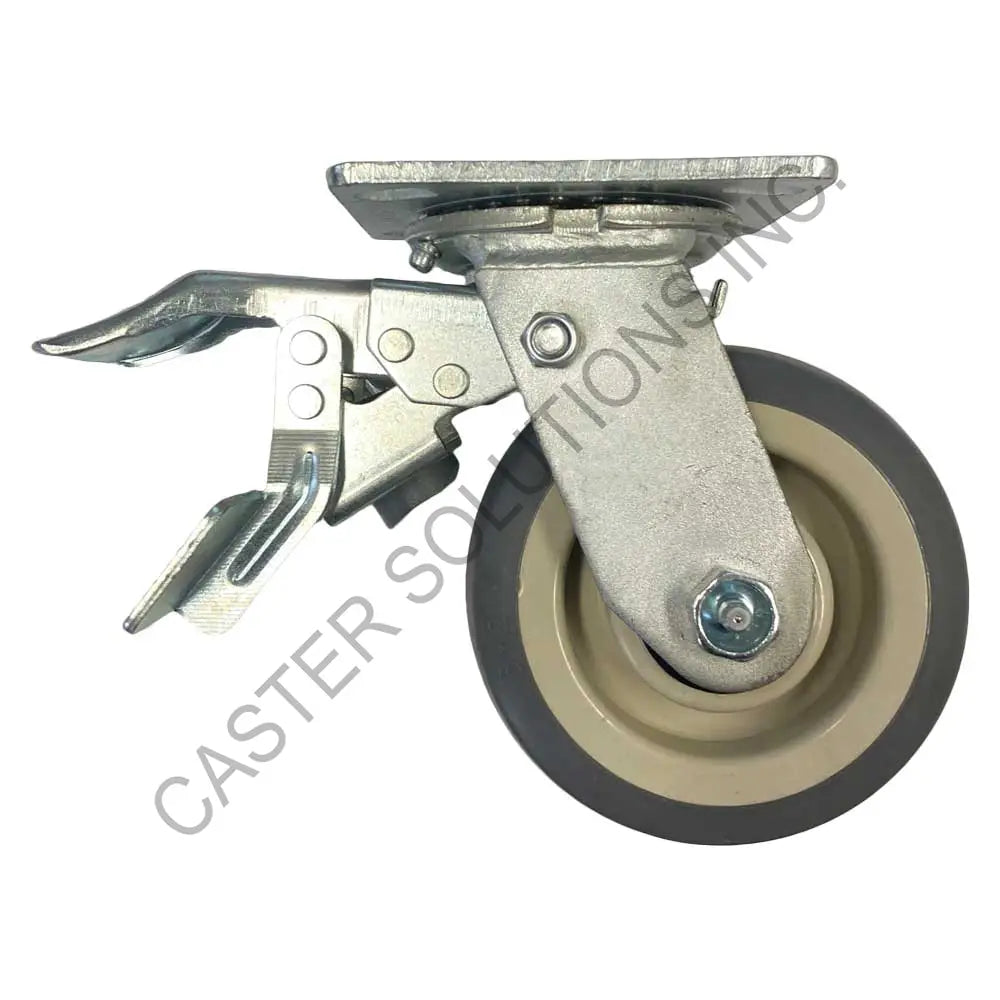

4" x 2" Total-locking Plate Caster with Thermo-Pro® Wheel
The Thermo-Pro wheel is a non-marking grey thermal rubber bonded to a polyolefin core. Resistant to cleaning chemicals, acids, alcohol and water. Used in many hospitals, seafood plants and restaurants, normally where there is either food preperation or delivery. Also a favorite choice for industrial linen facilities.
The 27/28/DT/FT medium duty series is one of our most popular series of casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters with capacities up to 1,250 lb. These casters use a 2" wide wheel as standard.
Specifications
| Caster Type | Total-locking |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 4.0" |
| Tread Width | 2.0" |
| Wheel Name | Thermo-Pro® |
| Wheel Tread Material | Thermoplastic |
| Wheel Core Material | Polyolefin |
| Tread Profile | Round |
| Wheel Color | Gray |
| Wheel Durometer | Shore A 75 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 5.625" |
| Load Capacity | 300 lb |
| Duty Rating | Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
4" x 2" Swivel Plate Caster with Thermo-Pro® Wheel
27TP40JI6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 300 lb Cap.
4" x 2" Rigid Plate Caster with Thermo-Pro® Wheel
28TP40JI6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 300 lb Cap.
4" x 2" Total-locking Plate Caster with Thermo-Pro® Wheel
DTTP40JI6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 300 lb Cap.
4" x 2" Total-locking Plate Caster with Thermo-Pro® Wheel
FTTP40JI6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 300 lb Cap.
