6" x 2" Total-locking Plate Caster with IronMan™ Wheel
The Ironman wheel is an exclusive compression molded compound, providing maximum strength and load capacity in a non-metal material. It can easily handle sharp temperature changes, and the sturdy design is ideal for power towing applications.
The 27/28/DT/FT medium duty series is one of our most popular series of casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters with capacities up to 1,250 lb. These casters use a 2" wide wheel as standard.
Specifications
| Caster Type | Total-locking |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 6.0" |
| Tread Width | 2.0" |
| Wheel Name | IronMan™ |
| Wheel Tread Material | Polymer |
| Wheel Core Material | Polymer |
| Tread Profile | Flat |
| Wheel Color | Black |
| Wheel Durometer | Shore D 78-82 |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 7.5" |
| Load Capacity | 1250 lb |
| Duty Rating | Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.

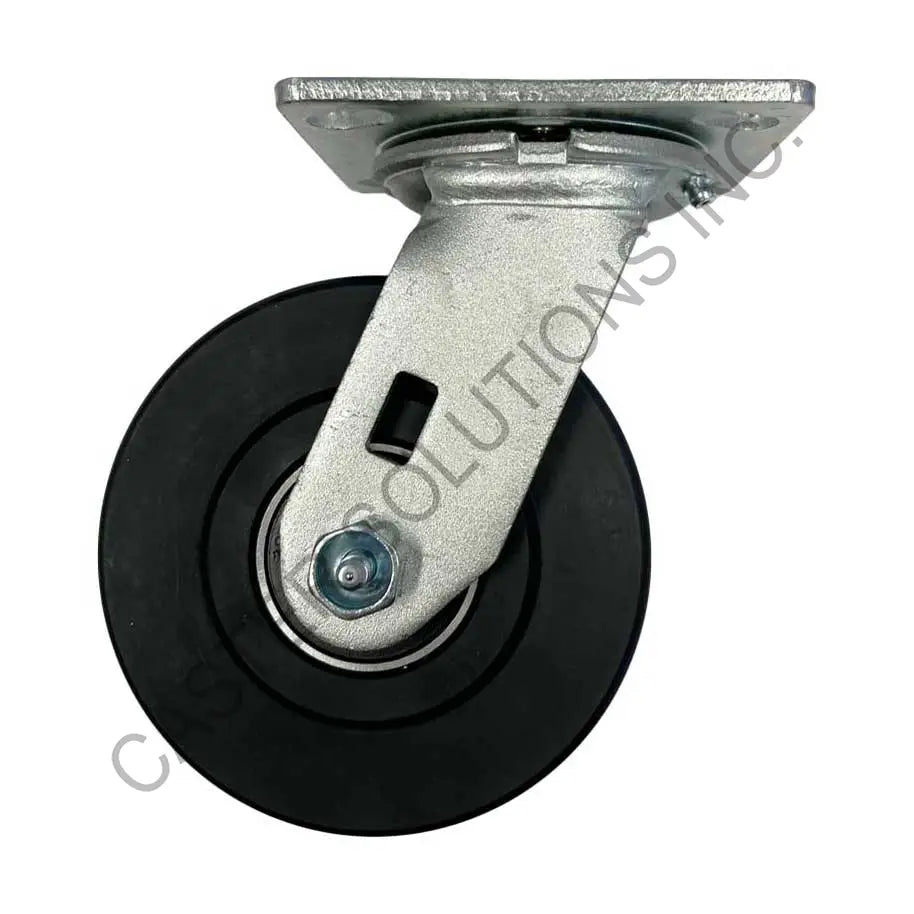

6" x 2" Swivel Plate Caster with IronMan™ Wheel
27NX60JB4P17YY
- 4" x 4-1/2" Plate
- Precision Ball Bearing
- 1250 lb Cap.

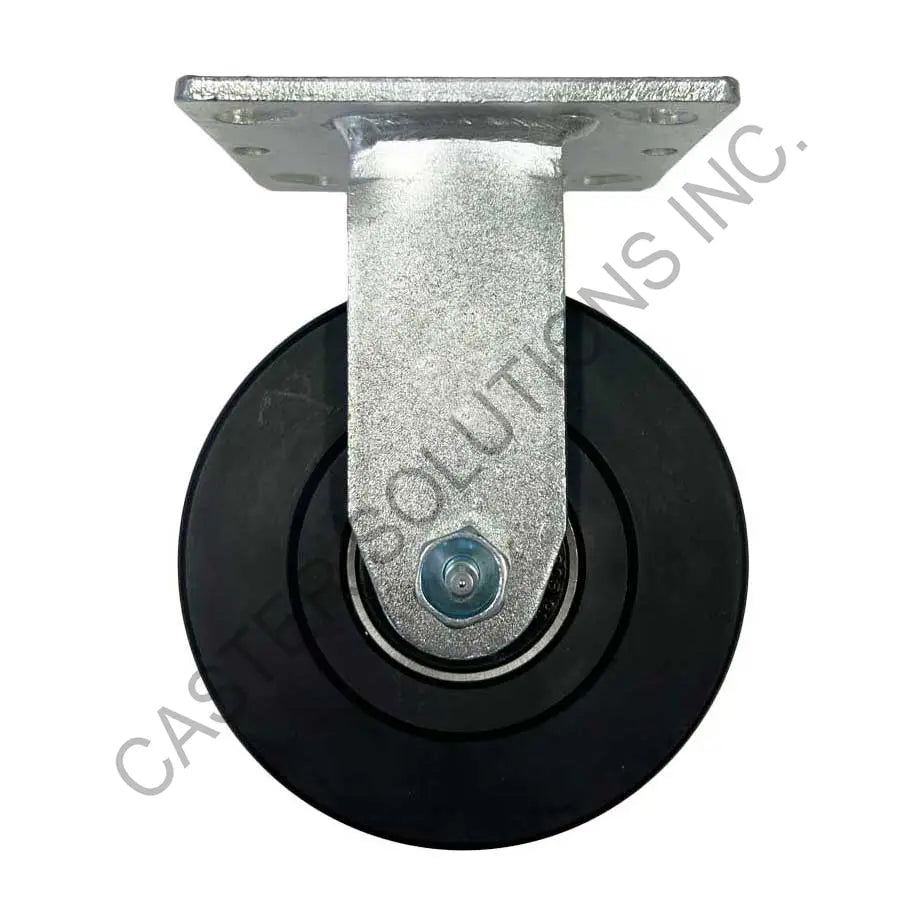

6" x 2" Rigid Plate Caster with IronMan™ Wheel
28NX60JB4P17YY
- 4" x 4-1/2" Plate
- Precision Ball Bearing
- 1250 lb Cap.

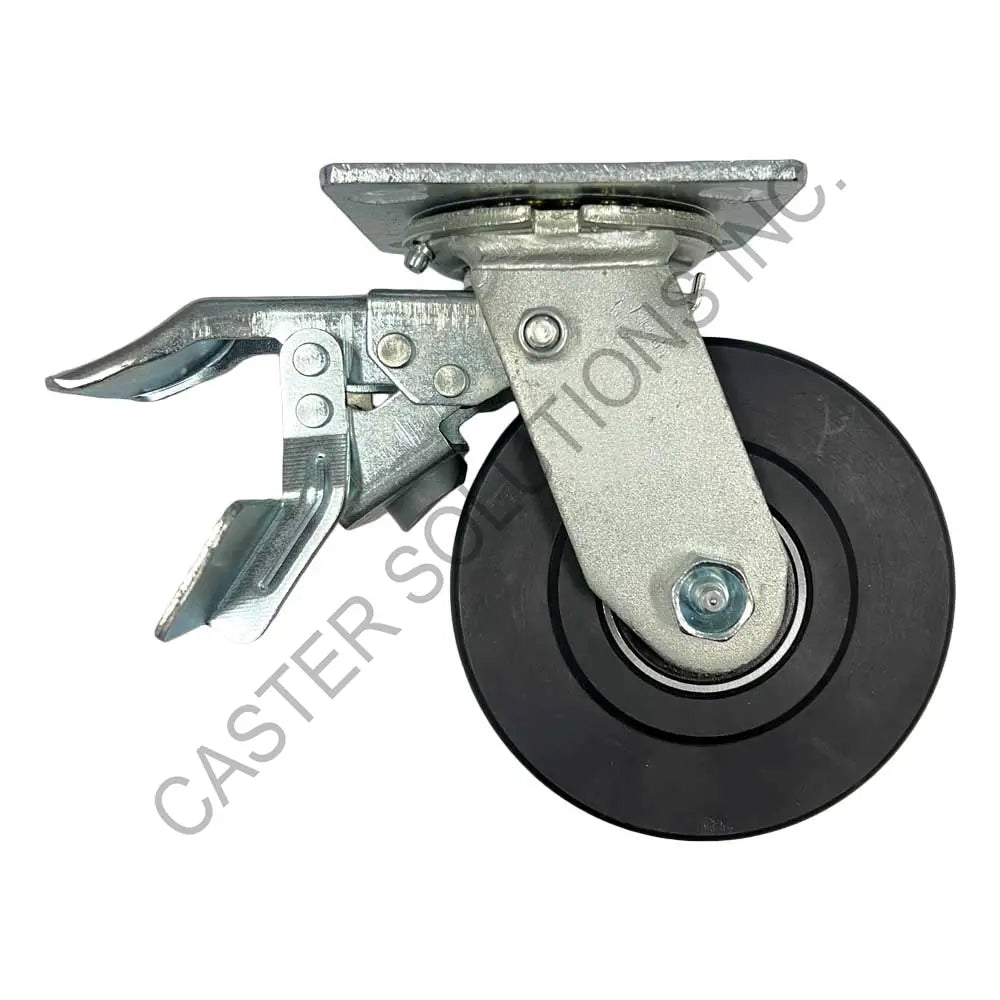

6" x 2" Total-locking Plate Caster with IronMan™ Wheel
DTNX60JB4P17YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 1250 lb Cap.
6" x 2" Total-locking Plate Caster with IronMan™ Wheel
FTNX60JB4P17YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 1250 lb Cap.
