5" x 2" Total-locking Plate Caster with Polyon-Al™ Wheel
Our Polyon Al wheel is comprised of a polyurethane tread bonded to a solid aluminum core. It offers a high capacity while also providing floor protection with its non-marking tread. It is resistant to most solvents, oil, grease, annd water.
Great for automotive plants, towlines applications and general warehouse carts.
The 27/28/DT/FT Series is our most popular series of medium duty casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters.
Specifications
| Caster Type | Total-locking |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 5.0" |
| Tread Width | 2.0" |
| Wheel Name | Polyon-Al™ |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Tread Profile | Flat |
| Wheel Color | Red |
| Wheel Durometer | Shore A 95 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 6.5" |
| Load Capacity | 1100 lb |
| Duty Rating | Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.

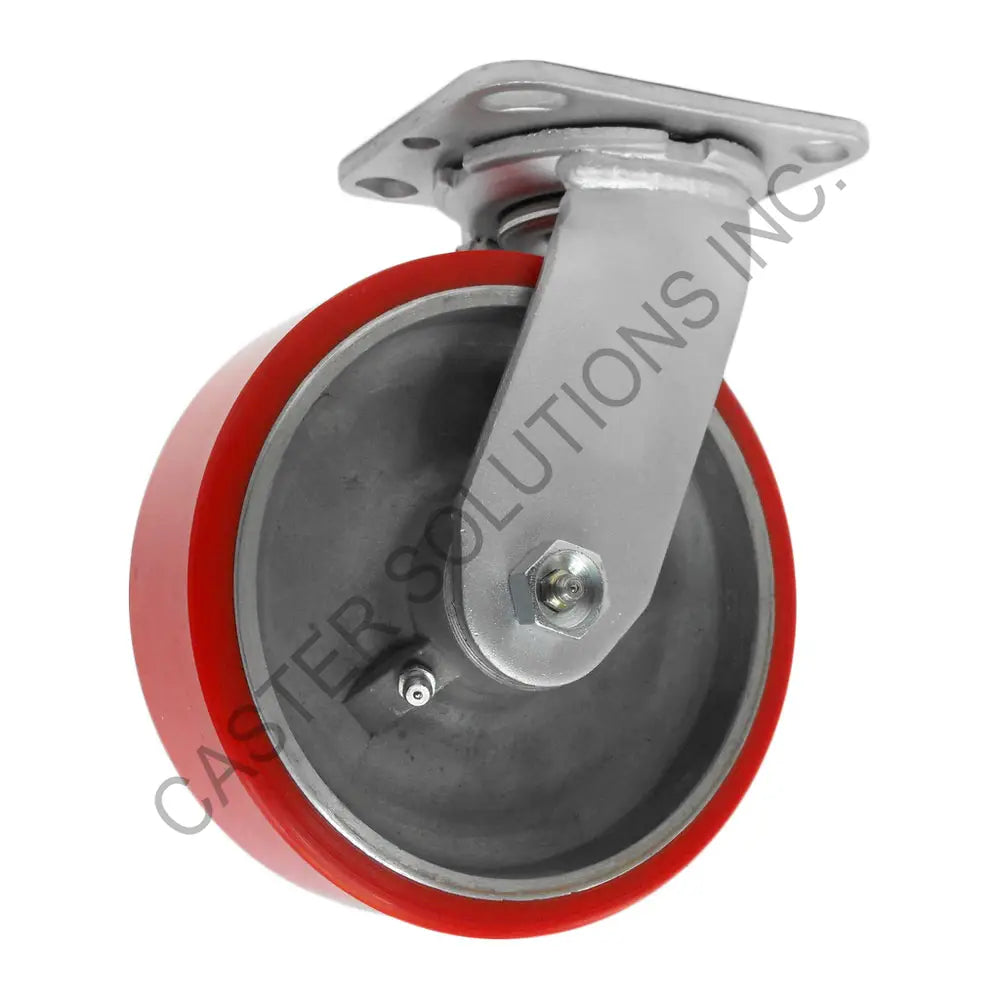

5" x 2" Swivel Plate Caster with Polyon-Al™ Wheel
27PA50JR6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 900 lb Cap.

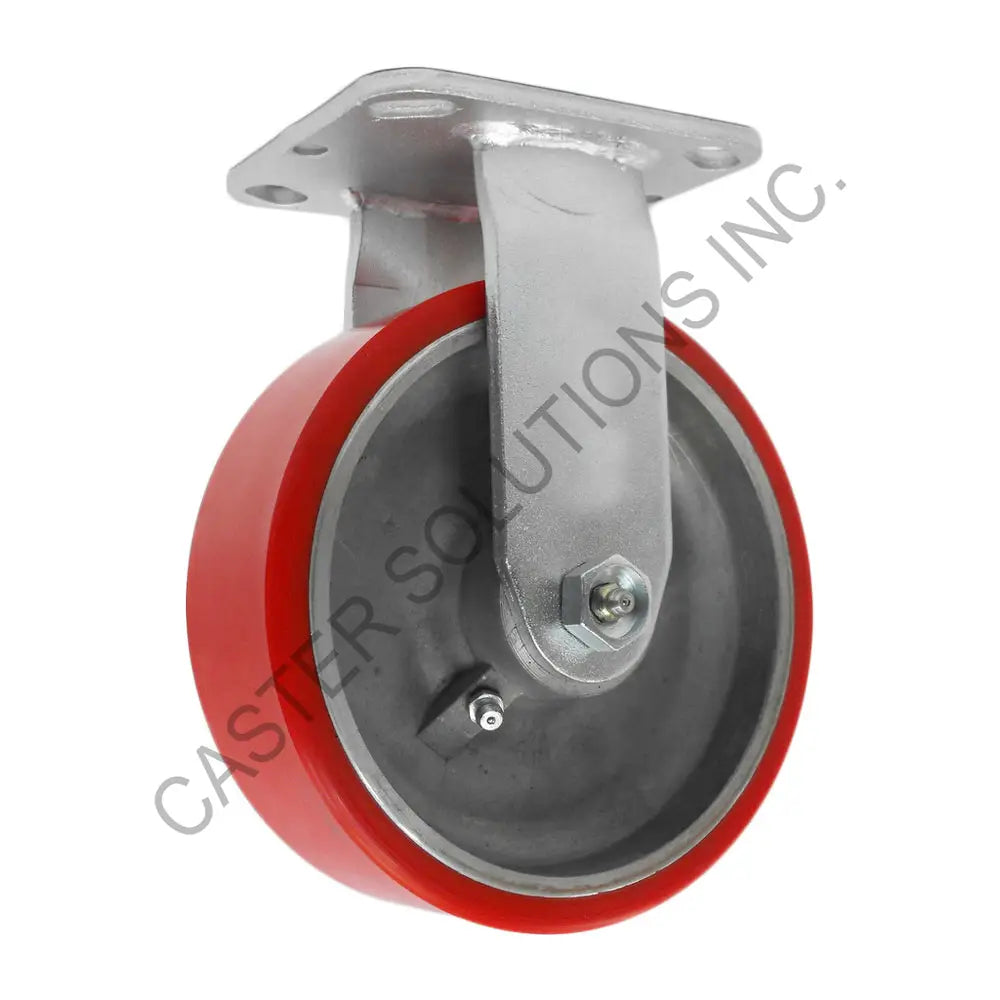

5" x 2" Rigid Plate Caster with Polyon-Al™ Wheel
28PA50JR6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 900 lb Cap.
5" x 2" Total-locking Plate Caster with Polyon-Al™ Wheel
FTPA50JR6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 1100 lb Cap.
