4" x 2" Total-locking Plate Caster with Phenolic Wheel
Our Phenolic wheels are composed of Phenolic mixed with macerated canvas. This mixture creates a high capacity and high impact resistant wheel. Phenolic wheels have decades of proven reliability in the industry. Hard tread rolls easily, provides good concrete floor protection and is quieter than steel wheels. Resistant to oil, grease and solvents. Non-metallic & non-sparking.
Very popular wheel for use in manufacturing, warehouses and bakeries.
The 27/28/DT/FT Series is our most popular series of medium duty casters. This series offers matching swivel, rigid, single-pedal total-locking and dual-pedal total-locking casters.
Specifications
| Caster Type | Total-locking |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 4.0" |
| Tread Width | 2.0" |
| Wheel Name | Phenolic |
| Wheel Tread Material | Phenolic |
| Wheel Core Material | Phenolic |
| Tread Profile | Flat |
| Wheel Color | Black |
| Wheel Durometer | Shore D 90 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Overall Height | 5.625" |
| Load Capacity | 800 lb |
| Duty Rating | Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.

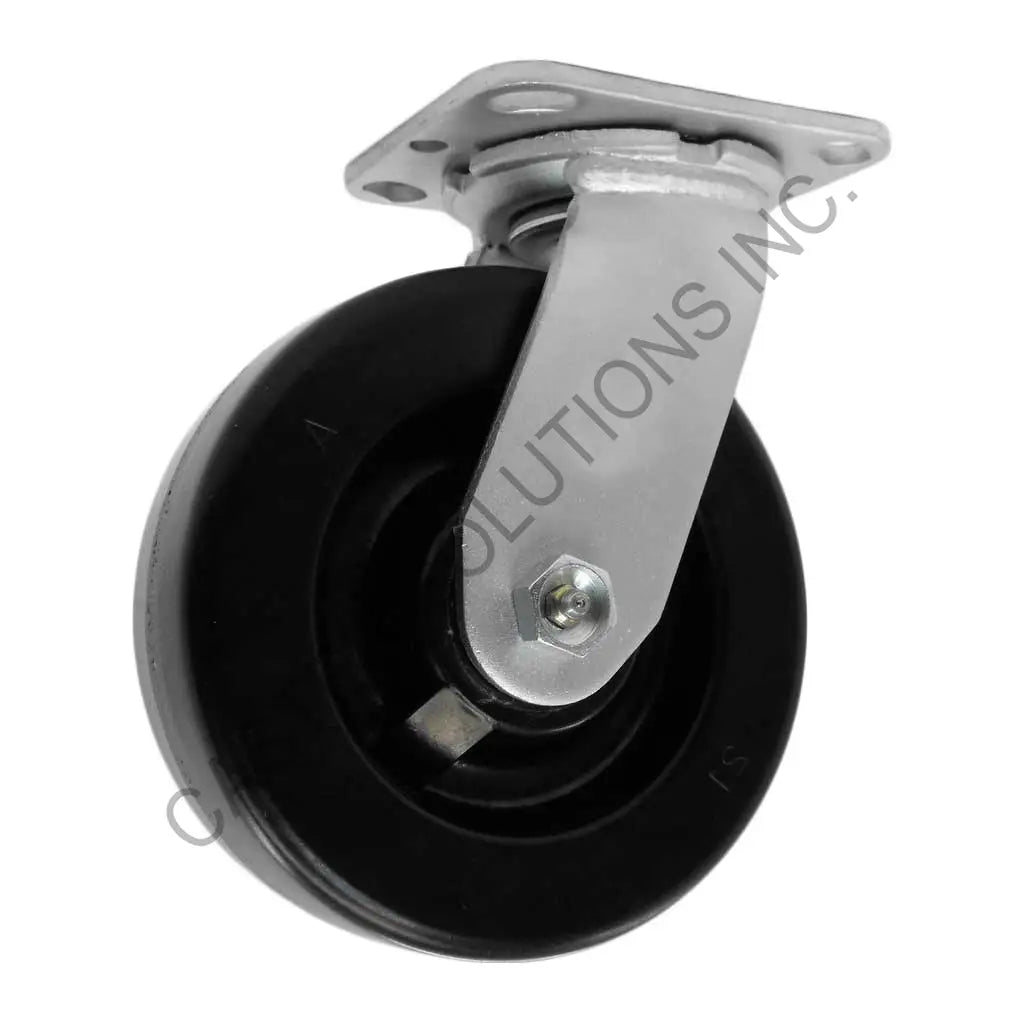

4" x 2" Swivel Plate Caster with Phenolic Wheel
27PH40JB6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 800 lb Cap.

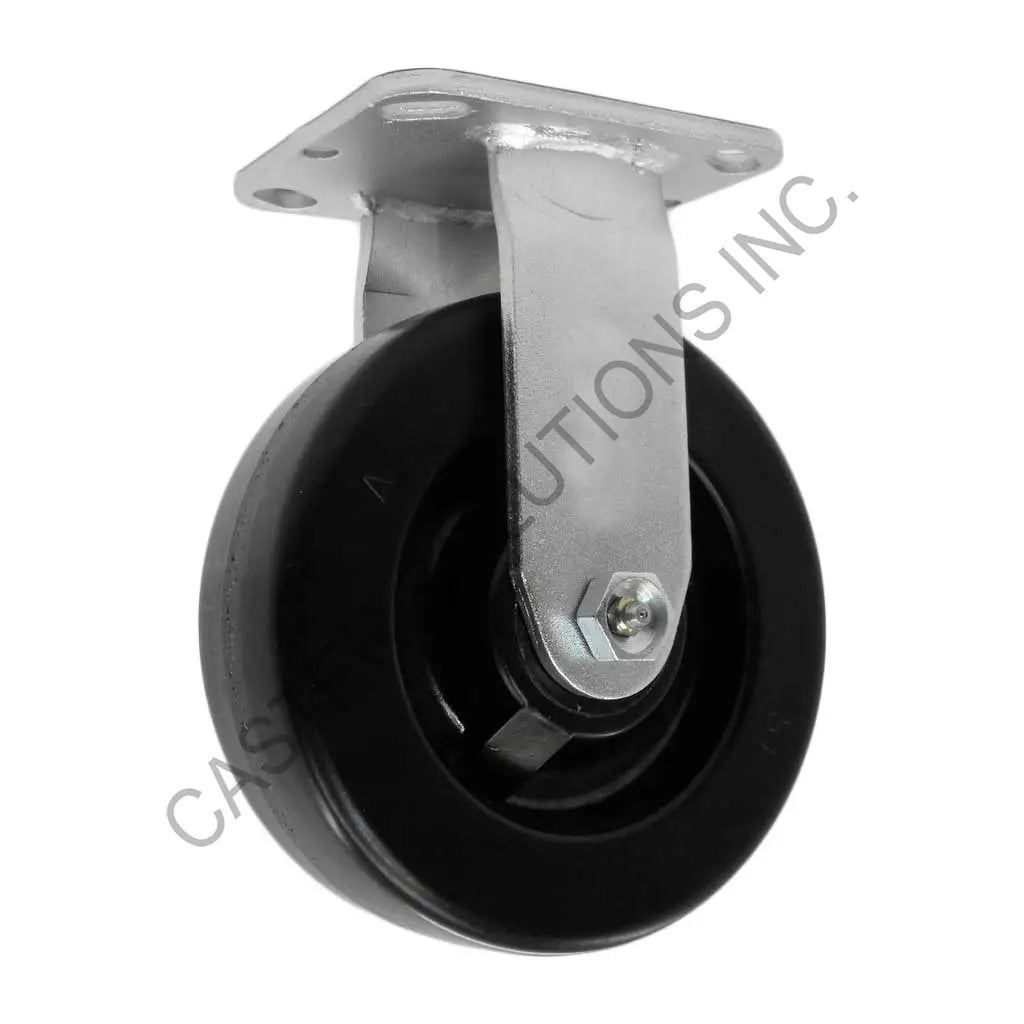

4" x 2" Rigid Plate Caster with Phenolic Wheel
28PH40JB6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 800 lb Cap.
4" x 2" Total-locking Plate Caster with Phenolic Wheel
DTPH40JB6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 800 lb Cap.

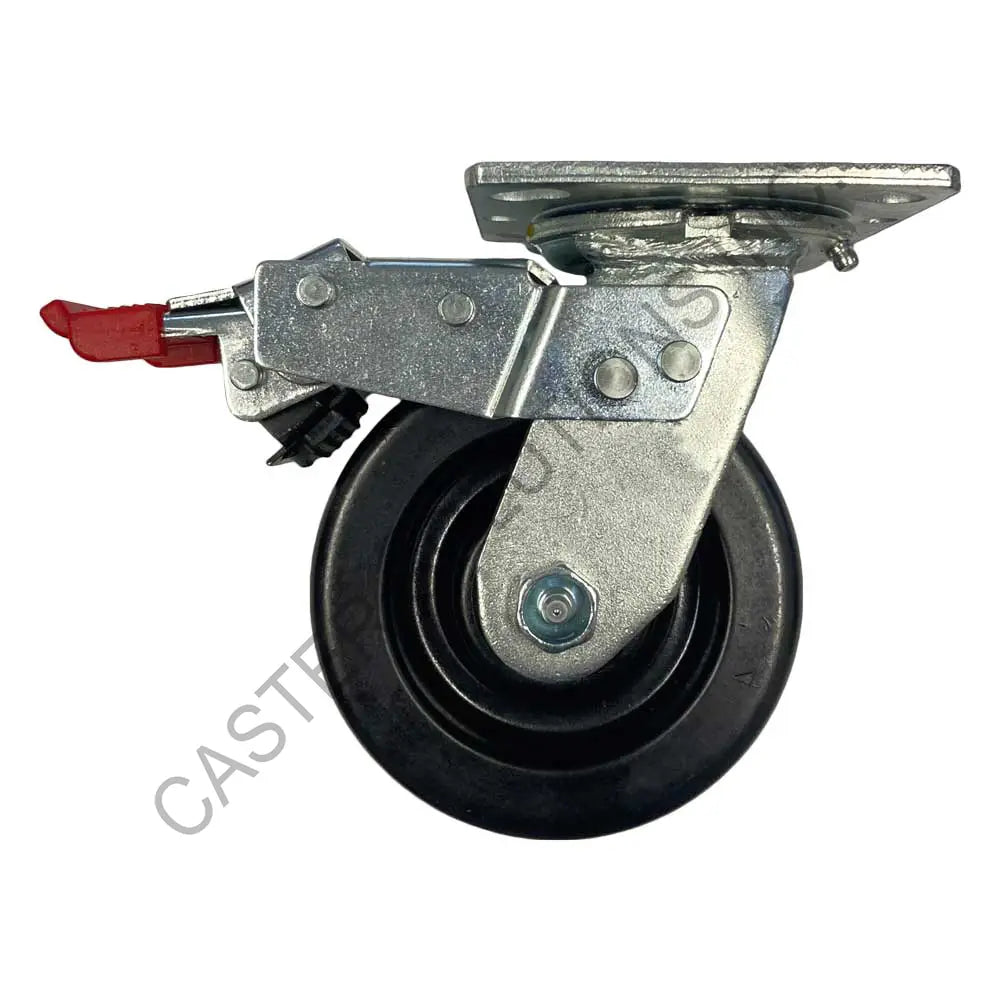

4" x 2" Total-locking Plate Caster with Phenolic Wheel
FTPH40JB6017YY
- 4" x 4-1/2" Plate
- Sealed Precision Ball Bearing
- 800 lb Cap.
