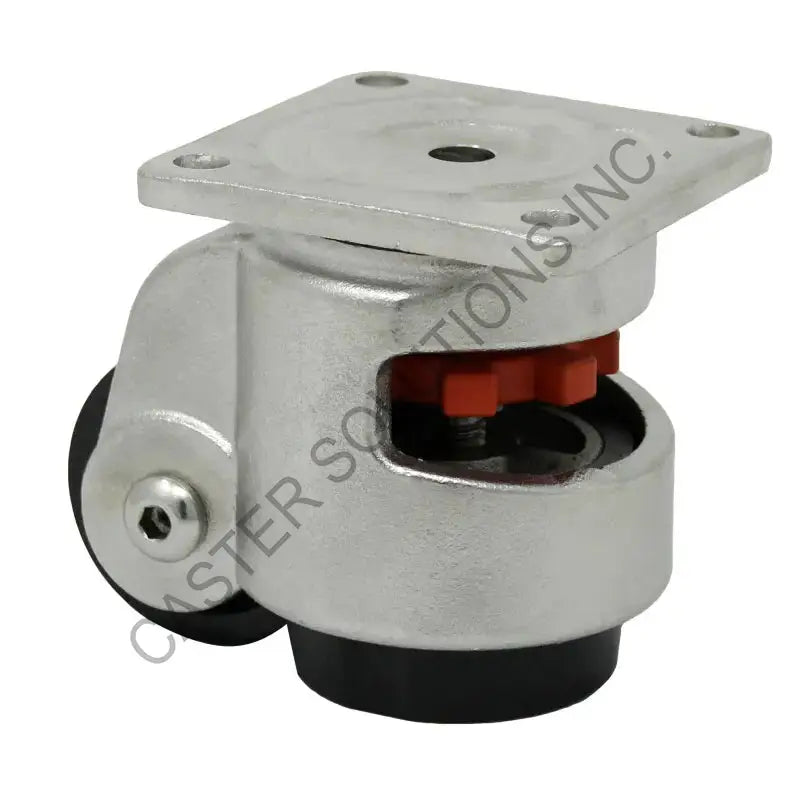

3.23" OAH Stainless Swivel Plate Caster with Nylon Wheel
Solid injection-molded Nylon wheel offers high load capacity, low rolling resistance, and resistance to most industrial chemicals, oils, and solvents. Non-marking on hard surfaces. Best suited to smooth, clean floors — Nylon transmits shock and vibration to the chassis, so it is not recommended for rough or uneven terrain.
Our LVS Series consists of stainless steel swivel casters with an integrated leveling mechanism, allowing equipment to be raised off its wheels and rest on a stable footpad when stationary. The body is die-cast from S304 stainless steel with a swivel head from S316L stainless steel and an S304 stainless steel axle, with an electrolytic shining finish for corrosion resistance and appearance. Internal leveling mechanism with a dial-and-rubber-pad design allows equipment to be raised off its wheels and rest on a stable footpad when stationary. Suited for clean-room, food-processing, marine, medical, and any environment where corrosion resistance is critical.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 2.87" x 2.87" |
| Bolt Hole Pattern | 2.28" x 2.28" |
| Wheel Diameter | 2.0" |
| Tread Width | 0.88" |
| Wheel Name | Nylon |
| Wheel Tread Material | Nylon |
| Wheel Core Material | Nylon |
| Tread Profile | Crowned |
| Wheel Color | Black |
| Wheel Durometer | Shore D 85 (+/-5) |
| Bearing Type | Plain Bore |
| Non-Marking Tread | Yes |
| Overall Height | 3.23" |
| Adjustment Range | '+0.47" |
| Load Capacity | 600 lb |
| Duty Rating | Light-Medium Duty |
