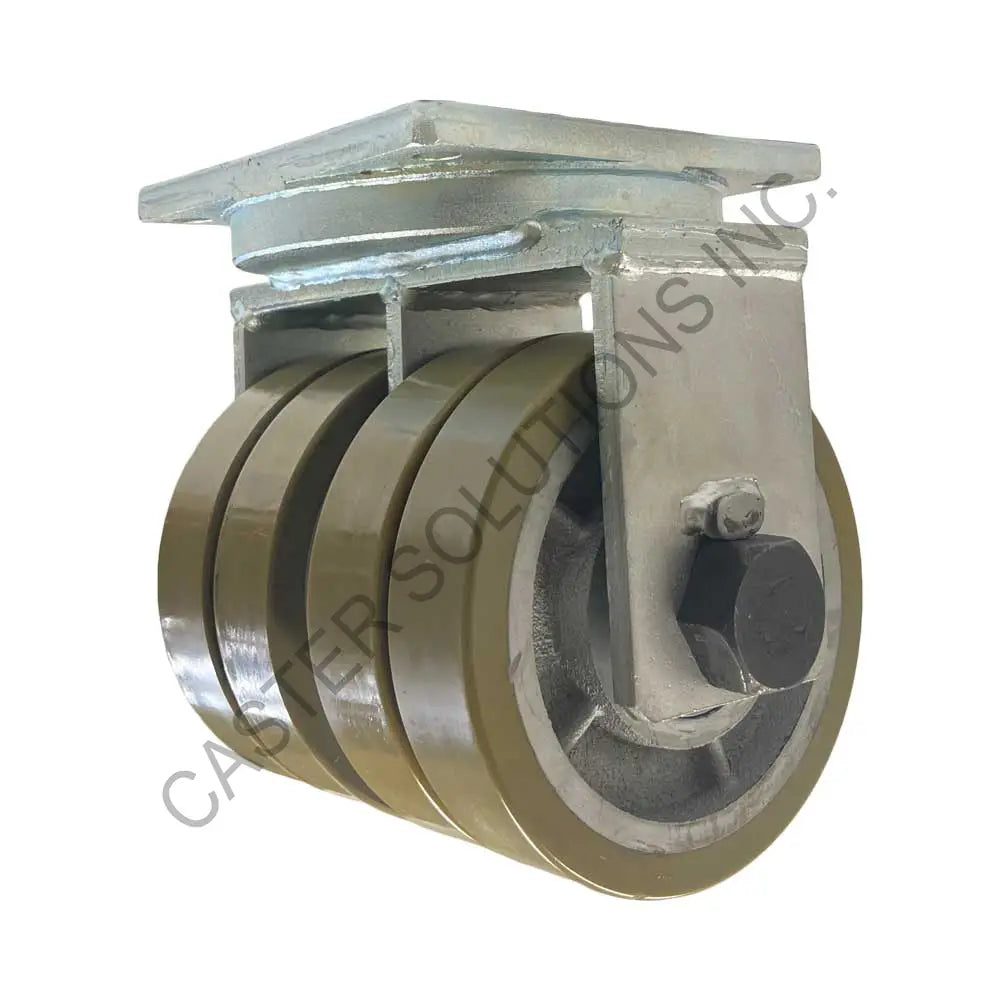

8" x 4" Rigid Plate Caster with Dual Ergo Wheel
Our Dual-Ergo wheels were designed to replace tradional single wheels for better maneuvering while not widening the footprint and swivel radius. These dual wheels alone have shown a minimum 35-50% push/pull force reduction. As well as proven to reduce rolling resistance and helps with the swiveling action. Each wheel has 2 independent rolling wheels and are maintenance free for the life of the wheel. They feature large sealed precision ball bearings and a non-marking tread.
Great for manufacturing plants, tow lines and where stringent push/pull forces are required. Commonly used at airline manufacturers for working platforms next to the airplane on the assembly line.
The D4/R4 Series offers matching extreme duty swivel and rigid kingpinless casters with capacities up to 40,000 lb. Constructed from hot forged ASTM1045 steel with 1/2″ thick double-welded legs and a 1-1/4″ Grade 8 axle bolt. Features a forged 5/8″ thick swivel head with a 7″ precisely machined kingpinless raceway using 3/4″ hardened ball bearings. The swivel casters feature a forged 5/8" thick swivel head and a 7" precisely machined kingpinless raceway of 3/4" hardened ball bearings.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 8-1/2" x 8-1/2" |
| Bolt Hole Pattern | 7" x 7" |
| Wheel Diameter | 8.0" |
| Tread Width | 4.0" |
| Wheel Name | Dual Ergo |
| Wheel Tread Material | Polyurethane |
| Wheel Core Material | Aluminum |
| Tread Profile | Flat |
| Wheel Color | Gray |
| Wheel Durometer | Shore D 65 |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 11.0" |
| Load Capacity | 9400 lb |
| Duty Rating | Extreme Duty |
