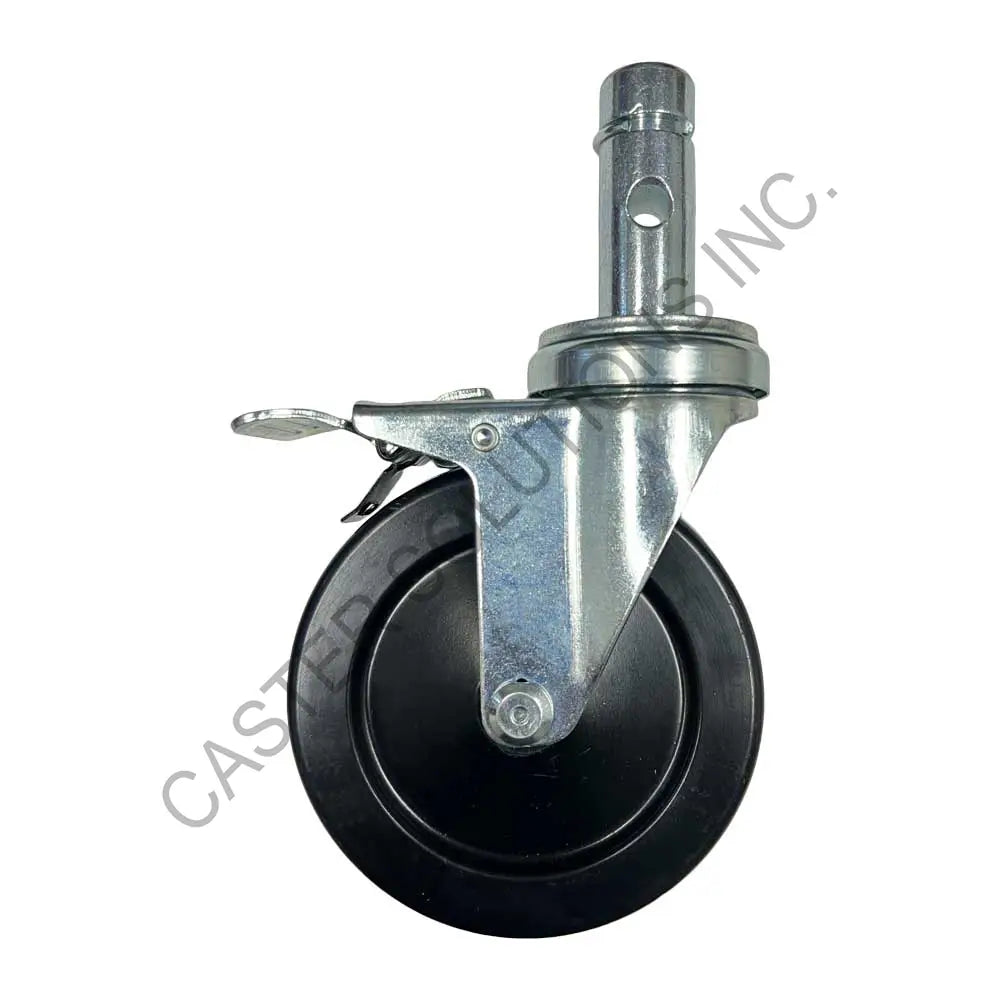

5" x 1.25" Total-locking Scaffold Stem Caster with Hard Rubber Wheel
Solid hard rubber tread and core offers high impact strength. An economic wheel that rolls easily. Nylon bearing sleeve molded into the wheel core for improved rollability. Hard rubber may leave floor marks on some surfaces.
Our Scaffolding Series consists of total-locking scaffold stem casters built for use on scaffolding, mobile platforms, and temporary structures in construction, maintenance, and industrial environments. Each caster includes a cross-drilled stem that bolts directly through the leg of a scaffold tube, with a total-locking pedal brake that simultaneously locks both wheel rotation and swivel motion for stable platform positioning. The SC chassis uses deep toothed gears that lock the swivel and wheel together, an integrated brake arm with fork legs, and a zinc-plated finish.
WARNING: DO NOT RIDE ROLLING TOWERS. Check that the caster is securely locked before climbing scaffolding. Do not attempt to use if the caster is faulty or has not been properly maintained.
Specifications
| Caster Type | Total-locking |
|---|---|
| Mount Type | Stem |
| Stem Size | 1.075" × 2.75" - .44" Hole × 2.00" High |
| Wheel Diameter | 5.0" |
| Tread Width | 1.25" |
| Wheel Name | Hard Rubber |
| Wheel Tread Material | Rubber |
| Wheel Core Material | Rubber |
| Tread Profile | Flat |
| Wheel Color | Black |
| Wheel Durometer | Shore D 55 (+/-5) |
| Bearing Type | Plain Bore |
| Overall Height | 6.25" |
| Load Capacity | 250 lb |
| Duty Rating | Light Duty |
