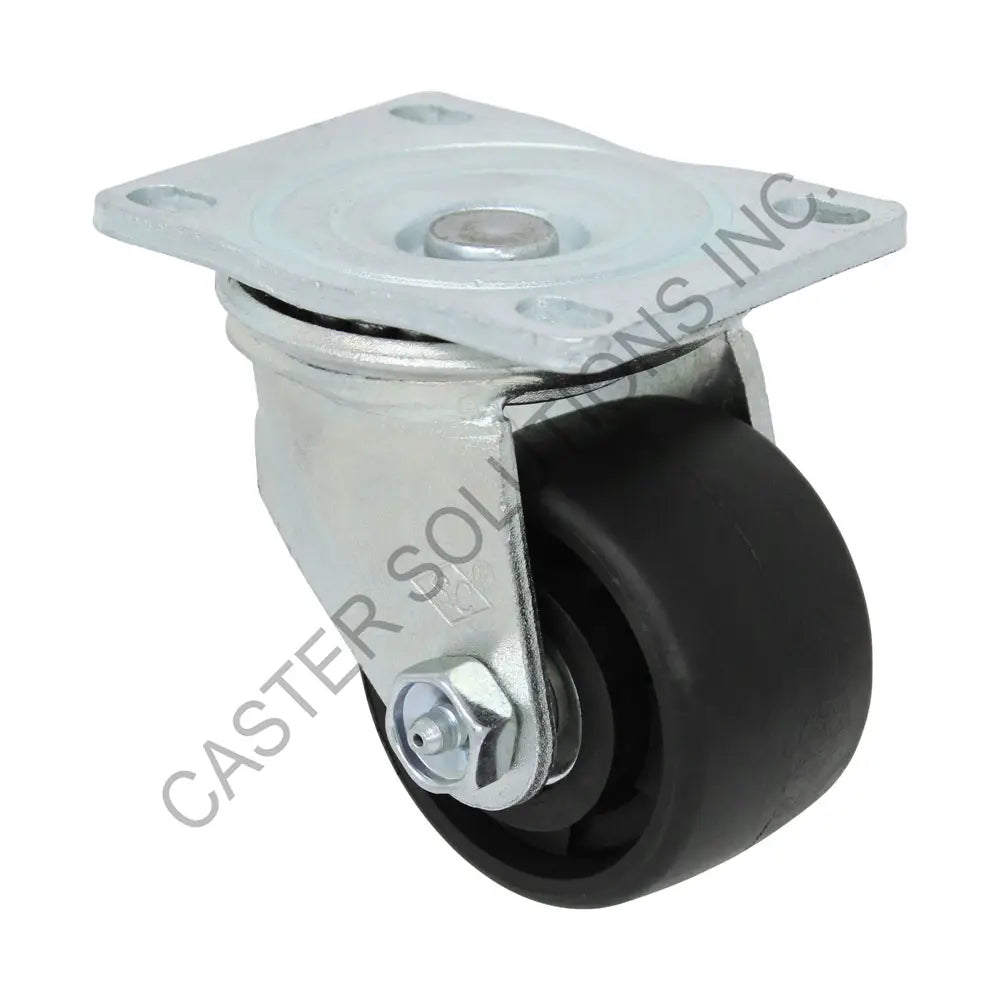

3" x 1.75" Swivel Plate Caster with Polyolefin Wheel
Our Polyolefin wheels are solid injection molded. High shock load, impact & abrasion resistance. Economical & lightweight with high weight capacities. 100% washable and impervious to water. Highly resistant to organic solvents, oil, grease, most chemicals, acids and cleaning solutions as well. Both white and black materials are non-marking.
Wide range of applications including bakeries, meat processing/packing plants, dairies, food processing plants, laundries and supermarkets.
Our 05/06 Series consists of matching low-profile swivel and rigid casters, available in both plate and stem mount options. Engineered for applications with strict overall height constraints, this series allows equipment to maintain a lower center of gravity without sacrificing load-carrying capability for its size. The compact design makes it ideal for use in tight-clearance environments where standard casters would increase overall height beyond acceptable limits.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 3.0" |
| Tread Width | 1.75" |
| Wheel Name | Polyolefin |
| Wheel Tread Material | Polyolefin |
| Wheel Core Material | Polyolefin |
| Tread Profile | Round |
| Wheel Color | Black |
| Wheel Durometer | Shore D 70 (+/-5) |
| Bearing Type | Roller Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 4.15625" |
| Load Capacity | 500 lb |
| Duty Rating | Light-Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.
3" x 1.75" Swivel Plate Caster with Polyolefin Wheel
05PO30IB0817YY
- 4" x 4-1/2" Plate
- Roller Bearing
- 500 lb Cap.
3" x 1.75" Rigid Plate Caster with Polyolefin Wheel
06PO30IB0817YY
- 4" x 4-1/2" Plate
- Roller Bearing
- 500 lb Cap.
