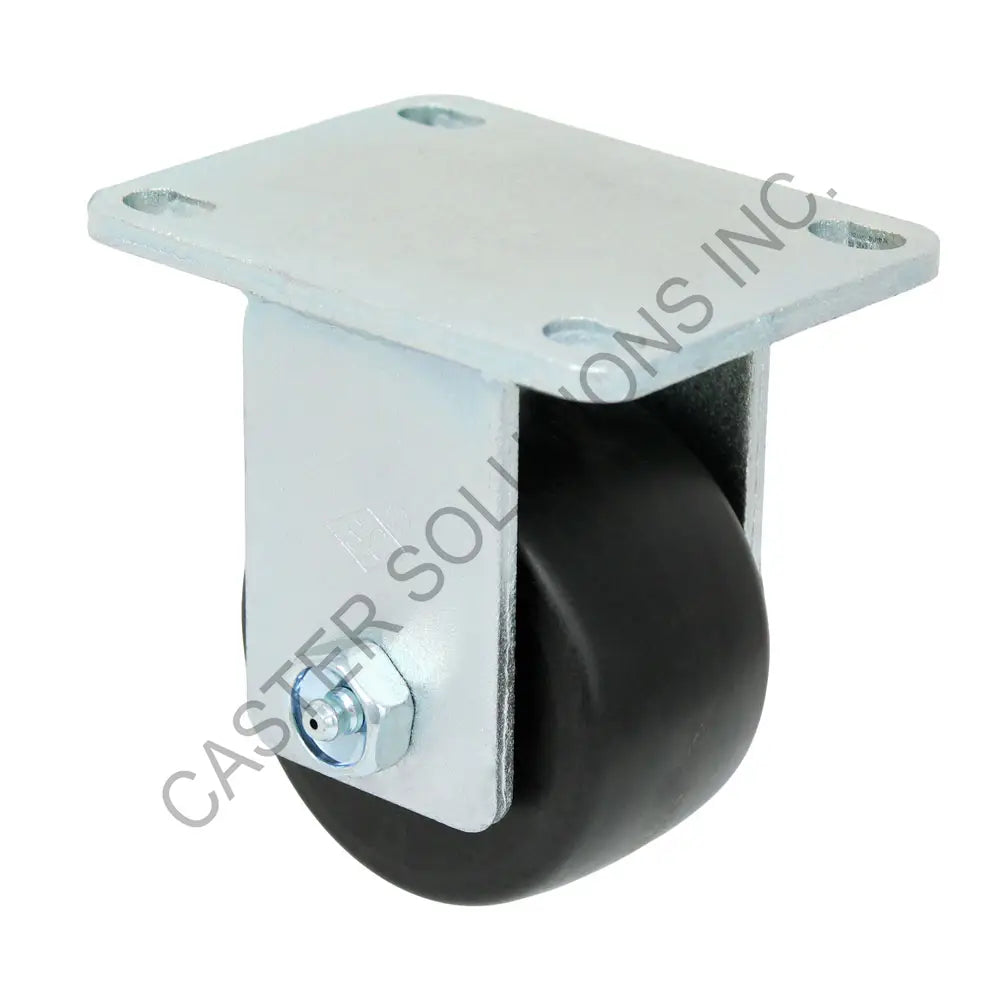

3" x 1.75" Rigid Plate Caster with Polyolefin Wheel
Our Polyolefin wheels are solid injection molded. High shock load, impact & abrasion resistance. Economical & lightweight with high weight capacities. 100% washable and impervious to water. Highly resistant to organic solvents, oil, grease, most chemicals, acids and cleaning solutions as well. Both white and black materials are non-marking.
Wide range of applications including bakeries, meat processing/packing plants, dairies, food processing plants, laundries and supermarkets.
Our 05/06 Series consists of matching low-profile swivel and rigid casters, available in both plate and stem mount options. Engineered for applications with strict overall height constraints, this series allows equipment to maintain a lower center of gravity without sacrificing load-carrying capability for its size. The compact design makes it ideal for use in tight-clearance environments where standard casters would increase overall height beyond acceptable limits.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-5/8" Slotted to 3" x 3" |
| Wheel Diameter | 3.0" |
| Tread Width | 1.75" |
| Wheel Name | Polyolefin |
| Wheel Tread Material | Polyolefin |
| Wheel Core Material | Polyolefin |
| Tread Profile | Round |
| Wheel Color | Black |
| Wheel Durometer | Shore D 70 (+/-5) |
| Bearing Type | Roller Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 4.15625" |
| Load Capacity | 500 lb |
| Duty Rating | Light-Medium Duty |
