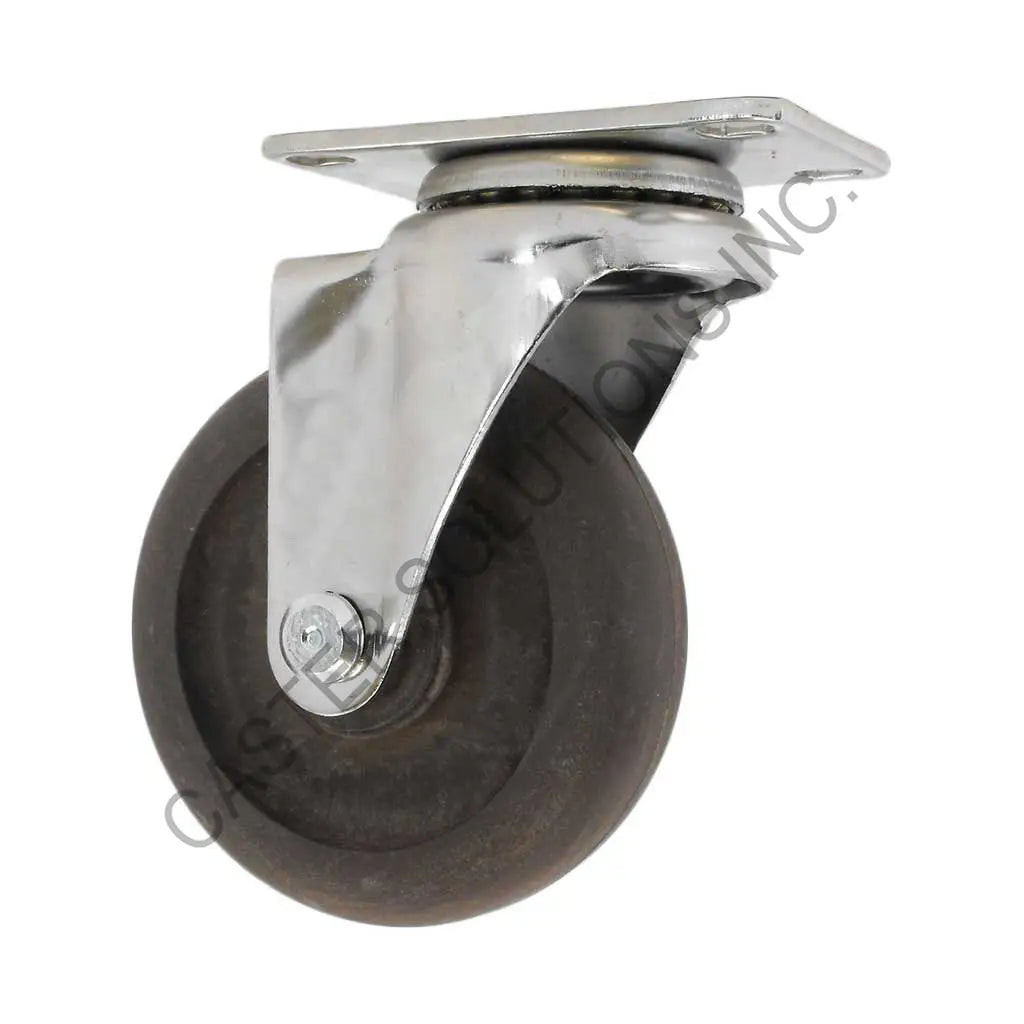

3" x 1.25" Stainless Swivel Plate Caster with Brimstone® Wheel
Our thermo compound Brimstone® wheel is made to withstand high temperatures. Superior abrasion and impact resistance. Excellent resistance to oil, grease, salt, most acids and water. Features high capacities and a long service life. Hard tread rolls exceptionally easy.
Perfect for powder coating booths and bakeries.
The 15/16 series is a stainless steel alternative to our 13/14 series. The casters in our 15/16 series are constructed of S304 stainless steel. These casters are NSF listed and ROHS compliant.
Specifications
| Caster Type | Swivel |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" - 3" |
| Wheel Diameter | 3.0" |
| Tread Width | 1.25" |
| Wheel Name | Brimstone® |
| Wheel Tread Material | Polymer |
| Wheel Core Material | Polymer |
| Tread Profile | Crowned |
| Wheel Color | Brown |
| Wheel Durometer | Shore D 85 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 4.125" |
| Load Capacity | 300 lb |
| Duty Rating | Light-Medium Duty |
