3" x 1.25" Stainless Rigid Plate Caster with Brimstone® Wheel
Our thermo compound Brimstone® wheel is made to withstand high temperatures. Superior abrasion and impact resistance. Excellent resistance to oil, grease, salt, most acids and water. Features high capacities and a long service life. Hard tread rolls exceptionally easy.
Perfect for powder coating booths and bakeries.
The 15/16 series is a stainless steel alternative to our 13/14 series. The casters in our 15/16 series are constructed of S304 stainless steel. These casters are NSF listed and ROHS compliant.
Specifications
| Caster Type | Rigid |
|---|---|
| Mount Type | Top Plate |
| Top Plate Size | 2-3/8" x 3-5/8" |
| Bolt Hole Pattern | 1-3/4" x 2-7/8" - 3" |
| Wheel Diameter | 3.0" |
| Tread Width | 1.25" |
| Wheel Name | Brimstone® |
| Wheel Tread Material | Polymer |
| Wheel Core Material | Polymer |
| Tread Profile | Crowned |
| Wheel Color | Brown |
| Wheel Durometer | Shore D 85 ( /-5) |
| Bearing Type | Sealed Precision Ball Bearing |
| Non-Marking Tread | Yes |
| Overall Height | 4.125" |
| Load Capacity | 300 lb |
| Duty Rating | Light-Medium Duty |
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Quick Order
Matching Casters
Casters that can be used on the same application. These casters match all specifications except caster type.

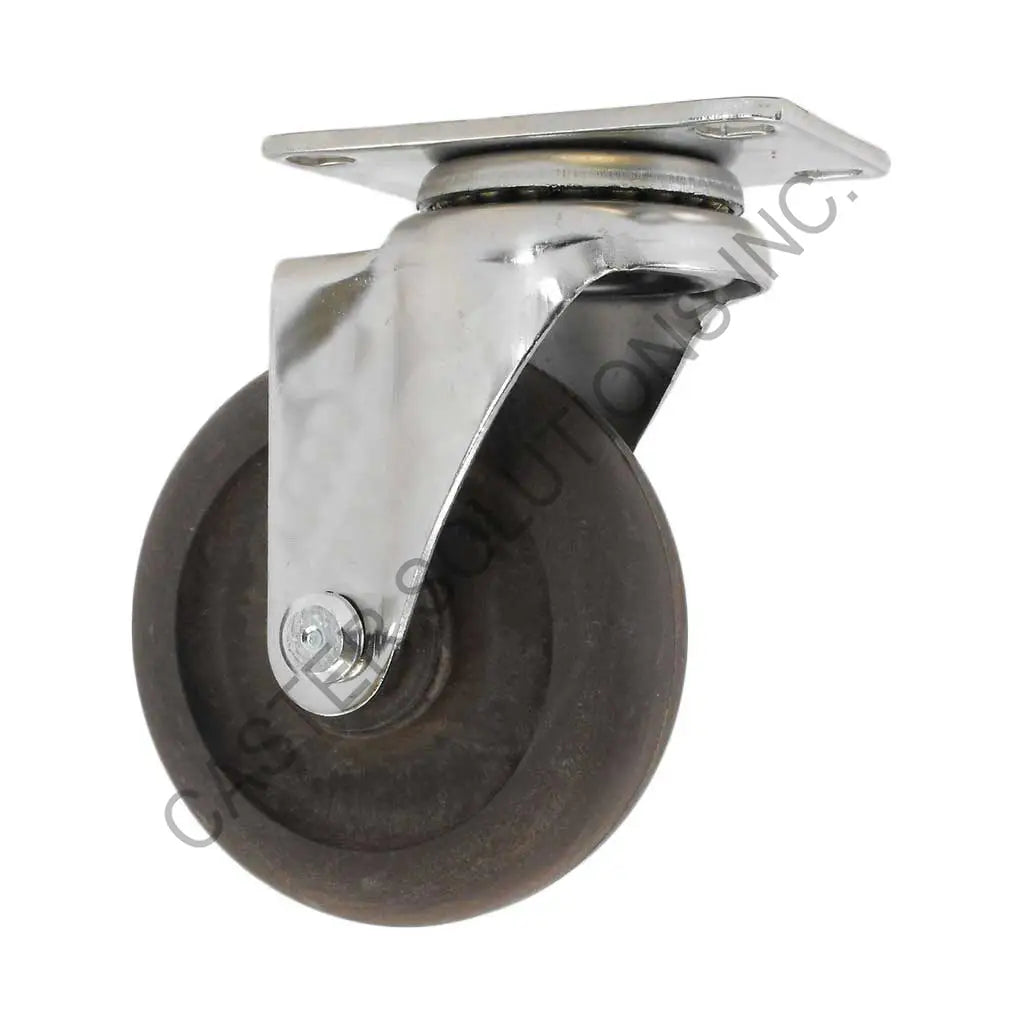

3" x 1.25" Stainless Swivel Plate Caster with Brimstone® Wheel
15GN30GQ9706YY
- 2-3/8" x 3-5/8" Plate
- Sealed Precision Ball Bearing
- 300 lb Cap.

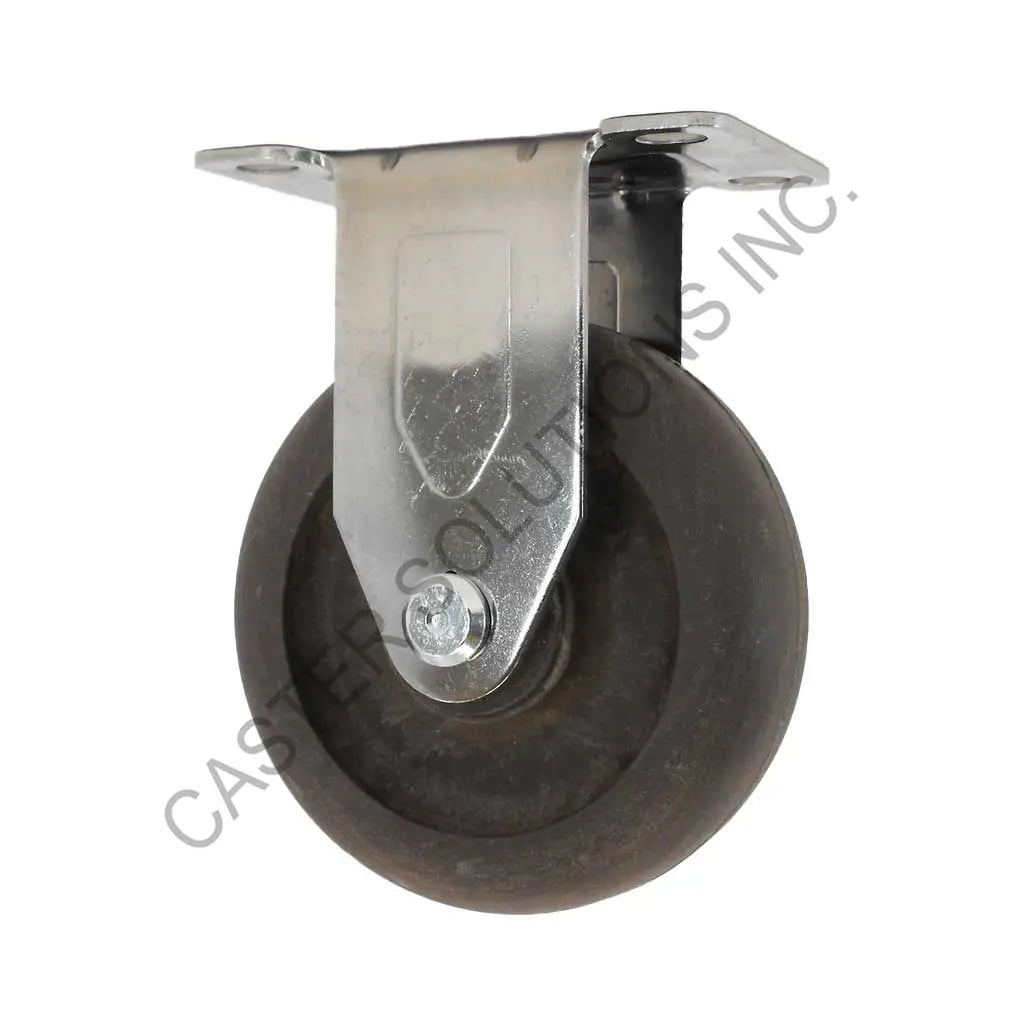

3" x 1.25" Stainless Rigid Plate Caster with Brimstone® Wheel
16GN30GQ9706YY
- 2-3/8" x 3-5/8" Plate
- Sealed Precision Ball Bearing
- 300 lb Cap.
